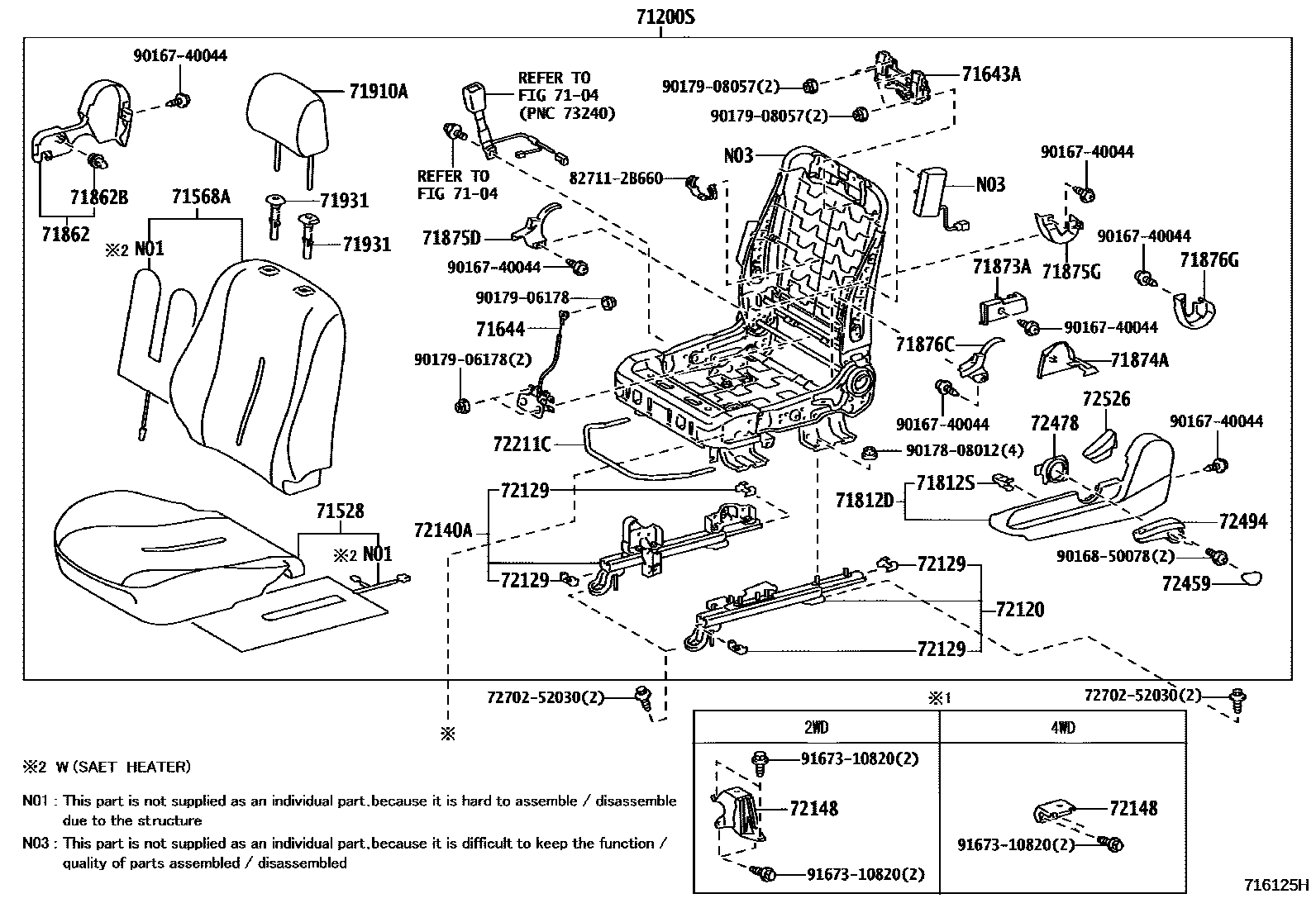

FRONT SEAT & SEAT TRACK

0001 1DRIVER SIDE 0002 1PASSENGER SIDE 0003 1DRIVER SIDE 0004 1PASSENGER SIDE

7104

71200SSEAT ASSY, FRONT LH

main71020-52D10-B0iNLP11#,NSP110..RHD..R201004-201008

DK.GRAY,TRIM1#

sub71200-5DA80

main71020-52D40-B0iNLP11#,NSP110..LHD..R201004-201008

DK.GRAY,TRIM1#

sub71200-5DB10

main71020-52D60-B0iNLP11#,NSP110..LHD..N201004-201008

DK.GRAY,TRIM1#

sub71200-5DB30

main71020-52D80-B0iNLP11#,NSP110..RHD..N201004-201008

DK.GRAY,TRIM1#

sub71200-5DB50

main71020-52T90-B1iNLP11#,NSP110..RHD..N201108-201205

DK.GRAY,TRIM1#

sub71020-52T91

main71020-52T91-B0iNLP11#,NSP110..RHD..N201206-201309

DK.GRAY,TRIM1#

sub71020-52T92

main71020-52T92-B0iNLP11#,NSP110..RHD..N201310-201405

DK.GRAY,TRIM1#

main71020-52U00-B1iNLP11#,NSP110..LHD..N201108-201205

DK.GRAY,TRIM1#

sub71020-52U01

main71020-52U01-B0iNLP11#,NSP110..LHD..N201206-201309

DK.GRAY,TRIM1#

sub71020-52U02

main71020-52U02-B0iNLP11#,NSP110..LHD..N201310-201604

DK.GRAY,TRIM1#

main71200-52J90-B1iNLP11#,NSP110..RHD..R200901-201004

DK.GRAY,TRIM1#

sub71020-52D10

main71200-52J92-B0iNLP11#,NSP110..RHD..R201008-201205

DK.GRAY,TRIM1#

sub71200-52J93

main71200-52J93-B0iNLP11#,NSP110..RHD..R201206-201309

DK.GRAY,TRIM1#

sub71200-52J94

main71200-52J94-B0iNLP11#,NSP110..RHD..R201310-201405

DK.GRAY,TRIM1#

main71200-5CR40-B2iNLP11#,NSP110..LHD..R200901-201004

DK.GRAY,TRIM1#

sub71020-52D40

main71200-5CR42-B0iNLP11#,NSP110..LHD..R201008-201205

DK.GRAY,TRIM1#

sub71200-5CR43

main71200-5CR43-B0iNLP11#,NSP110..LHD..R201206-201309

DK.GRAY,TRIM1#

sub71200-5CR44

main71200-5CR44-B0iNLP11#,NSP110..LHD..R201310-201604

DK.GRAY,TRIM1#

main71200-5CR60-B2iNLP11#,NSP110..LHD..N200901-201004

DK.GRAY,TRIM1#

sub71020-52D60

main71200-5CR62-B0iNLP11#,NSP110..LHD..N201008-201108

DK.GRAY,TRIM1#

main71200-5CR80-B1iNLP11#,NSP110..RHD..N200901-201004

DK.GRAY,TRIM1#

sub71020-52D80

main71200-5CR82-B0iNLP11#,NSP110..RHD..N201008-201108

DK.GRAY,TRIM1#

71528PAD, FRONT SEAT CUSHION W/COVER, LH

main71528-52D90-B1iNLP11#,NSP110..RHD..N200901-201008

DK.GRAY,TRIM1#

sub71528-52D92

main71528-52D91-B2iNLP11#,NSP110..RHD..N201008-201108

GRAY,TRIM1#

main71528-52P50-B1iNLP11#,NSP110..LHD..R200901-201008

DK.GRAY,TRIM1#

sub71528-52P52

main71528-52P51-B2iNLP11#,NSP110..LHD..R201008-201604

DK.GRAY,TRIM1#

main71528-52P70-B1iNLP11#,NSP110..LHD..N200901-201008

DK.GRAY,TRIM1#

sub71528-52P72

main71528-52P71-B2iNLP11#,NSP110..LHD..N201008-201108

GRAY,TRIM1#

main71528-52Q50-B1iNLP11#,NSP110..RHD..R200901-201008

DK.GRAY,TRIM1#

sub71528-52Q52

main71528-52Q51-B2iNLP11#,NSP110..RHD..R201008-201405

DK.GRAY,TRIM1#

main71528-52T30-B1iNLP11#,NSP110..RHD..N201108-201405

GRAY,TRIM1#

main71528-52T40-B1iNLP11#,NSP110..LHD..N201108-201604

GRAY,TRIM1#

71568APAD, FRONT SEATBACK W/COVER, LH

main71568-52M50-B0iNLP11#,NSP110..N200901-201008

DK.GRAY,TRIM1#

sub71568-52M52

main71568-52M51-B1iNLP11#,NSP110..N201008-201108

GRAY,TRIM1#

main71568-52N50-B0iNLP11#,NSP110..R200901-201008

DK.GRAY,TRIM1#

sub71568-52N52

main71568-52N51-B1iNLP11#,NSP110..R201008-201604

DK.GRAY,TRIM1#

main71568-52S40-B1iNLP11#,NSP110..N201108-201604

GRAY,TRIM1#

71643AUNIT, ACTIVE HEADREST, UPR

main71643-12011iNLP11#,NSP110200901-201004

71644UNIT, ACTIVE HEADREST, LWR

main71644-12030iNLP11#,NSP110200901-201004

71812DSHIELD, FRONT SEAT CUSHION, LH

main71812-52190-B2iNLP11#,NSP110..RHD200901-201405

DK.GRAY,TRIM1#

main71812-52200-B0iNLP11#,NSP110..LHD200901-201604

DK.GRAY,TRIM1#

71812SCLIP, FRONT SEAT CUSHION SHIELD, LH

main90467-10203iNLP11#,NSP110..N200901

71862SHIELD, FRONT SEAT CUSHION, INNER LH

main71862-52140-B2iNLP11#,NSP110..RHD200901-201405

DK.GRAY,TRIM1#

sub71862-52140

main71862-52150-B0iNLP11#,NSP110..LHD200901-201604

DK.GRAY,TRIM1#

71862BCLIP(FOR FRONT SEAT SHIELD, LH)

main71769-33020iNLP11#,NSP110..R200901

71873SHIELD, FRONT SEAT CUSHION, LOWER RH

main71873-52220-B0iNLP11#,NSP110..RHD200901-201405

DK.GRAY,TRIM1#

main71874-52200-B0iNLP11#,NSP110..LHD200901-201604

DK.GRAY,TRIM1#

71873ASHIELD, FRONT SEAT CUSHION, LOWER

main71873-52190-B0iNLP11#,NSP110..RHD200901-201405

DK.GRAY,TRIM1#

main71874-52120-B0iNLP11#,NSP110..LHD200901-201604

DK.GRAY,TRIM1#

sub71874-52110

71874SHIELD, FRONT SEAT CUSHION, LOWER LH

main71873-52210-B0iNLP11#,NSP110..LHD200901-201604

DK.GRAY,TRIM1#

main71874-52210-B0iNLP11#,NSP110..RHD200901-201405

DK.GRAY,TRIM1#

71874ASHIELD, FRONT SEAT CUSHION, LOWER LH

main71873-52100-B0iNLP11#,NSP110..LHD200901-201604

DK.GRAY,TRIM1#

main71874-52070-B0iNLP11#,NSP110..RHD200901-201405

DK.GRAY,TRIM1#

71875DCOVER, RECLINING ADJUSTER OUTSIDE, RH

main71875-52090-B0iNLP11#,NSP110200901-201604

DK.GRAY,TRIM1#

sub71875-52090

71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)

main71875-52170-B0iNLP11#,NSP110200901-201604

DK.GRAY,TRIM1#

71876COVER, RECLINING ADJUSTER INSIDE, LH

main71876-52090-B0iNLP11#,NSP110200901-201604

DK.GRAY,TRIM1#

sub71876-52090

71876CCOVER, RECLINING ADJUSTER INSIDE, LH

main71876-52090-B0iNLP11#,NSP110200901-201604

DK.GRAY,TRIM1#

sub71876-52090

71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)

main71876-52160-B0iNLP11#,NSP110200901-201604

DK.GRAY,TRIM1#

71910AHEADREST ASSY, FRONT SEAT

main71910-52680-B1iNLP11#,NSP110200901-200911

DK.GRAY,TRIM1#

sub71910-52C40

main71910-52D60-B0iNLP11#,NSP110200911-201008

DK.GRAY,TRIM1#

sub71910-52C50

main71910-52D61-B0iNLP11#,NSP110..R;NLP110,NSP110..LHD..N201008-201604

DK.GRAY,TRIM1#

71931SUPPORT, FRONT SEAT HEADREST

main71930-44020-B0iNLP115..N;NLP110,NSP110..RHD..N200901-201604

W(LOCK),DK.GRAY,TRIM1#

sub71930-44020

sub71930-02370

main71931-47010-B2iNLP11#,NSP110..R;NLP110,NSP110..LHD..N200901-201604

W/O(LOCK),DK.GRAY,TRIM1#

sub71931-47010

sub71931-42020

72120TRACK ASSY, FRONT SEAT, OUTER LH

main72120-52150iNLP11#,NSP110200901-201003

sub72120-52151

main72120-52151iNLP11#,NSP110201004

72129PROTECTOR, SEAT TRACK LOWER RAIL, NO.1

main72129-52030iNLP11#,NSP110200901-201004

72140ATRACK ASSY, FRONT SEAT,INNER LH

main72140-52140iNLP11#,NSP110..RHD200901-201003

sub72140-52141

main72140-52141iNLP115..RHD..R201008-201310

main72140-52260iNLP11#,NSP110..LHD200901-201003

sub72140-52261

main72140-52261iNLP110,NSP110..LHD201008-201604

72148BRACKET, FRONT INNER SEAT TRACK, LOWER REAR LH

main72148-52010iNLP110,NSP110200901-201006

sub72148-52060

main72148-52020iNLP115200902-201006

sub72148-52070

main72148-52060iNLP110,NSP110201007

main72148-52070iNLP115201007-201405

72211HANDLE, SEAT TRACK ADJUSTING

main72211-52030iNLP11#,NSP110200901-200906

sub72211-52110

main72211-52110iNLP11#,NSP110200906

72211CHANDLE, SEAT TRACK ADJUSTING

main72211-52050iNLP11#,NSP110200901-200906

sub72212-52030

main72212-52030iNLP11#,NSP110200906

72459CAP, VERTICAL SEAT ADJUSTER KNOB

main72459-60010-B2iNLP11#,NSP110..LHD200901-201604

DK.GRAY,TRIM1#

sub72459-60010

sub72459-60020

72478BUSH, VERTICAL ADJUSTER

main72478-60010iNLP11#,NSP110..LHD200901

72494HANDLE, VERTICAL ADJUSTING, RH

main72494-52020-B0iNLP11#,NSP110..RHD200901-201405

DK.GRAY,TRIM1#

main72494-52030-B0iNLP11#,NSP110..LHD200901-201604

DK.GRAY,TRIM1#

72526HANDLE, RECLINING ADJUSTER RELEASE, LH

main72526-58040-B0iNLP11#,NSP110200901-201604

DK.GRAY,TRIM1#

sub72526-58040

7270252030BRACKET SUB-ASSY, REAR SEATBACK STRIKER

main72702-52030

827112B660WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2B660

9016740044

main90167-40044

9016850078

main90168-50078

9017808012

main90178-08012

9017906178

main90179-06178

9017908057

main90179-08057

9167310820

main91673-10820

39 parts on this diagram · 4 diagrams in section
