LOCK CYLINDER SET

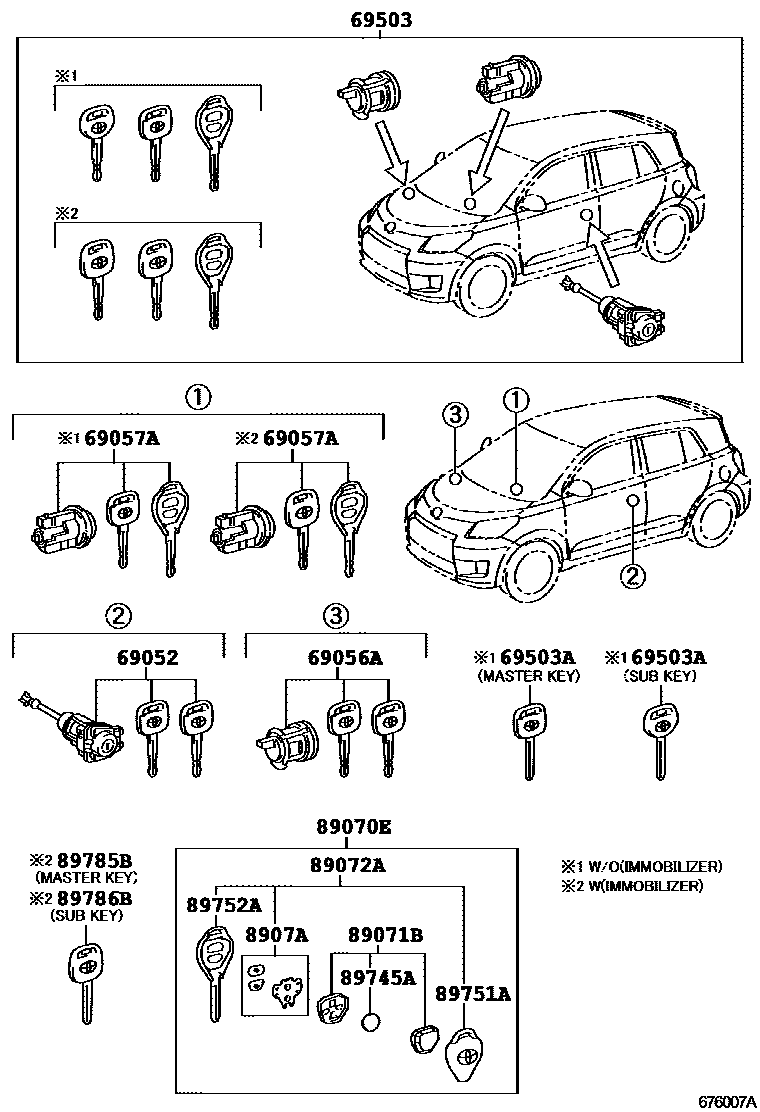

Parts diagram
69052CYLINDER & KEY SET, DOOR LOCK, LH
main69052-52330i200901
69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
main69056-33200i200901-201405
main69056-42100i200901
69057ACYLINDER & KEY SET, IGNITION SWITCH LOCK
main69057-12730i200901-201008
sub69057-28370
main69057-12780i201008
69503CYLINDER SET, LOCK
main69005-52G50i200901-201008
main69005-52G51i201008
main69005-52G60i200901-201405
sub69005-52G70
69503AKEY, BLANK
main69515-52120i200901-201405
MASTER KEY,W(*68)
89070ETRANSMITTER ASSY, DOOR CONTROL
main89070-52450i201008
SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)
sub89070-52451
main89070-52752i200901-201008
SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)
sub89070-52753
89071BMODULE SET, TRANSMITTER SUB-ASSY, DOOR CONTROL
main89071-71051i200901
SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)
sub89071-71052
89072AHOUSING SET, DOOR CONTROL TRANSMITTER
main89072-52470i200901-201008
SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)
main89072-52630i201008
SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)
8907ASWITCH SET, TRANSMITTER
main8907A-71010i200901
SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)
89745ABATTERY, TRANSMITTER
main89745-52030i200901-201405
CR1632
main89745-71010i200901
SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)
main89745-71010i200901
CR2016
89751ACOVER, TRANSMITTER HOUSING
main89751-52140i200901
SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)
89752ACASE, TRANSMITTER HOUSING
main89752-12140i201008
SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)
main89752-28050i200901-201008
SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)
89785BTRANSMITTER, TRANSPONDER KEY MASTER
main89785-60160i200901-201007
GENERAL EXPORT&SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)
main89785-60160i200901-201007
SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)
main89785-60160i200901-201007
DECONTENT PACKAGE
main89785-60210i201008
SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)
main89785-60210i201008
GENERAL EXPORT&SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)
main89785-60210i201008
DECONTENT PACKAGE
89786BTRANSMITTER, TRANSPONDER KEY SUB
main89786-60170i200901-201008
BLANK KEY,GENERAL EXPORT&SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)
main89786-60170i200901-201008
BLANK KEY,SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)
main89786-60170i200901-201008
BLANK KEY
main89786-60170i200901-201008
BLANK KEY,DECONTENT PACKAGE
main89786-60220i201008
BLANK KEY,SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)
main89786-60220i201008
BLANK KEY
main89786-60220i201008
BLANK KEY,GENERAL EXPORT&SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)
main89786-60220i201008
BLANK KEY,DECONTENT PACKAGE

14 parts on this diagram · 3 diagrams in section
