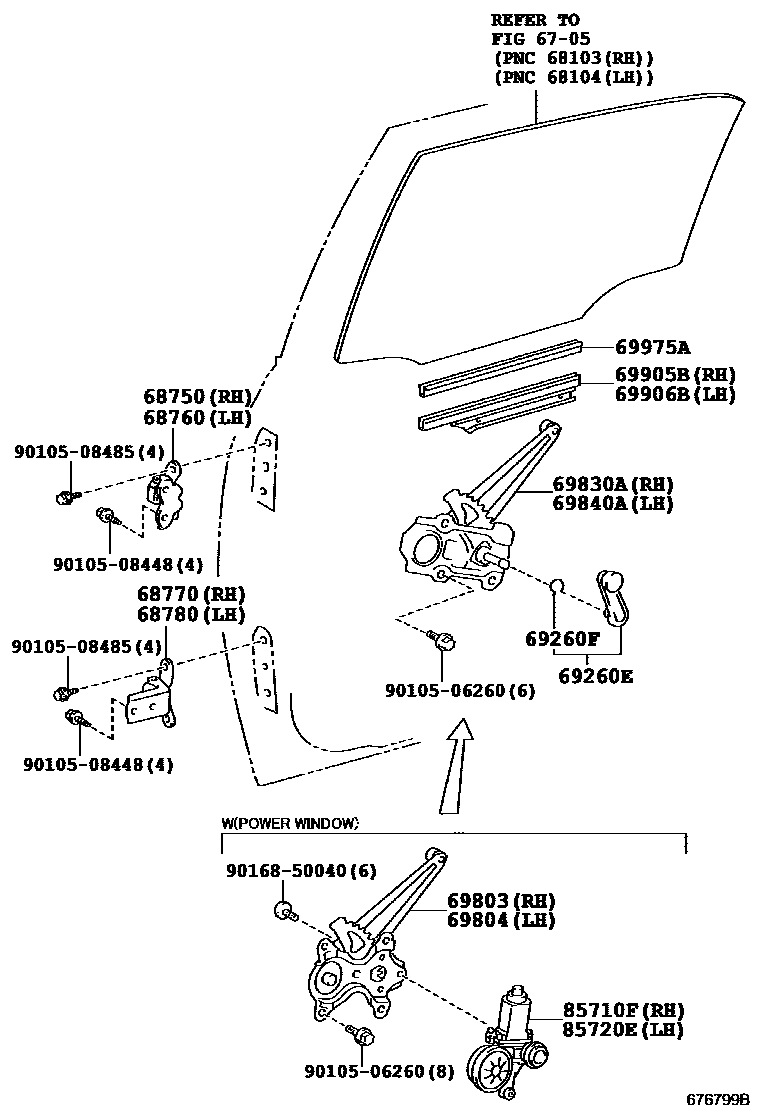

REAR DOOR WINDOW REGULATOR & HINGE

6705REAR DOOR PANEL & GLASS

→ Go to FIG 67-05

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20121iNLP11#,NSP110200901-201205

main68750-20122iNLP11#,NSP110201206-201604

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20121iNLP11#,NSP110200901-201205

main68760-20122iNLP11#,NSP110201206-201604

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52031iNLP11#,NSP110200901-201604

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52031iNLP11#,NSP110200901-201604

69260EHANDLE ASSY, REAR DOOR WINDOW REGULATOR

main69260-52050-B2×2iNLP11#,NSP110..R200901-201412

DK.GRAY,TRIM1#

main69260-52050-C0×2iNSP110..R201412-201604

BLACK,TRIM1#

69260FRING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)

main90520-01005×2iNLP11#,NSP110..R200901

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69803-42040iNLP11#,NSP110..N200901

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69804-42040iNLP11#,NSP110..N200901

69830AREGULATOR ASSY, REAR DOOR WINDOW, RH

main69830-52220iNLP11#,NSP110..R200901

69840AREGULATOR ASSY, REAR DOOR WINDOW, LH

main69840-52220iNLP11#,NSP110..R200901

69905BCHANNEL SUB-ASSY, REAR DOOR GLASS, RH

main69905-52050iNLP11#,NSP110200901-201604

69906BCHANNEL SUB-ASSY, REAR DOOR GLASS, LH

main69906-52050iNLP11#,NSP110200901-201604

69975AFILLER, REAR DOOR GLASS CHANNEL

main69975-52010×2iNLP11#,NSP110200901-201604

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85720-35140iNLP11#,NSP110..N200901

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-35180iNLP11#,NSP110..N200901

9010506260

main90105-06260

9010508448

main90105-08448

9010508485

main90105-08485

9016850040

main90168-50040

20 parts on this diagram · 1 diagram in section
