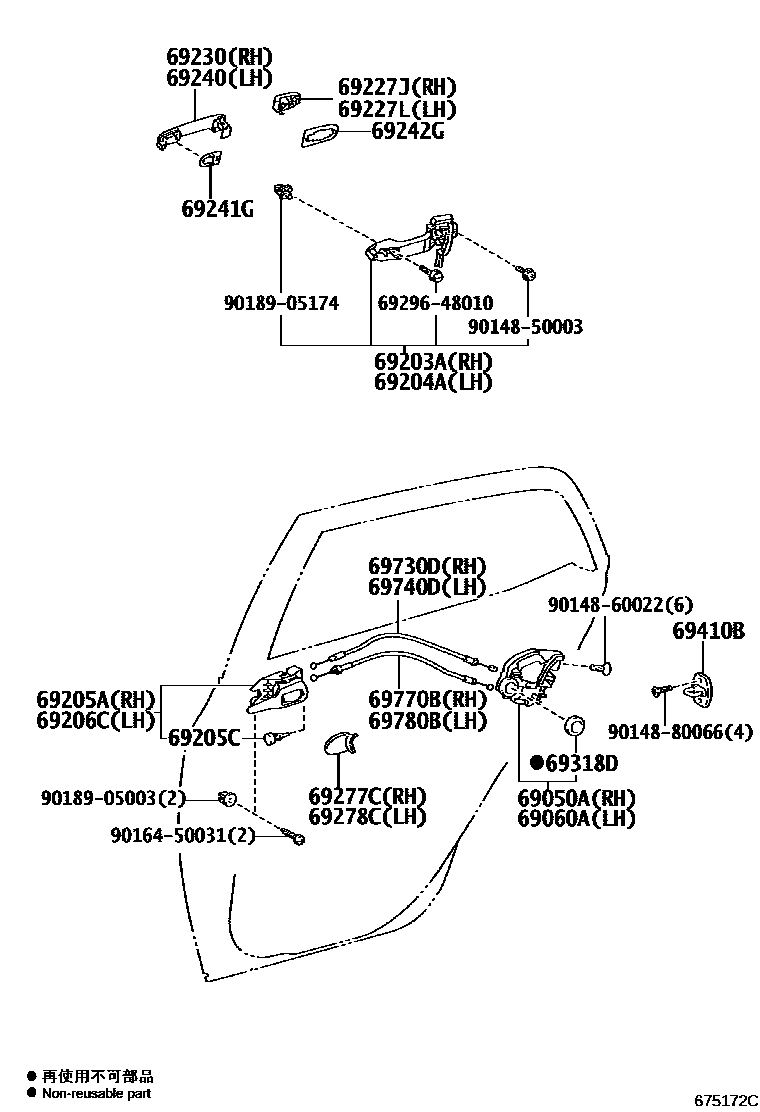

REAR DOOR LOCK & HANDLE

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-42021iNLP11#,NSP110200901

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-42021iNLP11#,NSP110200901

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-52050iNLP11#,NSP110200901

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-52060iNLP11#,NSP110200901

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-12220-B4iNLP11#,NSP110200901-201604

SILVER,TRIM1#

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04027iNLP11#,NSP110200901

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-12220-B4iNLP11#,NSP110200901-201604

SILVER,TRIM1#

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-42060iNLP11#,NSP110..LHD..R200901-201604

BLACK MATERIAL

main69227-42070-03iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N200901-201604

WHITE PEARL CS.,070

sub69227-42070

sub69227-42901

main69227-42070-A3iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N200901-201604

SUPER WHITE 2,040

sub69227-42070

sub69227-42901

main69227-42070-C2iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N200901-201604

BLACK MC.,209

sub69227-42070

sub69227-42901

main69227-42070-K3iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N200901-201604

DEEP AMETHYST M.M.,9AH

sub69227-42070

sub69227-42901

main69227-42070-L8iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N201107-201604

BRONZE M.M.,4T3

sub69227-42070

sub69227-42901

main69227-42070-P0iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N200901-201008

SILVER M.M.,1E7

sub69227-42070

sub69227-42901

main69227-42070-P5iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N200901-201604

GRAY ME.,1G3

sub69227-42070

sub69227-42901

main69227-42070-P6iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N201008-201604

SILVER ME.,1F7

sub69227-42070

sub69227-42901

main69227-42070-R8iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N200901-201604

DK.BLUE MC.,8S6

sub69227-42070

sub69227-42901

main69227-42070-V2iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N201206-201604

BLUE ME.,8T7

sub69227-42070

sub69227-42901

main69227-42070-X0iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N200901-201008

SUPER RED 5,3P0

sub69227-42070

sub69227-42901

main69227-42070-X4iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N200901-201604

RED M.M.,3R3

sub69227-42070

sub69227-42901

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69227-42060iNLP11#,NSP110..LHD..R200901-201604

BLACK MATERIAL

main69227-42070-03iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N200901-201604

WHITE PEARL CS.,070

sub69227-42070

sub69227-42901

main69227-42070-A3iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N200901-201604

SUPER WHITE 2,040

sub69227-42070

sub69227-42901

main69227-42070-C2iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N200901-201604

BLACK MC.,209

sub69227-42070

sub69227-42901

main69227-42070-K3iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N200901-201604

DEEP AMETHYST M.M.,9AH

sub69227-42070

sub69227-42901

main69227-42070-L8iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N201107-201604

BRONZE M.M.,4T3

sub69227-42070

sub69227-42901

main69227-42070-P0iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N200901-201008

SILVER M.M.,1E7

sub69227-42070

sub69227-42901

main69227-42070-P5iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N200901-201604

GRAY ME.,1G3

sub69227-42070

sub69227-42901

main69227-42070-P6iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N201008-201604

SILVER ME.,1F7

sub69227-42070

sub69227-42901

main69227-42070-R8iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N200901-201604

DK.BLUE MC.,8S6

sub69227-42070

sub69227-42901

main69227-42070-V2iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N201206-201604

BLUE ME.,8T7

sub69227-42070

sub69227-42901

main69227-42070-X0iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N200901-201008

SUPER RED 5,3P0

sub69227-42070

sub69227-42901

main69227-42070-X4iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N200901-201604

RED M.M.,3R3

sub69227-42070

sub69227-42901

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69211-12220-03iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N200901-201604

WHITE PEARL CS.,070

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-A0iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N200901-201604

SUPER WHITE 2,040

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-C2iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N200901-201604

BLACK MC.,209

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-K3iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N200901-201604

DEEP AMETHYST M.M.,9AH

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-L8iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N201107-201604

BRONZE M.M.,4T3

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-P0iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N200901-201008

SILVER M.M.,1E7

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-P5iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N200901-201604

GRAY ME.,1G3

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-P6iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N201008-201604

SILVER ME.,1F7

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-R8iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N200901-201604

DK.BLUE MC.,8S6

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-V2iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N201206-201604

BLUE ME.,8T7

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-X0iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N200901-201008

SUPER RED 5,3P0

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-X4iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N200901-201604

RED M.M.,3R3

sub69211-12903

sub69211-12220

sub69211-52090

main69211-42010iNLP11#,NSP110..LHD..R200901-201604

NO PAINT REQ.

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69211-12220-03iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N200901-201604

WHITE PEARL CS.,070

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-A0iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N200901-201604

SUPER WHITE 2,040

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-C2iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N200901-201604

BLACK MC.,209

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-K3iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N200901-201604

DEEP AMETHYST M.M.,9AH

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-L8iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N201107-201604

BRONZE M.M.,4T3

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-P0iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N200901-201008

SILVER M.M.,1E7

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-P5iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N200901-201604

GRAY ME.,1G3

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-P6iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N201008-201604

SILVER ME.,1F7

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-R8iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N200901-201604

DK.BLUE MC.,8S6

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-V2iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N201206-201604

BLUE ME.,8T7

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-X0iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N200901-201008

SUPER RED 5,3P0

sub69211-12903

sub69211-12220

sub69211-52090

main69211-12220-X4iNLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N200901-201604

RED M.M.,3R3

sub69211-12903

sub69211-12220

sub69211-52090

main69211-42010iNLP11#,NSP110..LHD..R200901-201604

NO PAINT REQ.

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-48020iNLP11#,NSP110200901

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-52020iNLP11#,NSP110200901

69277CBEZEL, REAR DOOR INSIDE HANDLE, RH

main69277-52010iNLP11#,NSP110200901

69278CBEZEL, REAR DOOR INSIDE HANDLE, LH

main69278-52010iNLP11#,NSP110200901

69318DSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iNLP11#,NSP110200901

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-33010iNLP11#,NSP110200901

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-52140iNLP11#,NSP110200901

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-52140iNLP11#,NSP110200901

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-52060iNLP11#,NSP110200901

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69770-52060iNLP11#,NSP110200901

6929648010SCREW, DOOR INSIDE HANDLE

main69296-48010

9014850003

main90148-50003

9014860022

main90148-60022

9014880066

main90148-80066

9016450031

main90164-50031

9018905003

main90189-05003

9018905174

main90189-05174

28 parts on this diagram · 1 diagram in section
