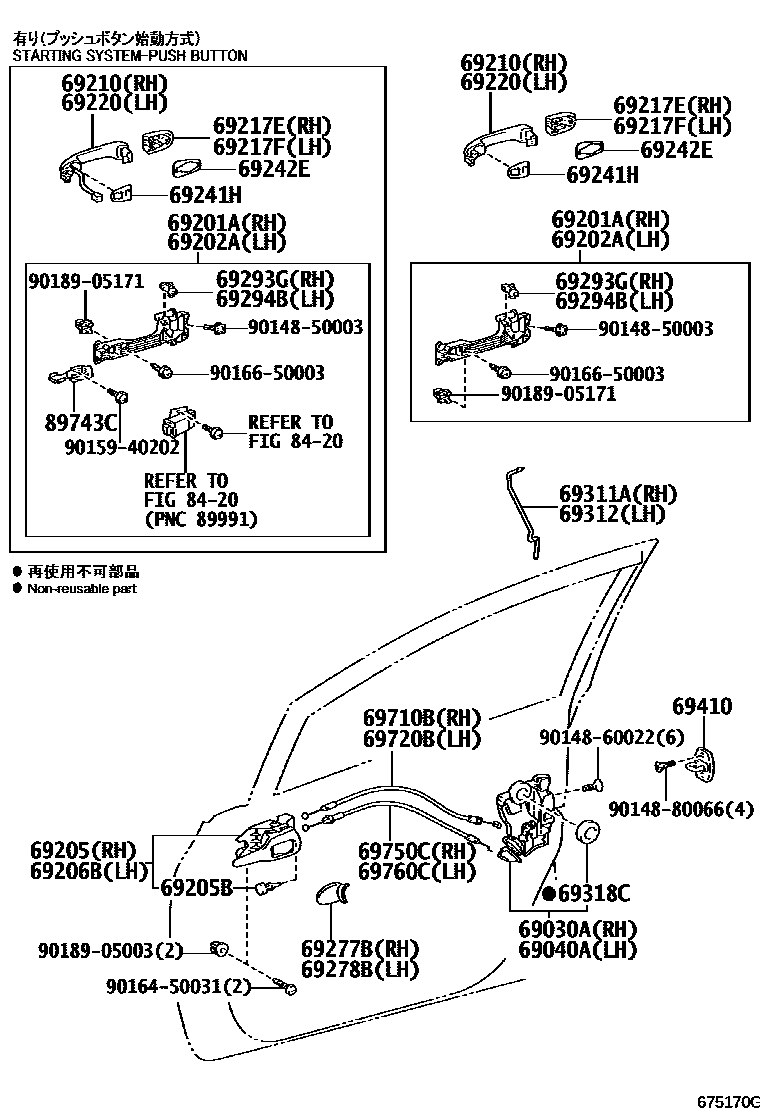

FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
SILVER,TRIM1#
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
SILVER,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),SILVER M.M.,1E7
sub69210-12320
SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),SUPER RED 5,3P0
sub69210-12320
NO PAINT REQ.
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
BLACK MATERIAL
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
BLACK MATERIAL
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),SILVER M.M.,1E7
sub69210-12320
SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START),SUPER RED 5,3P0
sub69210-12320
NO PAINT REQ.
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69277BBEZEL, FRONT DOOR INSIDE HANDLE, RH
69278BBEZEL, FRONT DOOR INSIDE HANDLE, LH
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
8420
89743CBRACKET, ELECTRICAL KEY WIRE HARNESS
RH
LH
9014850003
main90148-50003
9014860022
main90148-60022
9014880066
main90148-80066
9015940202
main90159-40202
9016450031
main90164-50031
9016650003
main90166-50003
9018905003
main90189-05003
9018905171
main90189-05171
35 parts on this diagram · 1 diagram in section
