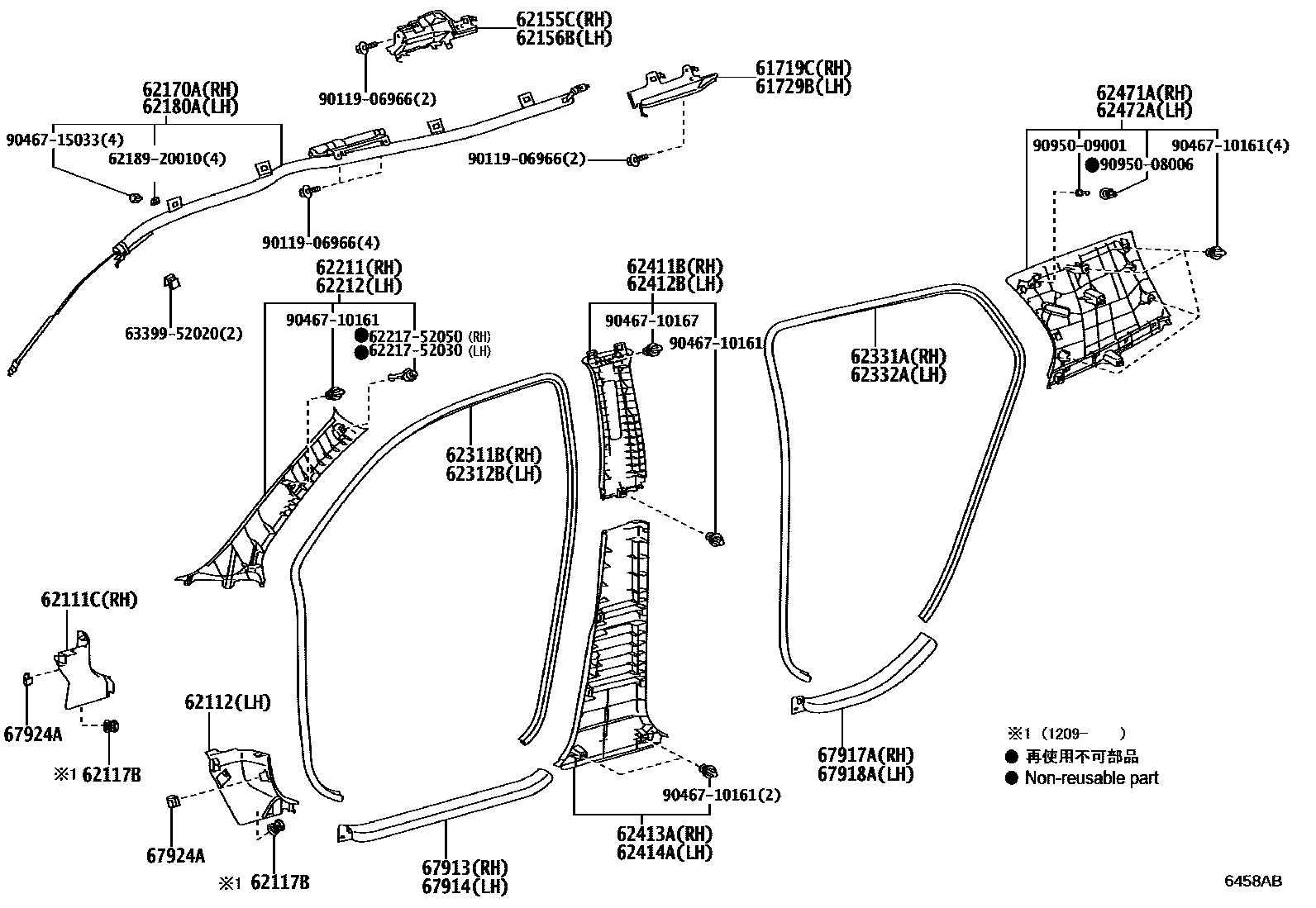

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

61719CBRACKET, ROOF SIDE RAIL, RH

main61719-52070iNLP11#,NSP110200901

61729BBRACKET, ROOF SIDE RAIL, LH

main61729-52070iNLP11#,NSP110200901

62111CBOARD, COWL SIDE TRIM, RH

main62111-52150-B0iNLP11#,NSP110200901-201209

DK.GRAY,TRIM1#

sub62111-52151

sub90467-06147

main62111-52151-B0iNLP11#,NSP110201209-201604

DK.GRAY,TRIM1#

62112BOARD, COWL SIDE TRIM, LH

main62112-52210-B0iNLP11#,NSP110..LHD200901-201209

DK.GRAY,TRIM1#

sub62112-52211

sub90467-06147

main62112-52211-B0iNLP11#,NSP110..LHD201209-201604

DK.GRAY,TRIM1#

main62112-52230-B0iNLP11#,NSP110..RHD200901-201209

DK.GRAY,TRIM1#

sub62112-52231

sub90467-06147

main62112-52231-B0iNLP11#,NSP110..RHD201209-201405

DK.GRAY,TRIM1#

62117BCLIP, NO.1(FOR COWL SIDE TRIM)

main90467-06147iNLP11#,NSP110201209

62155CBRACKET, CURTAIN SHIELD AIRBAG, RH

main62155-52060iNLP11#,NSP110200901

62156BBRACKET, CURTAIN SHIELD AIRBAG, LH

main62156-52040iNLP11#,NSP110200901

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-52050iNLP11#,NSP110200901-201007

sub62170-52080

main62170-52080iNLP11#,NSP110201008-201301

sub62170-52081

main62170-52081iNLP11#,NSP110201302

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-52050iNLP11#,NSP110200901-201007

sub62180-52080

main62180-52080iNLP11#,NSP110201008-201301

sub62180-52081

main62180-52081iNLP11#,NSP110201302

62211GARNISH, FRONT PILLAR, RH

main62211-52200-B0iNLP11#,NSP110200901-201604

LT.GRAY,TRIM1#

62212GARNISH, FRONT PILLAR, LH

main62212-52210-B0iNLP11#,NSP110200901-201604

LT.GRAY,TRIM1#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-52180-B1iNLP11#,NSP110200901-201604

DK.GRAY,TRIM1#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-52150-B1iNLP11#,NSP110200901-201604

DK.GRAY,TRIM1#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-52070-B1iNLP11#,NSP110200901-201604

DK.GRAY,TRIM1#

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-52090-B1iNLP11#,NSP110200901-201604

DK.GRAY,TRIM1#

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-52160-B0iNLP11#,NSP110200901-201604

LT.GRAY,TRIM1#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-52160-B0iNLP11#,NSP110200901-201604

LT.GRAY,TRIM1#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-52120-B0iNLP11#,NSP110200901-201604

DK.GRAY,TRIM1#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-52120-B0iNLP11#,NSP110200901-201604

DK.GRAY,TRIM1#

62471AGARNISH, ROOF SIDE, INNER RH

main62471-52310-B0iNLP11#,NSP110200901-201604

LT.GRAY,TRIM1#

62472AGARNISH, ROOF SIDE, INNER LH

main62472-52350-B0iNLP11#,NSP110200901-201604

LT.GRAY,TRIM1#

67913PLATE, FRONT DOOR SCUFF, RH

main67913-52160-B0iNLP11#,NSP110200901-201108

DK.GRAY,TRIM1#

sub67913-52161

main67913-52161-B0iNLP11#,NSP110201109-201604

DK.GRAY,TRIM1#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-52190-B0iNLP11#,NSP110200901-201108

DK.GRAY,TRIM1#

sub67914-52191

main67914-52191-B0iNLP11#,NSP110201109-201604

DK.GRAY,TRIM1#

67917APLATE, REAR DOOR SCUFF, RH

main67917-52180-B0iNLP11#,NSP110200901-201604

DK.GRAY,TRIM1#

67918APLATE, REAR DOOR SCUFF, LH

main67918-52190-B0iNLP11#,NSP110200901-201604

DK.GRAY,TRIM1#

67924ACLAMP, DOOR SCUFF PLATE, NO.2

main67924-52140iNLP11#,NSP110200901

6218920010PLATE, REAR FLOOR SIDE BOARD SET, REAR LH

main62189-20010

6221752030COVER, RAIL ROOF SIDE, INNER CENTER

main62217-52030

6221752050COVER, RAIL ROOF SIDE, INNER CENTER

main62217-52050

6339952020COVER, VISOR HOLDER HOLE

main63399-52020

9011906966

main90119-06966

9046710161

main90467-10161

9046710167

main90467-10167

9046715033

main90467-15033

9095008006

main90950-08006

9095009001

main90950-09001

36 parts on this diagram · 1 diagram in section
