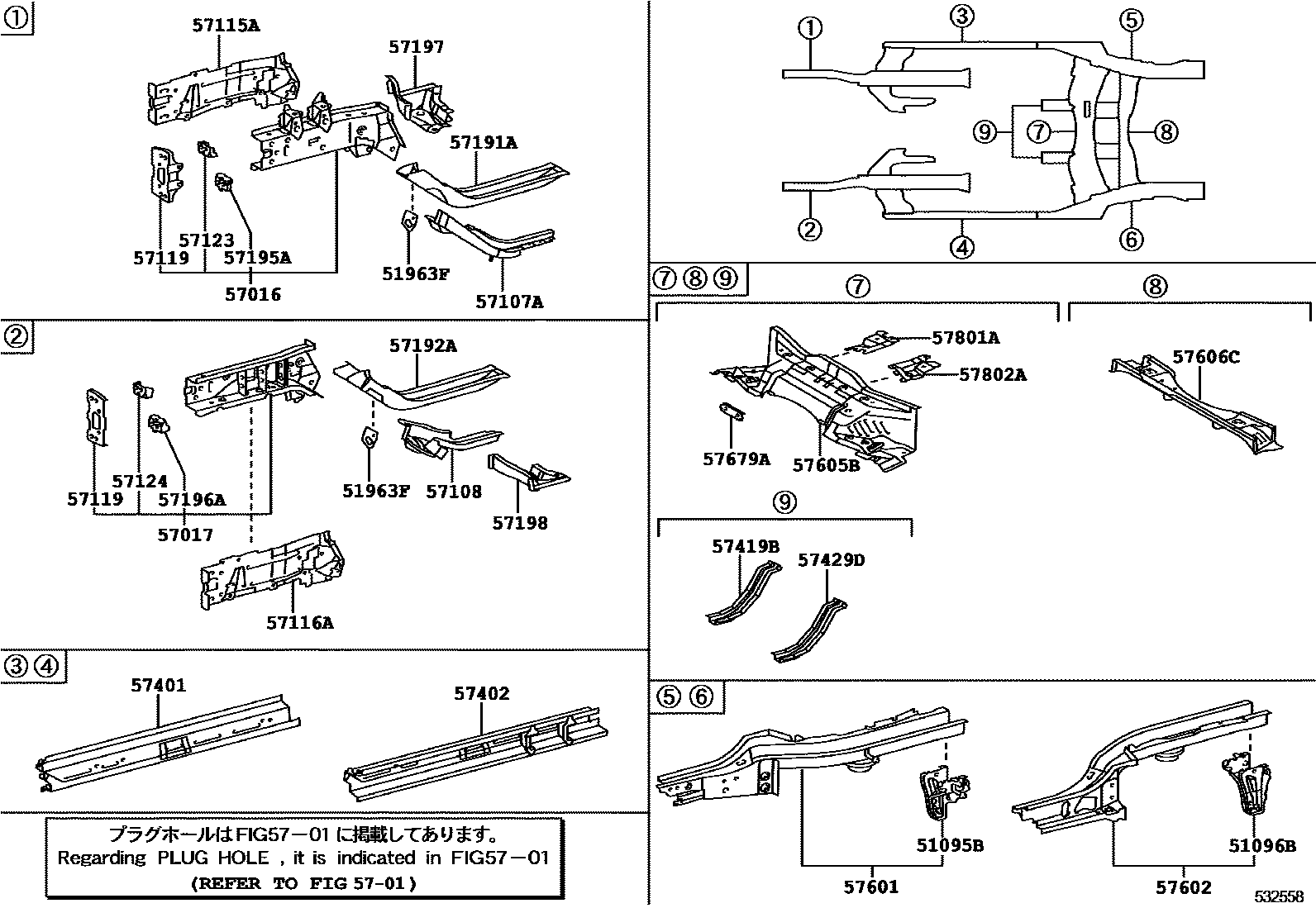

FLOOR SIDE MEMBER

0001 1 0002 1

51095BHOOK SUB-ASSY, TRANSPORT, REAR RH

main51095-52020iNLP11#,NSP110200901

51096BHOOK SUB-ASSY, TRANSPORT, REAR LH

main51096-52010iNLP11#,NSP110200901

51963FHOOK, TRANSPORT

main51963-52050iNLP11#,NSP110200901

5701HOLE PLUG

→ Go to FIG 57-01

57016REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, RH

main57016-52070iNLP11#,NSP110200901

57017REINFORCEMENT SUB-ASSY, FRONT SIDE MEMBER, LH

main57017-52060iNLP11#,NSP110200901

57107APLATE SUB-ASSY, FRONT SIDE MEMBER, NO.2 RH

main57107-52030iNLP11#,NSP110200901

57108BRACKET SUB-ASSY, STRUT BAR, LH

main57108-52030iNLP11#,NSP110200901

57115APLATE, FRONT SIDE MEMBER, OUTER RH

main57025-52010iNLP11#,NSP110200901

57116APLATE, FRONT SIDE MEMBER, OUTER LH

main57026-52010iNLP11#,NSP110200901

57119PLATE, FRONT SIDE MEMBER, FRONT

main57119-52020iNLP11#,NSP110200901

RH

main57129-52010iNLP11#,NSP110200901

LH

57123SUPPORT, FRONT SIDE MEMBER, RH

main57123-52010iNLP11#,NSP110200901

57124SUPPORT, FRONT SIDE MEMBER, LH

main57124-52010iNLP11#,NSP110200901

57191AMEMBER, FRONT SIDE, INNER REAR RH

main57191-52020iNLP11#,NSP110200901

57192AMEMBER, FRONT SIDE, INNER REAR LH

main57192-52020iNLP11#,NSP110200901

57195AREINFORCEMENT, FRONT SIDE MEMBER, FRONT RH

main57195-52020iNLP11#,NSP110200901

57196AREINFORCEMENT, FRONT SIDE MEMBER, FRONT LH

main57196-52010iNLP11#,NSP110200901

57197BOX, TORQUE, FRONT RH

main57197-52030iNLP11#,NSP110200901

57198BOX, TORQUE, FRONT LH

main57198-52030iNLP11#,NSP110200901

57401MEMBER SUB-ASSY, MAIN FLOOR SIDE, RH

main57401-52150iNLP11#,NSP110200901-201011

main57401-52200iNLP11#,NSP110201011

57402MEMBER SUB-ASSY, MAIN FLOOR SIDE, LH

main57402-52170iNLP11#,NSP110200901-201011

main57402-52220iNLP11#,NSP110201011

57419BREINFORCEMENT, FRONT FLOOR UNDER, REAR

main57419-52070iNLP110,NSP110200901

57429DREINFORCEMENT, FRONT FLOOR UNDER, REAR LH

main57429-52080iNLP110,NSP110200901

57601MEMBER SUB-ASSY, REAR FLOOR SIDE, RH

main57601-52230iNLP110,NSP110200901-201310

main57601-52232iNLP110,NSP110201401-201409

main57601-52233iNSP110201410

main57601-52240iNLP115200902-201310

main57601-52242iNLP115201401-201405

main57601-52400iNLP110,NSP110201310-201401

main57601-52410iNLP115201310-201401

57602MEMBER SUB-ASSY, REAR FLOOR SIDE, LH

main57602-52280iNLP110,NSP110200901-201310

main57602-52282iNLP110,NSP110201401-201409

main57602-52283iNSP110201410

main57602-52290iNLP115200902-201310

main57602-52292iNLP115201401-201405

main57602-52470iNLP110,NSP110201310-201401

main57602-52480iNLP115201310-201401

57605BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.1

main57605-52110iNLP110,NSP110200901-201310

main57605-52111iNLP110,NSP110201311-201511

main57605-52112iNSP110201512

main57605-52120iNLP115200902-201405

57606CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2

main57606-52170iNLP110,NSP110200901-201309

main57606-52171iNLP110,NSP110201310

main57606-52180iNLP115200902-201310

main57606-52181iNLP115201311-201405

57679ARETAINER, REAR FLOOR CROSSMEMBER

main57679-52030iNLP110,NSP110200901

57801AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, RH

main57801-52100iNLP110,NSP110200901

57802AREINFORCEMENT SUB-ASSY, REAR FLOOR SIDE MEMBER, LH

main57802-52100iNLP110,NSP110200901

30 parts on this diagram · 2 diagrams in section
