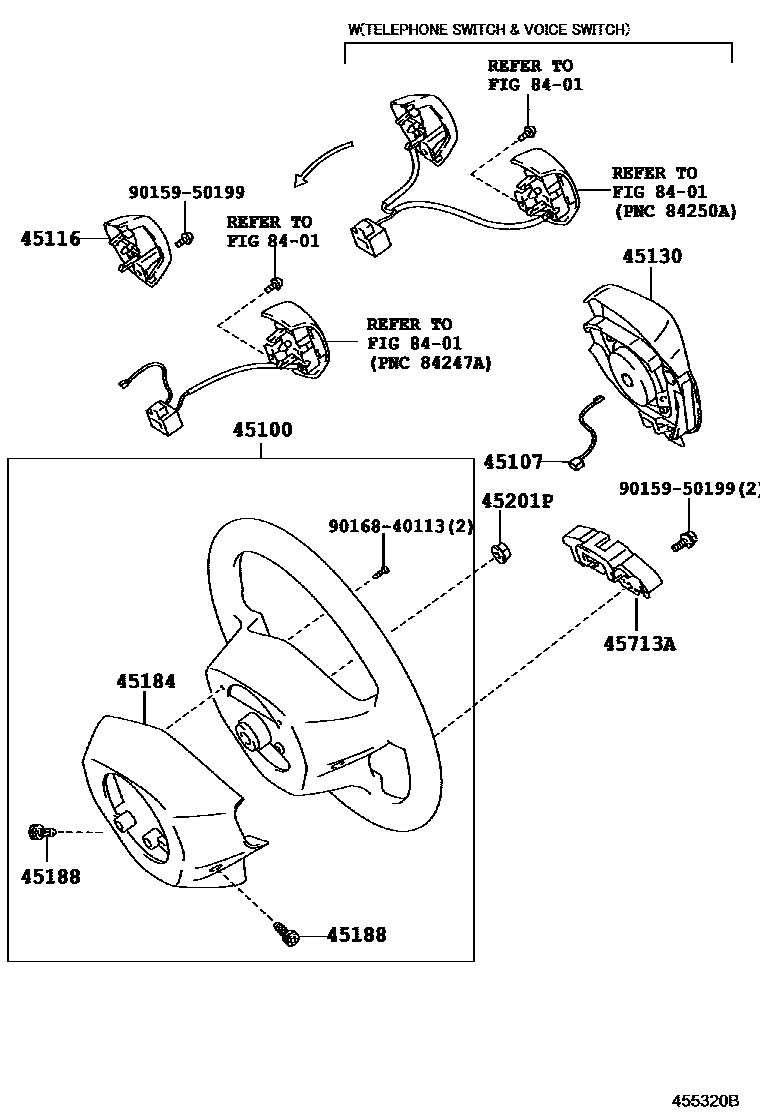

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-52380-B0iNLP11#,NSP110..R200901-201604

3-SPOKE, URETHANE,DK.GRAY,TRIM1#

main45100-52390-B0iNLP11#,NSP110..N200901-201604

3-SPOKE, LEATHER,DK.GRAY,TRIM1#

45107WIRE SUB-ASSY, HORN BUTTON

main45107-48010iNLP11#,NSP110..R200901

45116ORNAMENT, STEERING WHEEL, NO.1

main45116-52050iNLP11#,NSP110..N201008-201107

BLACK & WHITE CONCEPT

main45116-52100iNSP110..LHD..R201107

STEERING WHEEL-3-SPOKE,URETHANE,WITH(STEERING SWITCH)

45130BUTTON ASSY, HORN

main45130-52530-B0iNLP11#,NSP110..R200901-200910

DK.GRAY,TRIM1#

main45130-52531-B0iNLP11#,NSP110..R200911-201604

DK.GRAY,TRIM1#

main45130-52540-B0iNLP11#,NSP110..N200901-200910

DK.GRAY,TRIM1#

main45130-52541-B0iNLP11#,NSP110..N200911-201604

DK.GRAY,TRIM1#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-52140-B0iNLP11#,NSP110200901-201604

DK.GRAY,TRIM1#

45188SCREW, STEERING WHEEL PAD ATTACHING

main45188-60010×2iNLP11#,NSP110200901

L=18

45201PNUT, STEERING WHEEL SET

main90179-12071iNLP11#,NSP110200901

45713ADAMPER, STEERING SHAKE

main45713-52040iNLP11#200901-201405

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9015950199

main90159-50199

9016840113

main90168-40113

11 parts on this diagram · 1 diagram in section
