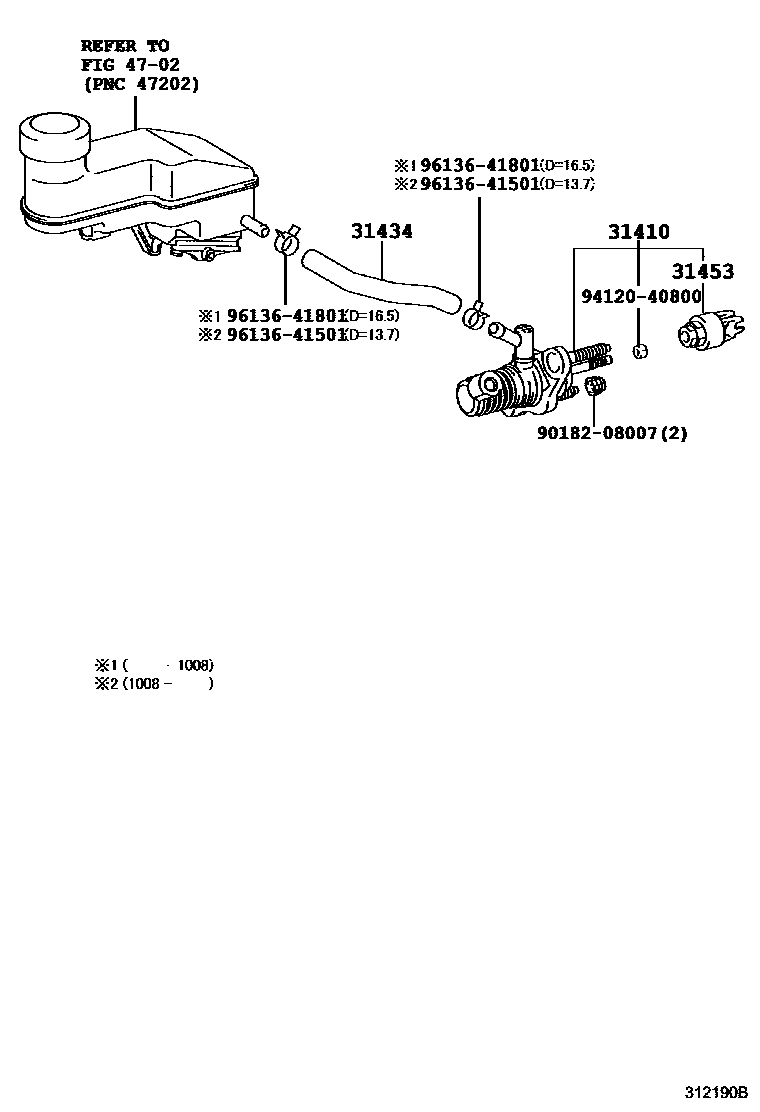

CLUTCH MASTER CYLINDER

0001 1 0002 1

31410CYLINDER ASSY, CLUTCH MASTER

main31420-52060200901-201405

main31420-52070200901-201604

31434TUBE, CLUTCH RESERVOIR

main31434-52150200901-201008

main31434-52190200901-201008

main31434-52230201008-201405

main31434-52240201008-201405

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-26020200901-201604

main31404-52010200901-201405

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

9018208007

main90182-08007

9412040800

main94120-40800

9613641501

main96136-41501

9613641801

main96136-41801

8 parts on this diagram · 2 diagrams in section
