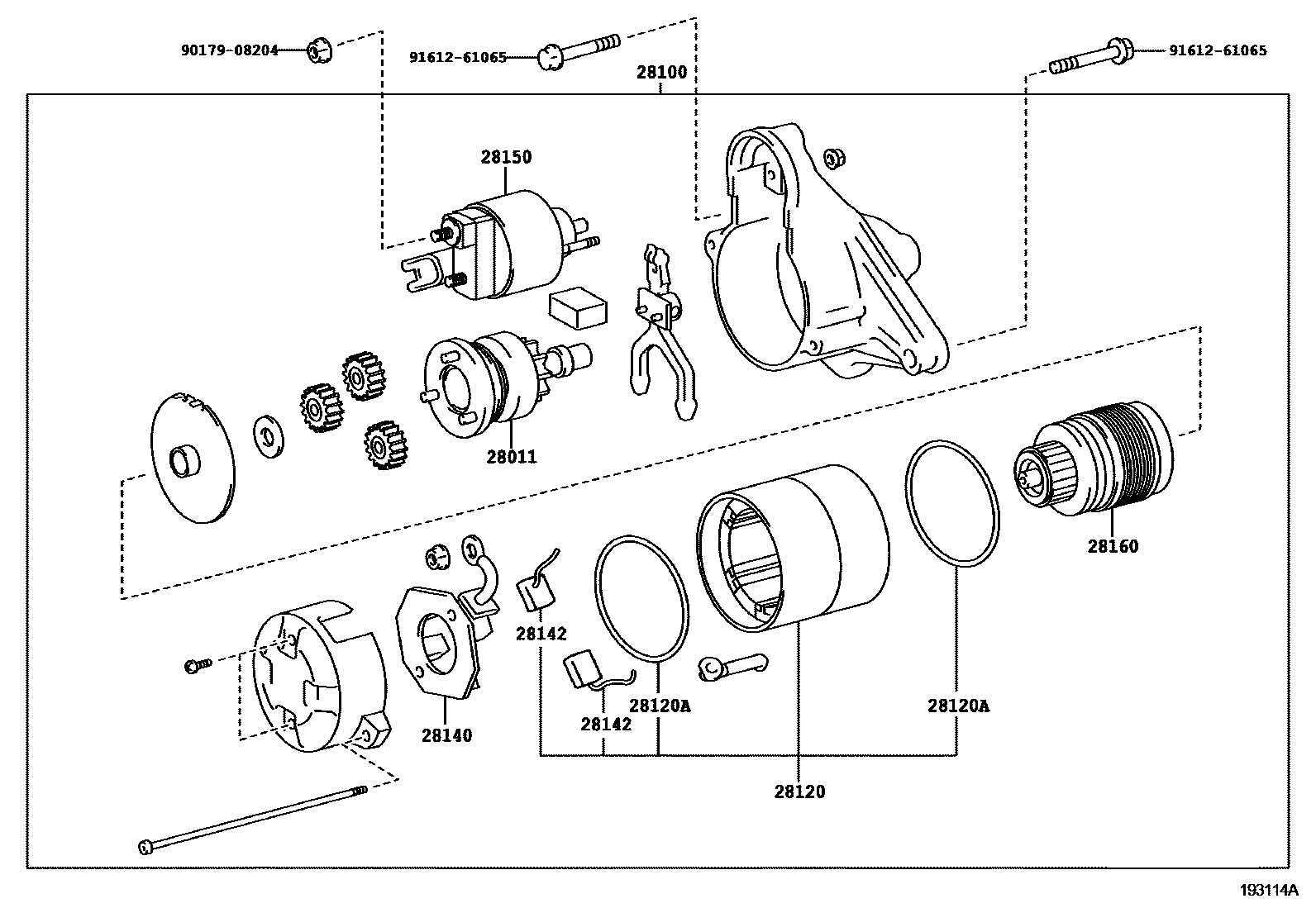

28011CLUTCH SUB-ASSY, STARTER

main28011-70020i200901-201101

28100STARTER ASSY

main28100-33110i200901-201405

12V 1.6KW

main28100-33120i200902-201405

12V 2.0KW

main28100-47110supersedes 28100-47122i200901-201004

12V 1.6KW; 12V 1.6KW,COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM); 12V 1.6KW,COLD SPEC & WITHOUT(REAR HEATER DUCT)&WITH(STOP & START SYSTEM); 12V 1.6KW,WITH(STOP & START SYSTEM)

main28100-47111i201005-201011

12V 1.6KW; 12V 1.6KW,COLD SPEC & WITH(REAR HEATER DUCT)&WITH(STOP & START SYSTEM); 12V 1.6KW,COLD SPEC & WITHOUT(REAR HEATER DUCT)&WITH(STOP & START SYSTEM); 12V 1.6KW,WITH(STOP & START SYSTEM)

main28100-47112i201012-201405

12V 1.6KW

main28100-47130supersedes 28100-47122i200901-200906

12V 1.0KW,COLD SPEC & WITH(REAR HEATER DUCT); 12V 1.0KW,COLD SPEC & WITHOUT(REAR HEATER DUCT)

main28100-47131supersedes 28100-47122i200907-201407

12V 1.0KW,COLD SPEC & WITH(REAR HEATER DUCT); 12V 1.0KW,COLD SPEC & WITHOUT(REAR HEATER DUCT)

main28100-47132supersedes 28100-47122i201408

12V 1.0KW,COLD SPEC & WITH(REAR HEATER DUCT); 12V 1.0KW,COLD SPEC & WITHOUT(REAR HEATER DUCT)

28120YOKE ASSY, STARTER

main28120-33110i200901-201405

main28120-38020i200902-201405

main28120-47110i200901-201405

main28120-40130supersedes 28120-47120i200901

COLD SPEC & WITH(REAR HEATER DUCT); COLD SPEC & WITHOUT(REAR HEATER DUCT)

28120ARING, O(FOR STARTER YOKE)

main90099-14092×2i200901

28140HOLDER ASSY, STARTER BRUSH

main28140-37050i200901-201405

main28140-47110supersedes 28140-70020i200901-201405

28142BRUSH, STARTER

main28142-70020×2i200901

28150SWITCH ASSY, MAGNET STARTER

main28150-37020i200901-201405

main28150-40090i200901

28160ARMATURE ASSY, STARTER

main28160-33090i200901-201405

main28160-38020i200902-201405

main28180-47110i200901-201405

main28160-70050supersedes 28160-70021i200901

COLD SPEC & WITH(REAR HEATER DUCT); COLD SPEC & WITHOUT(REAR HEATER DUCT)

9017908204

main90179-08204

9161261065

main91612-61065
