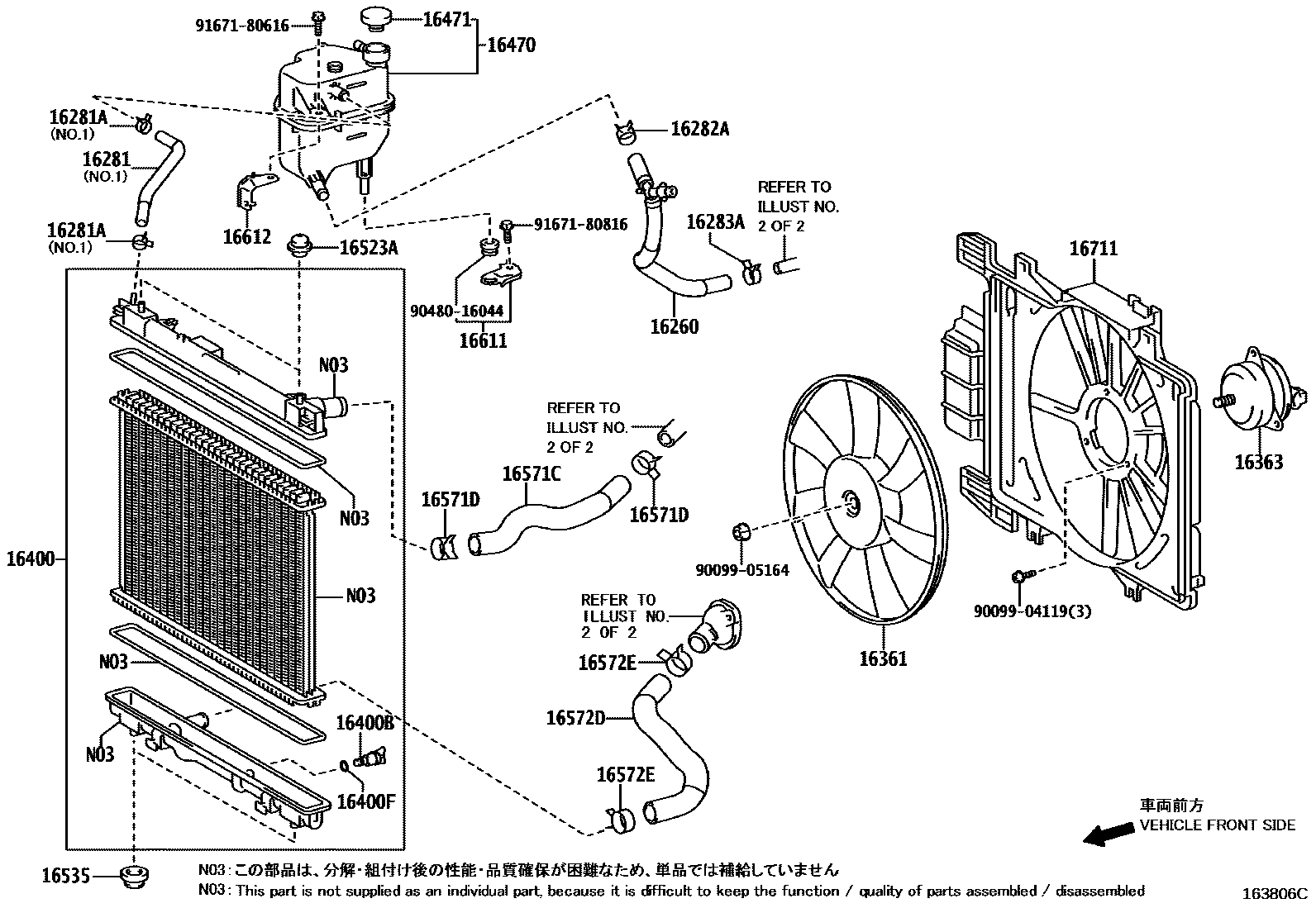

RADIATOR & WATER OUTLET
16260HOSE ASSY, WATER BY-PASS
16281HOSE, WATER BY-PASS, NO.4
NO.2
NO.1
16281ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
NO.2
NO.1
16282ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
16283ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.6)
16363MOTOR, COOLING FAN
16400RADIATOR ASSY
MARK 2492
MARK 9100
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16470TANK ASSY, RADIATOR RESERVE
16523ACUSHION, RADIATOR SUPPORT
16535SUPPORT, RADIATOR, LOWER
16571CHOSE, RADIATOR, NO.1
16571DCLIP, RADIATOR HOSE, NO.1
NO.1
NO.2,TYPE B
16572DHOSE, RADIATOR, NO.2
16572ECLIP, RADIATOR HOSE, NO.2
NO.2,TYPE A
NO.1,NO.2,TYPE B
16611BRACKET, RADIATOR RESERVE TANK
16612BRACKET, RADIATOR RESERVE TANK, NO.2
9009904119
main90099-04119
9009905164
main90099-05164
9048016044
main90480-16044
9167180616
main91671-80616
9167180816
main91671-80816
26 parts on this diagram · 7 diagrams in section
