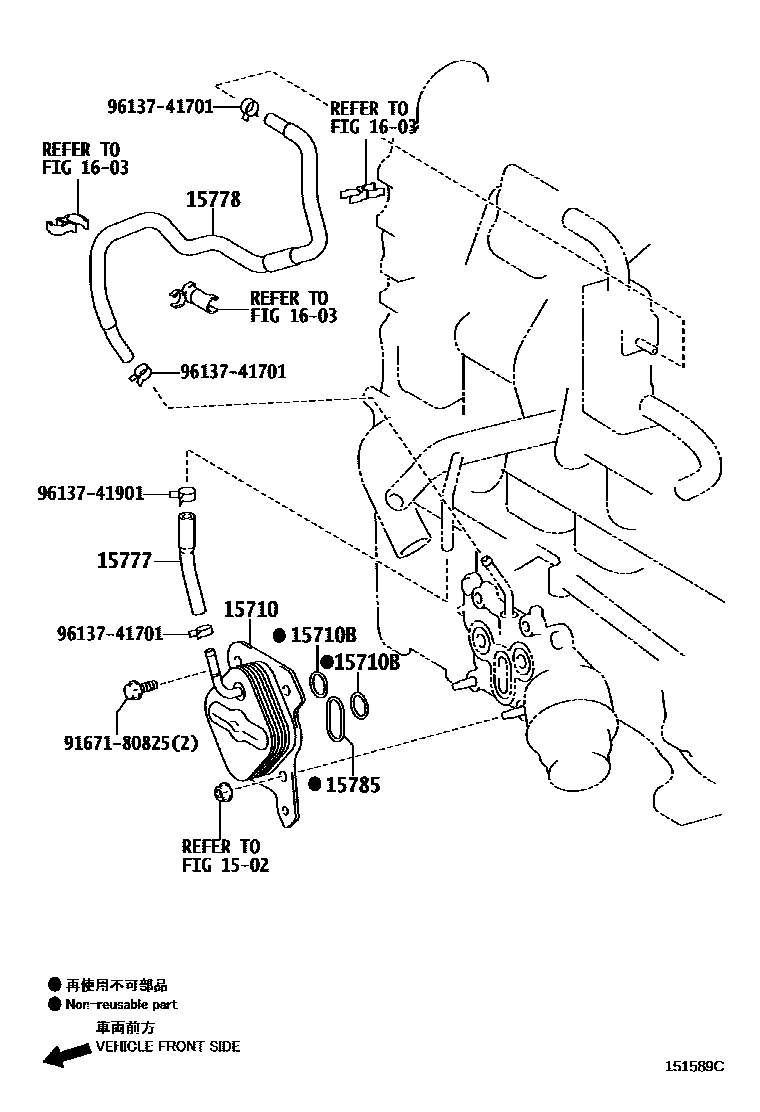

ENGINE OIL COOLER

0001 1 0002 1

1502OIL FILTER

→ Go to FIG 15-02

15710COOLER ASSY, OIL

main15710-33050i1NDTV..NLP11#200901-201405

15710BRING, O(FOR OIL COOLER)

main96723-35024×2i1NDTV..NLP11#200901-201405

15777HOSE, OIL COOLER

main15777-33010i1NDTV..NLP11#200901-201405

15778HOSE, OIL COOLER, NO.2

main15778-33010i1NDTV..NLP11#200901-201008

main15778-33030i1NDTV..NLP11#201008-201405

15785GASKET, OIL COOLER

main15785-33010i1NDTV..NLP11#200901-201405

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

9167180825

main91671-80825

9613741701

main96137-41701

9613741901

main96137-41901

10 parts on this diagram · 2 diagrams in section
