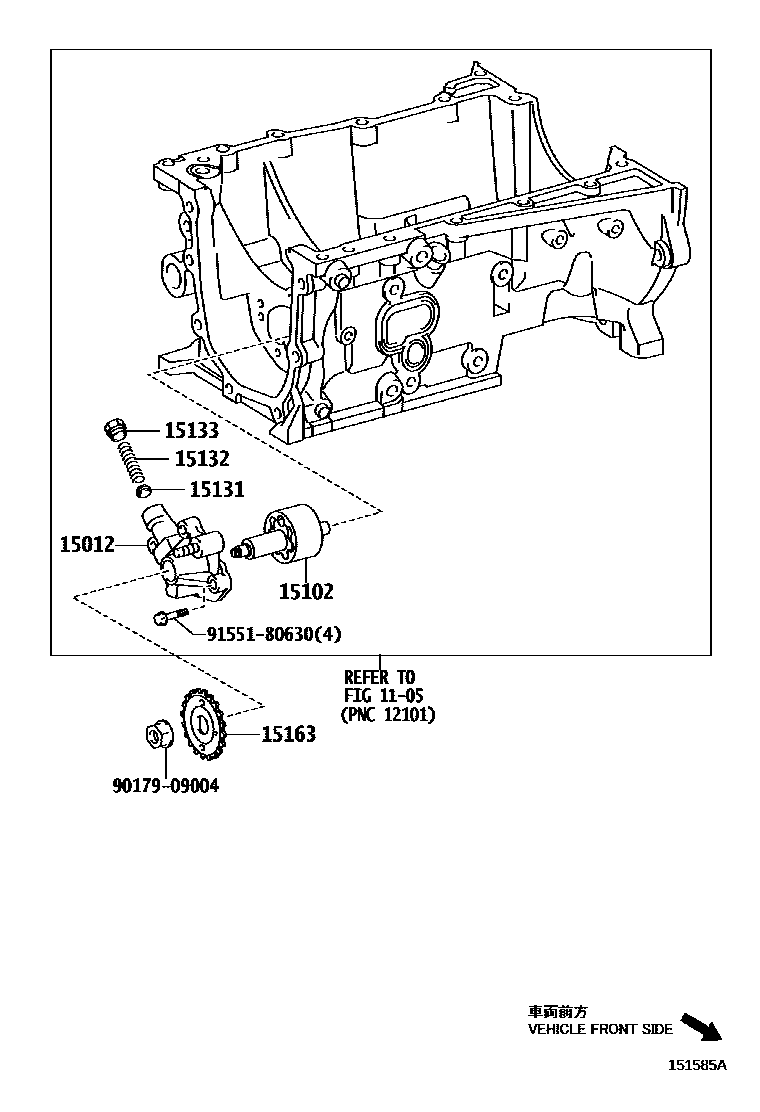

ENGINE OIL PUMP

0001 1 0002 1

15012COVER SUB-ASSY, OIL PUMP

main15012-33060i1NDTV..NLP11#200901-201405

15102ROTOR SET, OIL PUMP

main15102-33060i1NDTV..NLP11#200901-201405

15131VALVE, OIL PUMP RELIEF

main15131-38010i1NDTV..NLP11#200901-201405

15132SPRING, OIL PUMP RELIEF VALVE

main15132-33020i1NDTV..NLP11#200901-201405

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010i1NDTV..NLP11#200901-201405

15163GEAR, OIL PUMP DRIVE SHAFT

main15163-33010i1NDTV..NLP11#200901-201405

9017909004

main90179-09004

9155180630

main91551-80630

8 parts on this diagram · 2 diagrams in section
