ENGINE OVERHAUL GASKET KIT

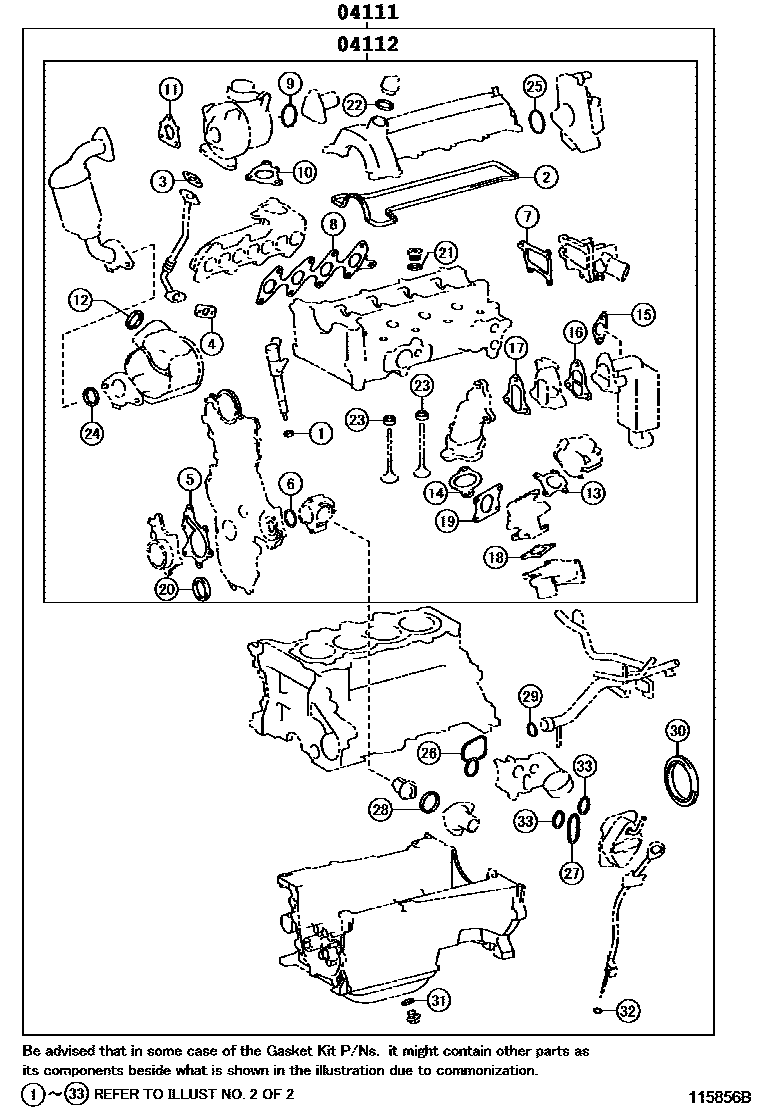

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-33140i200901-201009
main04111-33150i200902-201009
main04111-33190i201009-201209
sub04111-33191
main04111-33191i201209-201405
sub04111-33192
main04111-33200i201009-201209
sub04111-33201
main04111-33201i201209-201405
main04111-47041i200901-201006
WITH(STOP & START SYSTEM)
sub04111-47044
main04111-47044i201006-201008
WITH(STOP & START SYSTEM)
sub04111-47045
main04111-47051i200901-201006
sub04111-47053
main04111-47053i201006-201008
sub04111-47054
main04111-47063i201008-201009
WITH(STOP & START SYSTEM)
sub04111-47064
main04111-47064i201009-201111
WITH(STOP & START SYSTEM)
sub04111-47065
main04111-47065i201111-201205
WITH(STOP & START SYSTEM)
sub04111-47066
main04111-47066i201205-201208
WITH(STOP & START SYSTEM)
sub04111-47067
main04111-47067i201208-201303
WITH(STOP & START SYSTEM)
sub04111-47068
main04111-47068i201303-201312
WITH(STOP & START SYSTEM)
main04111-47072i201008-201009
sub04111-47073
main04111-47073i201009-201111
sub04111-47074
main04111-47074i201111-201205
sub04111-47075
main04111-47075i201205-201208
sub04111-47076
main04111-47076i201208-201303
sub04111-47077
main04111-47077i201303-201312
main04111-47180i201312-201405
main04111-47190i201312
04112GASKET KIT, ENGINE VALVE GRIND
main04112-33130i200901-201009
main04112-33140i200902-201009
main04112-33180i201009-201209
sub04112-33181
main04112-33181i201209-201405
sub04112-33182
main04112-33190i201009-201209
sub04112-33191
main04112-33191i201209-201405
sub04112-33192
main04112-47032i201008-201009
sub04112-47033
main04112-47033i201009-201111
sub04112-47034
main04112-47034i201111-201205
sub04112-47035
main04112-47035i201205-201208
sub04112-47036
main04112-47036i201208-201312
main04112-47041i200901-201006
sub04112-47043
main04112-47043i201006-201008
sub04112-47044
main04112-47130i201312

2 parts on this diagram · 4 diagrams in section
