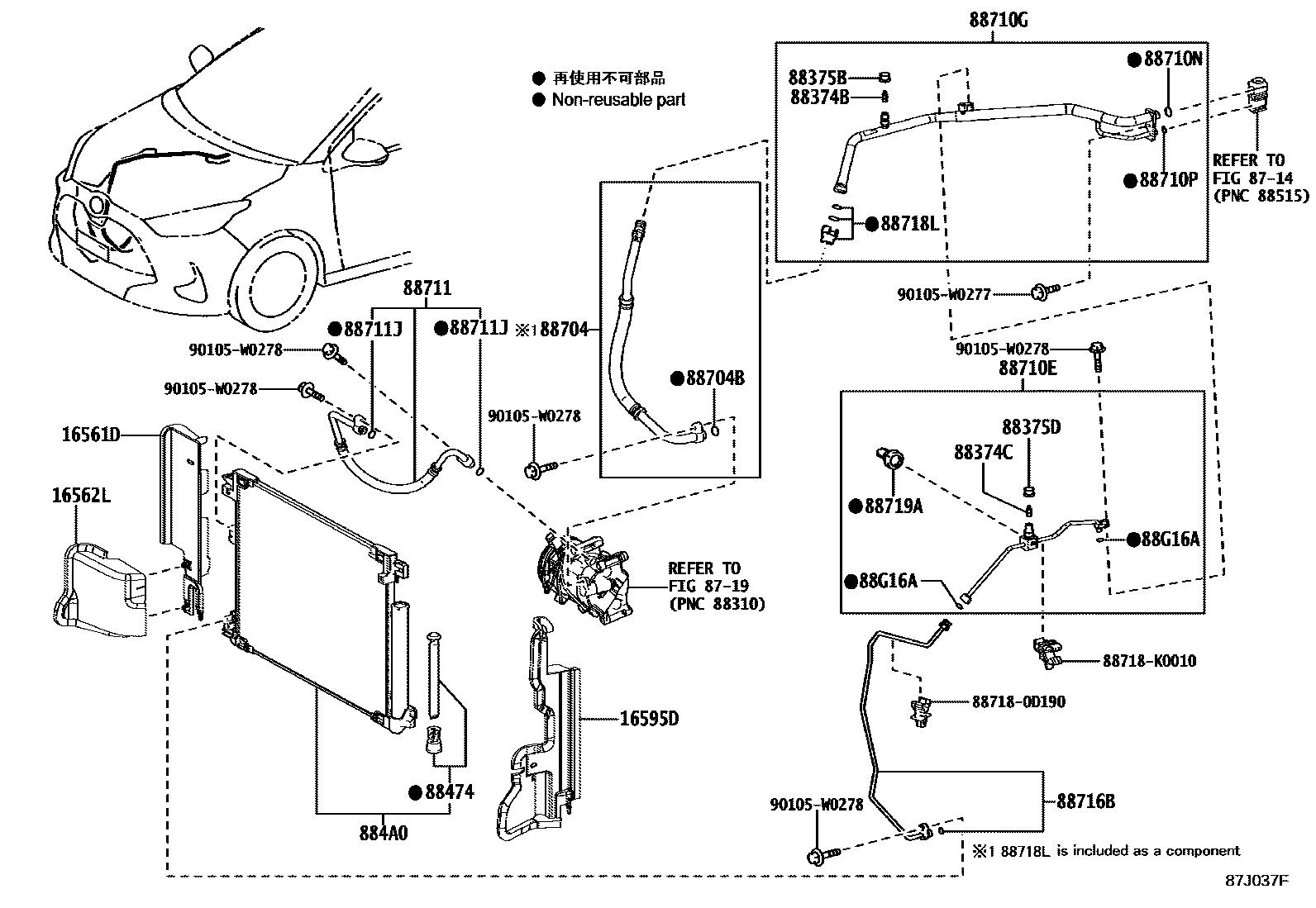

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

16561DSEAL, RADIATOR TO SUPPORT, NO.1

main16561-K0020iM15AFKS..MXPA11202007

main16561-K0040i1KRFE..KSP211202007

16562LSEAL, RADIATOR TO SUPPORT, NO.2

main16562-K0030iM15AFKS..MXPA11..6F..N;M15AFKS..MXPA11..LHD..CVT..N202401-202407

main16562-K0040iM15AFXE..MXPH1#..N,S,V;M15AFXE..MXPH11..R..FRP202401

16595DGUIDE, RADIATOR AIR, NO.1 LH

main16595-K0020iM15AFXE..MXPH1#..N,S,V;M15AFXE..MXPH11..R..FRP202401

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

8719HEATING & AIR CONDITIONING - COMPRESSOR

→ Go to FIG 87-19

88374BVALVE, SERVICE, NO.1

main88374-30010iMXPH1#..N,S,V;MXPH11..R..FRP202401

88374CVALVE, SERVICE, NO.2

main88374-30020iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

main88374-33070iMXPA11,MXPH11..LHD..(N,R)..FRP; MXPA11,MXPH11..LHD..CVT..(N,R)..FRP; MXPA11..LHD..N..FRP;MXPH11..LHD..(N,R,S)..FRP202007-202401

EGYPT SPEC; NEW CALEDONIA, TAHITI SPEC; UKRAINE SPEC

88375BCAP, SERVICE VALVE, NO.1

main88375-30310iMXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP202007-202401

main88375-30290iMXPA11,MXPH11..LHD..(N,R)..FRP; MXPA11,MXPH11..LHD..CVT..(N,R)..FRP; MXPA11..LHD..N..FRP;MXPH11..LHD..(N,R,S)..FRP202007-202401

EGYPT SPEC; NEW CALEDONIA, TAHITI SPEC; UKRAINE SPEC

88375DCAP, SERVICE VALVE, NO.2

main88375-30320iMXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP202007-202401

main88375-30280iMXPH11..LHD..S202007-202106

EGYPT SPEC; NEW CALEDONIA, TAHITI SPEC

88474DRYER, COOLER

main88474-12010iKSP211..G202007-202105

main88474-12020iMXPH11..N,S,V;MXPH11..LHD..R..FRP202007-202401

884A0CONDENSER ASSY, COOLER

main884A0-K0020iMXPH11..G;MXPH11..R..CZEP202007

main884A0-K0030iKSP211..RHD..N;KSP211..LHD..(N,R);MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007

main884A0-K0010iKSP211..LHD..(N,R)..FRP;MXPA11..LHD..CVT..(G,S)..FRP; MXPA11..LHD..(G,S)..FRP202007

EGYPT SPEC; NEW CALEDONIA, TAHITI SPEC; UKRAINE SPEC

88704HOSE SUB-ASSY, SUCTION

main88704-K0010iKSP211..RHD..R202007-202205

main88704-K0020iMXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007

main88704-K0030iMXPH11..G;MXPH11..R..CZEP202007

88704BRING, O(FOR SUCTION HOSE)

main90068-14010iMXPH11..RHD..R202007-202205

ID=6.7,OD=10.3

main90099-14121iKSP211..RHD..R;MXPA11..RHD..G202007-202205

ID=13.4,OD=18.2

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-K0030iMXPA11..RHD..6F..N202401-202407

main88710-K0040iMXPA11..LHD..N202007-202401

main88710-K0050iMXPH11..RHD..(N,S,V)202007-202401

main88710-K0060iMXPH11..(G,R)..CZEP;MXPH11..LHD..G..FRP202007

main88710-K0130iKSP211..RHD..R202007-202205

main88710-K0140iKSP211..LHD..(N,R)202007

main88710-K0110iMXPA11..LHD..CVT..N..FRP; MXPA11..LHD..N..FRP202007-202401

EGYPT SPEC; NEW CALEDONIA, TAHITI SPEC; UKRAINE SPEC

main88710-K0120iMXPH11..LHD..(N,R)..FRP; MXPH11..LHD..(N,R,S)..FRP202007-202401

EGYPT SPEC; NEW CALEDONIA, TAHITI SPEC; UKRAINE SPEC

main88710-K0160supersedes 88710-K0140iKSP211..LHD..G202007-202105

EGYPT SPEC

88710GTUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2

main88710-K0010iKSP211..RHD..N202007

main88710-K0020iKSP211..LHD..(N,R)202007

main88710-K0100supersedes 88710-K0020iKSP211..LHD..G202007-202105

EGYPT SPEC

88710NRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

main90068-14038iKSP211..RHD..N;KSP211..LHD..(N,R)202007

ID=13.4,OD=18.2

88710PRING, O, NO.2(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)

main90068-14039iKSP211..G202007-202105

ID=6.7,OD=10.3

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-K0010iKSP211..RHD..R202007-202205

main88711-K0020iMXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007

main88711-K0030iMXPH11..RHD..R202007-202205

88711JRING, O, NO.1(FOR DISCHARGE HOSE)

main90068-14009×2iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

ID=10.8,OD=15.6

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-K0020iKSP211..RHD..N;KSP211..LHD..(N,R);MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007

main88716-K0050iMXPH11..G;MXPH11..R..CZEP202007

88718LCLAMP, PIPING

main88718-52280iMXPH11..G;KSP211..RHD..N;MXPH11..R..CZEP;KSP211..LHD..(N,R);MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-11010iMXPH11..G;KSP211..RHD..N;MXPH11..R..CZEP;KSP211..LHD..(N,R);MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007

88G16ARING, O, NO.1(FOR COOLER REFRIGERANT LIQUID PIPE)

main90068-14039×2iMXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP202007-202401

ID=6.7,OD=10.3

887180D190PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-0D190

88718K0010PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-K0010

90105W0277

main90105-W0277

90105W0278

main90105-W0278

27 parts on this diagram · 6 diagrams in section
