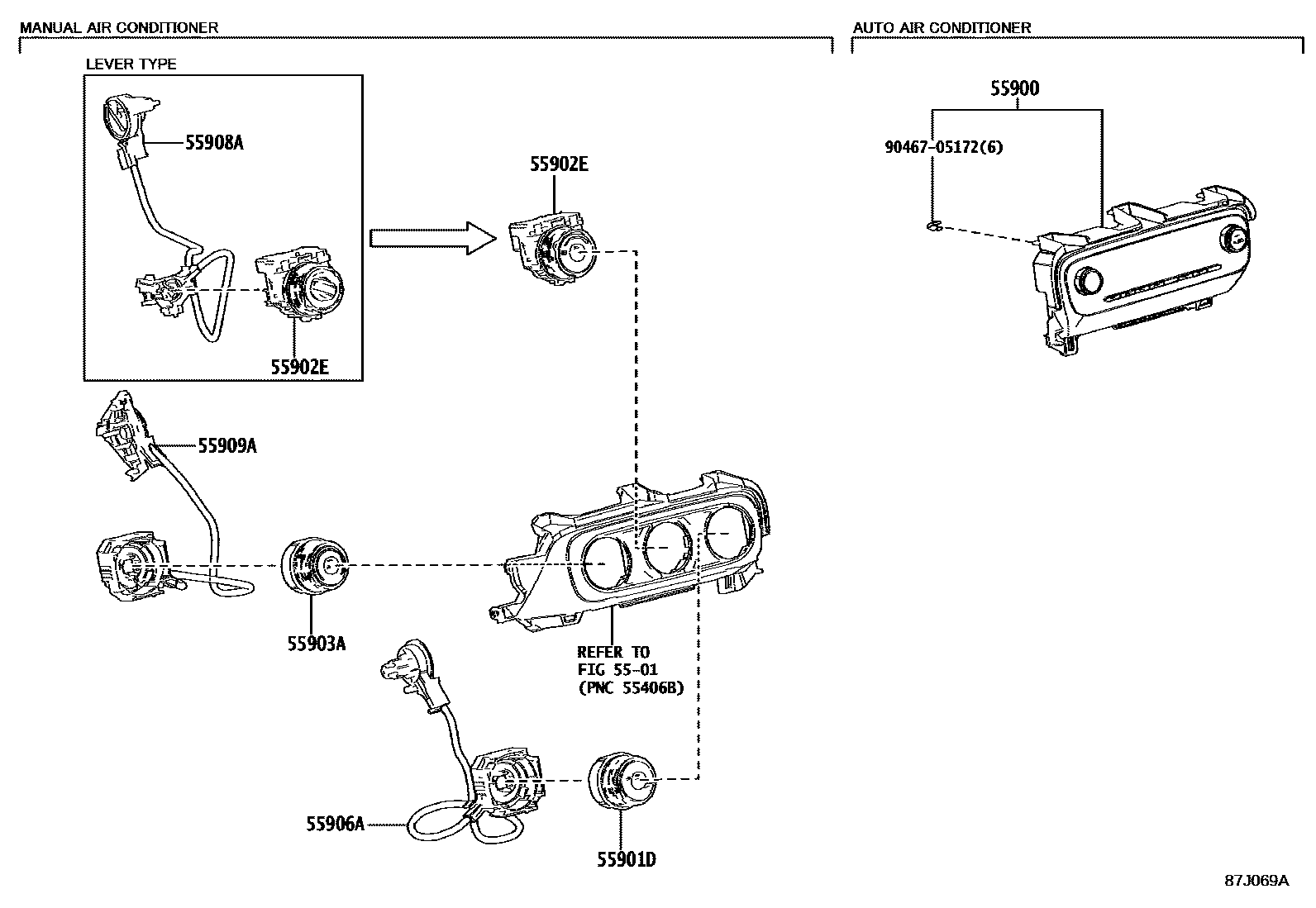

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL PANEL 0002 1HEATER CONTROL PANEL 0003 1AIR DUCT 0004 1AIR DUCT 0005 1SENSOR 0006 1SENSOR

5501INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-01

55900CONTROL ASSY, AIR CONDITIONER

main55900-0DM80iMXPA11,MXPH11..RHD..(G,S,V)202205

main55900-0DN00iMXPA11,MXPH11..LHD..(G,S,V)202204

main55900-0DN10iMXPH11..LHD..R202204

main55900-0DN30iMXPH11..RHD..N202205-202401

main55900-0DN40iMXPA11..LHD..N202204-202401

AIR CONDITIONER-AUTO

main55900-0DP00iMXPH11..R..FRP202401

main55900-0DP20iMXPH11..LHD..N202401

main55900-0DP40iMXPH1#..LHD..(S,V)202401

main55900-0DP60iMXPH11..RHD..N202401

AIR CONDITIONER-AUTO

main55900-0DP70iMXPH1#..RHD..(S,V)202401

main55900-K0010iMXPH11..LHD..R202007-202204

main55900-K0030iMXPH11..RHD..R202007-202205

main55900-K0070iMXPA11..LHD..S202106-202204

AIR CONDITIONER- MANUAL

main55900-K0070iMXPH11..S..CZEP;KSP211,MXPA11,MXPH11..LHD..(G,V)202007-202204

main55900-K0080iKSP211,MXPA11,MXPH11..RHD..(G,V)202007-202205

main55900-K0080iMXPA11..RHD..S202106-202205

AIR CONDITIONER- MANUAL

main55900-K0260iMXPH11..RHD..S202007-202205

main55900-K0270iMXPH11..LHD..N202007-202204

main55900-K0280iMXPH11..LHD..N202007-202106

COLD AREA SPEC-WITH(EUROPE S RANK)

main55900-K0280iMXPH11..LHD..N202007-202106

COLD AREA SPEC-WITH(EUROPE S RANK)&BLIND SPOT MONITOR-WITH

main55900-K0280iMXPH11..LHD..N202007-202106

BLIND SPOT MONITOR-WITH

main55900-K0280iMXPH11..LHD..N202007-202106

COLD AREA SPEC-WITH(EUROPE A RANK)

main55900-K0280iMXPH11..LHD..N202007-202106

COLD AREA SPEC-WITH(EUROPE A RANK)&BLIND SPOT MONITOR-WITH

55901DCONTROL SUB-ASSY, HEATER, NO.1

main55901-0D420iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

main55901-K0040iKSP211,MXPA11..N202007-202106

main55901-K0050iKSP211..R202007

55902ECONTROL SUB-ASSY, HEATER, NO.2

main55902-0D710iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

main55902-K0040iMXPA11..S202007-202106

main55902-K0050iKSP211..R202007

55903ACONTROL SUB-ASSY, HEATER, NO.3

main55903-0D470iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

main55903-K0030iMXPA11..N202007-202106

main55903-K0040iKSP211..N202007

main55903-K0050iKSP211..R202007

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-K0010iMXPA11..RHD..S202007-202008

AIR CONDITIONER-AUTO (DUAL&COLD STORAGE EVAPORATOR TYPE)

main55906-K0010iKSP211,MXPA11..RHD..(N,R,S)202007-202008

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main55906-K0010iKSP211,MXPA11..RHD..(N,R,S)202007-202008

AIR CONDITIONER-AUTO

main55906-K0011iMXPA11..RHD..S202008-202407

main55906-K0020iMXPA11..LHD..S202007-202008

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main55906-K0020iMXPA11..LHD..S202007-202008

AIR CONDITIONER-AUTO (DUAL&COLD STORAGE EVAPORATOR TYPE)

main55906-K0020iMXPA11..LHD..S202007-202008

AIR CONDITIONER-AUTO

main55906-K0021iMXPA11..LHD..N202008-202407

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-K0010iMXPA11..RHD..6F..N202007-202407

main55908-K0020iMXPA11..LHD..N202007-202407

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-K0010iKSP211,MXPA11..RHD..(N,R,S)202007-202008

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main55909-K0010iKSP211,MXPA11..RHD..(N,R,S)202007-202008

AIR CONDITIONER-AUTO (DUAL&COLD STORAGE EVAPORATOR TYPE)

main55909-K0010iKSP211,MXPA11..RHD..(N,R,S)202007-202008

AIR CONDITIONER-AUTO

main55909-K0011iMXPA11..RHD..S202008-202407

main55909-K0020iMXPA11..LHD..S202007-202008

AIR CONDITIONER-AUTO(DUAL MODE CONTROL)

main55909-K0020iMXPA11..LHD..S202007-202008

AIR CONDITIONER-AUTO (DUAL&COLD STORAGE EVAPORATOR TYPE)

main55909-K0020iMXPA11..LHD..S202007-202008

AIR CONDITIONER-AUTO

main55909-K0021iKSP211,MXPA11..LHD..(N,R)202008-202407

9046705172

main90467-05172

9 parts on this diagram · 6 diagrams in section
