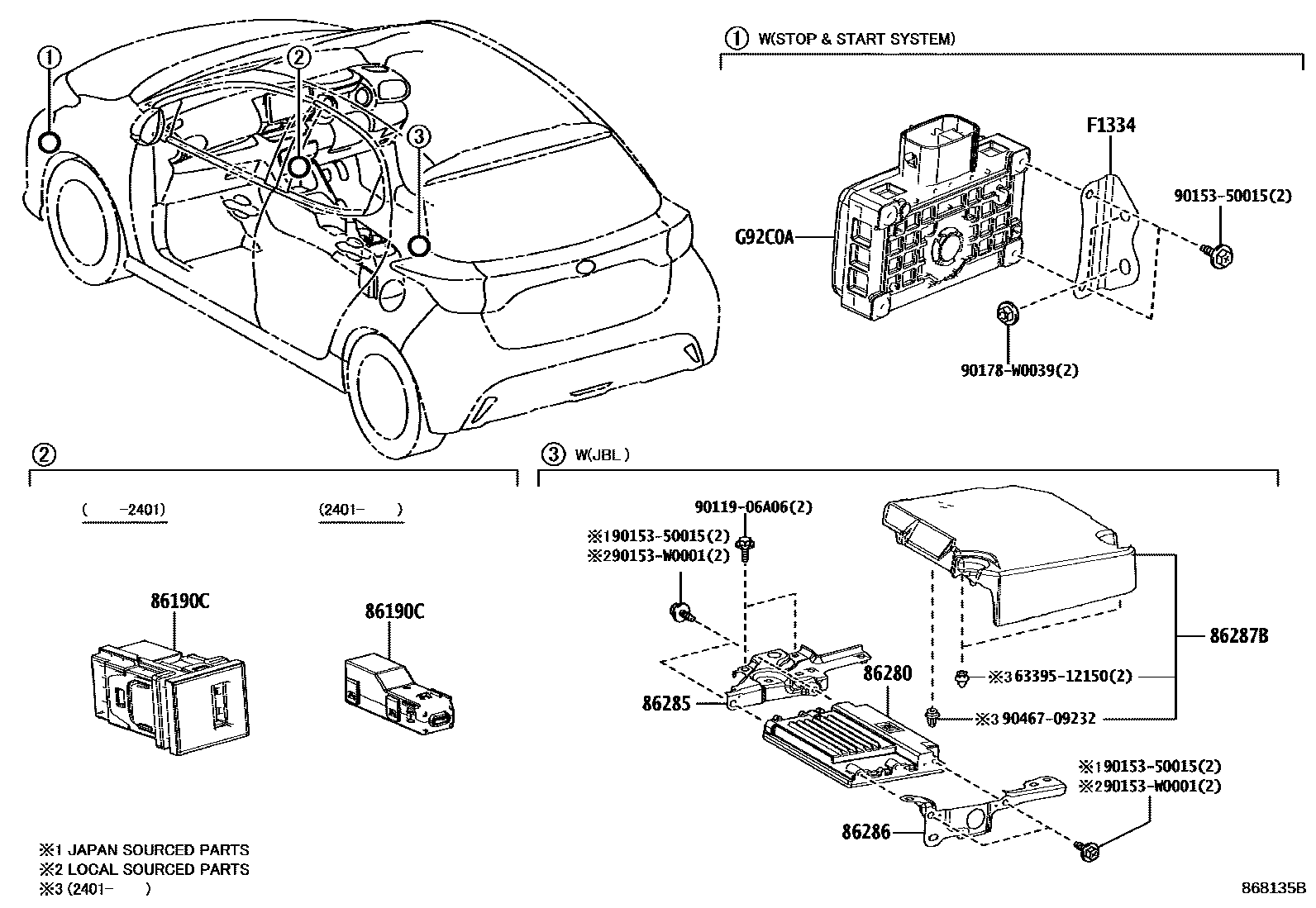

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1AMPLIFIER 0002 1CONDENSER

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-12070iKSP211..G202007-202205

main86190-12070iMXPH11..N,S,V;MXPA11..6F..N;MXPA11..LHD..CVT..N202007-202401

AUDIO-7INCH *DA & WITHOUT(DAB)

main86190-12070iMXPH11..N,S,V;MXPA11..6F..N;MXPA11..LHD..CVT..N202007-202401

AUDIO-7INCH *DA & WITH(DAB)

main86190-12070iMXPH11..N,S,V;MXPA11..6F..N;MXPA11..LHD..CVT..N202007-202401

AUDIO-7INCH *DA(FOR SOUTH AFRICA) & W/O(DAB)

main86190-46010iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-K0010

main86280-0D030

86285BRACKET, AMPLIFIER, NO.1

main86285-K0010

86286BRACKET, AMPLIFIER, NO.2

main86286-K0010

86287BCOVER, AMPLIFIER

F1334BRACKET, CONVERTER CONTROL, NO.1

mainF1334-K0010

G92C0ACONVERTER ASSY, ECO-RUN VEHICLE

6339512150CLIP, ROOF HEADLINING TRIM

main63395-12150

9011906A06

main90119-06A06

9015350015

main90153-50015

90153W0001

main90153-W0001

90178W0039

main90178-W0039

9046709232

main90467-09232

13 parts on this diagram · 2 diagrams in section
