HEV INVERTER

0001 1 0002 1 0003 1HV CONVERTER KIT

3901TRANSAXLE ASSY(HEV OR BEV OR FCEV)

→ Go to FIG 39-01

8202WIRING & CLAMP

→ Go to FIG 82-02

G9022ACOVER SUB-ASSY, INVERTER, UPPER

mainG902247050iMXPH11..G;MXPH11..R..CZEP202007-202401

mainG902252010iMXPH13202401

G9118ALABEL, HV MOTOR CONTROL INVERTER CAUTION

G9200INVERTER ASSY, W/CONVERTER

mainG9200K9010iMXPH11202007-202104

mainG9200K9011iMXPH11..RHD..R202104-202303

mainG92A052201iMXPH13202401

mainG92A052240iMXPH11..N,S,V;MXPH11..R..FRP202303-202401

mainG92A052270iMXPH11..N,S,V;MXPH11..R..FRP202401

G9214BRACKET, INVERTER, NO.1

mainG92140D010iMXPH11..LHD..R;MXPH11..G,N,S,V202204-202212

(L)

mainG92140D010iMXPH11..N,S,V;MXPH11..R..FRP202212-202401

mainG921452030iMXPH13202401

mainG9214K0010iMXPH11..RHD..R202204-202212

(J)

mainG9214K0010iMXPH11202007-202204

G9215BRACKET, INVERTER, NO.2

mainG92150D010iMXPH11..G;MXPH11..R..CZEP202212-202401

mainG92150D010iMXPH11..RHD..R202204-202212

(L)

mainG921552020iMXPH13202401

mainG9215K0010iMXPH11202007-202204

mainG9215K0010iMXPH11..LHD..R;MXPH11..G,N,S,V202204-202212

(J)

G921EPROTECTOR, INVERTER

mainG921E0D010iMXPH11..LHD..R;MXPH11..G,N,S,V202204-202212

(L)

mainG921E0D010iMXPH1#..N,S,V;MXPH11..R..FRP202212-202401

mainG921EK0010iMXPH11..LHD..R;MXPH11..G,N,S,V202204-202212

(J)

mainG921EK0010iMXPH11202007-202204

90105W0276

main90105-W0276

90119W0030

main90119-W0030

90119W0037

main90119-W0037

90119W0160

main90119-W0160

9012608052

main90126-08052

90178W0031

main90178-W0031

9155100840

main91551-00840

9167180616

main91671-80616

9167310820

main91673-10820

9167380616

main91673-80616

9415180800

main94151-80800

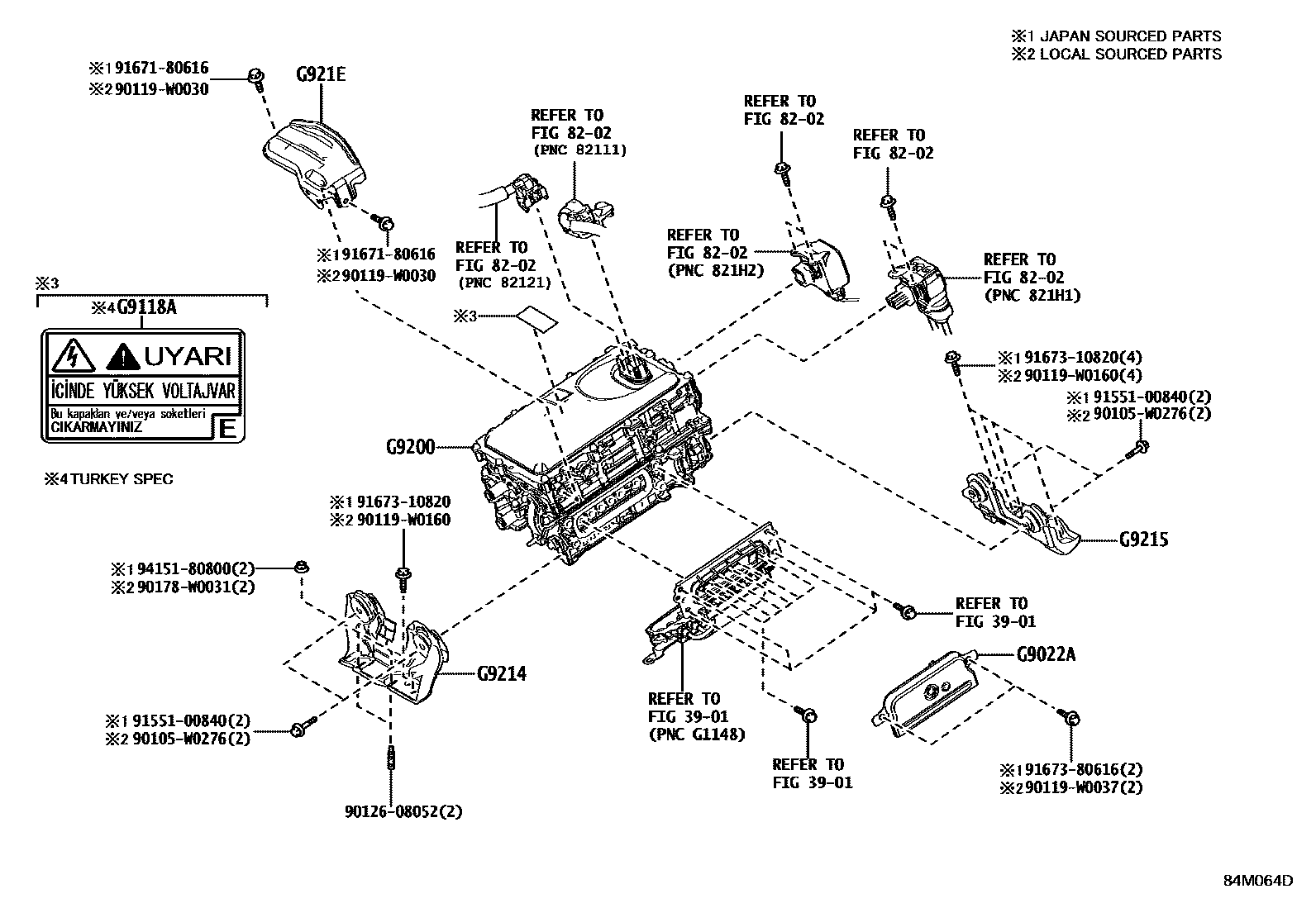

19 parts on this diagram · 3 diagrams in section
