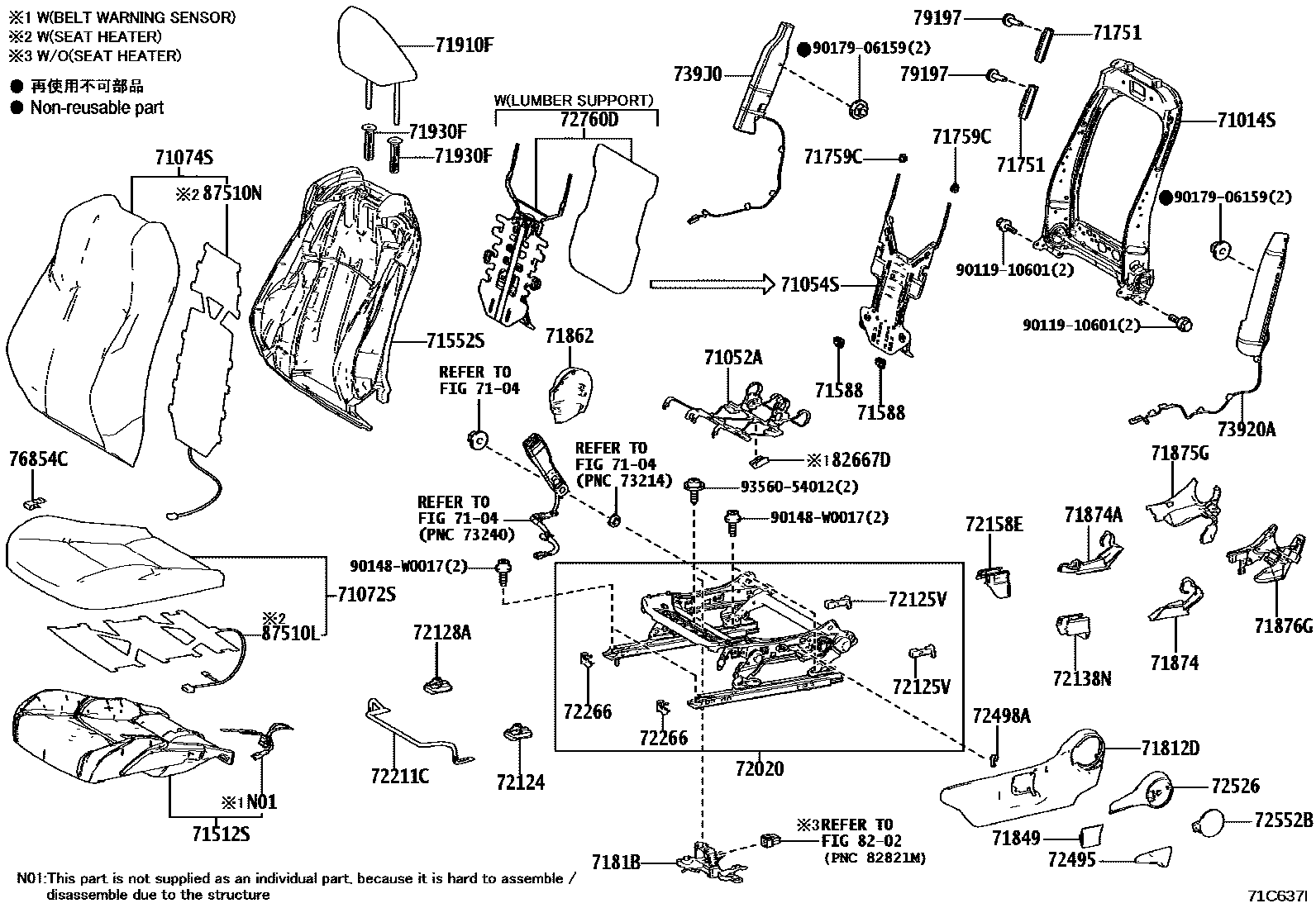

FRONT SEAT & SEAT TRACK
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
7104SEAT BELT & CHILD RESTRAINT SEAT
71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH
71054SSPRING SUB-ASSY, FRONT SEATBACK, LH
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
BLACK SWEETPEA,TRIM2#
BLACK/BLUE,TRIM21
BLACK/GRAY,TRIM20
BLACK SWEETPEA,TRIM20
BLACK,TRIM20
BLACK/GR RED,TRIM2#
BLACK,TRIM2#
BLACK/CORAL,TRIM21,22
BLACK/GRAY,TRIM20
BLACK,TRIM2#
LT.GRAY,TRIM1#
GRAY,TRIM1#
BLACK,TRIM2#
TAUPE,TRIM4#
GR-S SEAT(HIGH)&SEAT HEATER-WITH(*DRP),BLACK,TRIM2#
GR-S SEAT(HIGH),BLACK,TRIM2#
GR-S SEAT(HIGH),BLACK,TRIM2#
FRONT SEAT VERTICAL ADJUSTER-*DRS:MANUAL/*PAS:MANUAL&SEAT LUMBAR SUPPORT-WITH&SEATHEATER-WITH(*DRP),GRAY/CORAL,TRIM1#
FRONT SEAT VERTICAL ADJUSTER-*DRS:MANUAL/*PAS:MANUAL&SEAT LUMBAR SUPPORT-WITH&SEATHEATER-WITH(*DRP),GRAY NO.205,TRIM2#
FRONT SEAT VERTICAL ADJUSTER-*DRS:MANUAL/*PAS:MANUAL&SEAT LUMBAR SUPPORT-WITH&SEATHEATER-WITH(*DRP),TAUPE SWEETPEA,TRIM4#
SEAT HEATER-WITH(*DRP),LT. GRAY,TRIM1#
SEAT HEATER-WITH(*DRP),BLACK/CORAL,TRIM21
SEAT HEATER-WITH(*DRP),BLACK/GRAY,TRIM2#
FRONT SEAT VERTICAL ADJUSTER-*DRS:MANUAL/*PAS:MANUAL&SEAT HEATER-WITH(*DRP),BLACKSWEETPEA,TRIM20; SEAT HEATER-WITH(*DRP),BLACK SWEETPEA,TRIM20
FRONT SEAT VERTICAL ADJUSTER-*DRS:MANUAL/*PAS:MANUAL&SEAT HEATER-WITH(*DRP),BLACK,TRIM20; SEAT HEATER-WITH(*DRP),BLACK,TRIM20
FRONT SEAT VERTICAL ADJUSTER-*DRS:MANUAL/*PAS:MANUAL&SEAT LUMBAR SUPPORT-WITH&SEATHEATER-WITH(*DRP),BLACK SWEETPEA,TRIM20
FRONT SEAT VERTICAL ADJUSTER-*DRS:MANUAL/*PAS:MANUAL&SEAT LUMBAR SUPPORT-WITH&SEATHEATER-WITH(*DRP),BLACK,TRIM20
SEAT HEATER-WITH(*DRP),BLACK/BLUE,TRIM21
SEAT HEATER-WITH(*DRP),BLACK/GRAY,TRIM20
SEAT HEATER-WITH(*DRP),BLACK/BLACK,TRIM2#
FRONT SEAT VERTICAL ADJUSTER-*DRS:MANUAL/*PAS:MANUAL&SEAT HEATER-WITH(*DRP),GRAY,TRIM1#
SEAT HEATER-WITH(*DRP),BLACK,TRIM2#
SEAT HEATER-WITH(*DRP),TAUPE,TRIM4#
SEAT HEATER-WITH(*DRP),BLACK/CORAL,TRIM21
SEAT HEATER-WITH(*DRP),BLACK/GRAY,TRIM20
SEAT HEATER-WITH(*DRP),LT.GRAY,TRIM1#
ELEGANT PLUS PACKAGE(*LES, ACCESSORY)&SEAT HEATER-WITH(*DRP); LEATHER SEAT(ACCESSORY) PACKAGE&SEAT HEATER-WITH(*DRP)
ELEGANT PLUS PACKAGE(*LES, ACCESSORY); LEATHER SEAT(ACCESSORY) PACKAGE
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
BLACK,TRIM2#
BLACK/BLUE,TRIM21
BLACK/GRAY,TRIM20
BLACK SWEETPEA,TRIM20
BLACK,TRIM20
BLACK/CORAL,TRIM21,22
BLACK/GRAY,TRIM20
CORAL,TRIM21
GRAY NO.205,TRIM20
GRAY,TRIM2#
LT.GRAY,TRIM1#
LT. GRAY,TRIM1#
LT. GRAY,TRIM1#
BLACK/CORAL,TRIM21,22
BLACK/GRAY,TRIM20
BLACK,TRIM2#
TAUPE/BLACK,TRIM4#
BLACK/BLACK,TRIM2#
GRAY/BLACK,TRIM1#
LT.GRAY,TRIM1#
FRONT SEAT VERTICAL ADJUSTER-*DRS:MANUAL/*PAS:MANUAL&SEAT HEATER-WITH(*DRP),BLACKSWEETPEA,TRIM20; FRONT SEAT VERTICAL ADJUSTER-*DRS:MANUAL/*PAS:MANUAL&SEAT LUMBAR SUPPORT-WITH&SEATHEATER-WITH(*DRP),BLACK SWEETPEA,TRIM20; SEAT HEATER-WITH(*DRP),BLACK SWEETPEA,TRIM20
FRONT SEAT VERTICAL ADJUSTER-*DRS:MANUAL/*PAS:MANUAL&SEAT HEATER-WITH(*DRP),BLACK,TRIM20; FRONT SEAT VERTICAL ADJUSTER-*DRS:MANUAL/*PAS:MANUAL&SEAT LUMBAR SUPPORT-WITH&SEATHEATER-WITH(*DRP),BLACK,TRIM20; SEAT HEATER-WITH(*DRP),BLACK,TRIM20
SEAT HEATER-WITH(*DRP),BLACK,TRIM2#
GR-S SEAT(HIGH),BLACK,TRIM2#
GR-S SEAT(HIGH),MEDIUM GRAY/GR RED GOSEN,TRIM2#
SEAT HEATER-WITH(*DRP),BLACK/BLUE,TRIM21
SEAT HEATER-WITH(*DRP),BLACK/GRAY,TRIM20
FRONT SEAT VERTICAL ADJUSTER-*DRS:MANUAL/*PAS:MANUAL&SEAT HEATER-WITH(*DRP),TAUPE/BLACK,TRIM4#
SEAT HEATER-WITH(*DRP),BLACK/BLACK,TRIM2#
FRONT SEAT VERTICAL ADJUSTER-*DRS:MANUAL/*PAS:MANUAL&SEAT LUMBAR SUPPORT-WITH&SEATHEATER-WITH(*DRP),GRAY/BLACK,TRIM1#
SEAT HEATER-WITH(*DRP),BLACK/CORAL,TRIM21
SEAT HEATER-WITH(*DRP),BLACK/GRAY,TRIM2#
SEAT HEATER-WITH(*DRP),CORAL,TRIM21
SEAT HEATER-WITH(*DRP),GRAY NO.205,TRIM20
SEAT HEATER-WITH(*DRP),LT.GRAY,TRIM1#
SEAT HEATER-WITH(*DRP),LT. GRAY,TRIM1#
ELEGANT PLUS PACKAGE(*LES, ACCESSORY); LEATHER SEAT(ACCESSORY) PACKAGE
ELEGANT PLUS PACKAGE(*LES, ACCESSORY); LEATHER SEAT(ACCESSORY) PACKAGE
ELEGANT PLUS PACKAGE(*LES, ACCESSORY)&SEAT HEATER-WITH(*DRP); LEATHER SEAT(ACCESSORY) PACKAGE&SEAT HEATER-WITH(*DRP)
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
71588PROTECTOR, FRONT SEATBACK EDGE, NO.2
71751HANGER, SEAT COVER
71759CHOOK, FRONT SEATBACK, NO.1
71812DSHIELD, FRONT SEAT CUSHION, LH
BLACK,TRIM2#; FRONT SEAT VERTICAL ADJUSTER-*DRS:MANUAL/*PAS:MANUAL&SEAT LUMBAR SUPPORT-WITH&SEATHEATER-WITH(*DRP),BLACK,TRIM2#; FRONT SEAT VERTICAL ADJUSTER-*DRS:MANUAL/*PAS:MANUAL&SEAT LUMBAR SUPPORT-WITH,BLACK,TRIM2#
main71812-K0010-C0iKSP211,MXPH11..LHD..G; MXPA11..(S,V)..FRP;MXPH11..RHD..(S,V);MXPA11..(N,S)..CZEP;KSP211,MXPH11..LHD..(R,S,V); MXPA11..G;KSP211,MXPH11..RHD..G; MXPA11..LHD..N..FRP;KSP211,MXPH11..LHD..N202007
BLACK,TRIM1#; BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#
BLACK,TRIM1#,2#,4#
7181BHOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH
71849CAP, SEAT ADJUSTER COVER, LH
main71849-F4010-C2iKSP211,MXPH11..LHD..G; MXPA11..(S,V)..FRP;MXPH11..RHD..(S,V);MXPA11..(N,S)..CZEP;KSP211,MXPH11..LHD..(R,S,V); MXPA11..G;KSP211,MXPH11..RHD..G; MXPA11..LHD..N..FRP;KSP211,MXPH11..LHD..N202007
BLACK,TRIM1#; BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#
71862SHIELD, FRONT SEAT CUSHION, INNER LH
main71862-K0010-C0iKSP211,MXPH11..LHD..G; MXPA11..(S,V)..FRP;MXPH11..RHD..(S,V);MXPA11..(N,S)..CZEP;KSP211,MXPH11..LHD..(R,S,V); MXPA11..G;KSP211,MXPH11..RHD..G; MXPA11..LHD..N..FRP;KSP211,MXPH11..LHD..N202007
BLACK,TRIM1#; BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#
BLACK,TRIM2#
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
71874ASHIELD, FRONT SEAT CUSHION, LOWER LH
71875GCOVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT)
BLACK,TRIM1#,2#,4#
main71876-K0040-C0iKSP211,MXPH11..LHD..G; MXPA11..(S,V)..FRP;MXPH11..RHD..(S,V);MXPA11..(N,S)..CZEP;KSP211,MXPH11..LHD..(R,S,V); MXPA11..G;KSP211,MXPH11..RHD..G; MXPA11..LHD..N..FRP;KSP211,MXPH11..LHD..N202007
BLACK,TRIM1#; BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#
71876GCOVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT)
BLACK,TRIM2#
main71876-K0010-C0iKSP211,MXPH11..LHD..G; MXPA11..(S,V)..FRP;MXPH11..RHD..(S,V);MXPA11..(N,S)..CZEP;KSP211,MXPH11..LHD..(R,S,V); MXPA11..G;KSP211,MXPH11..RHD..G; MXPA11..LHD..N..FRP;KSP211,MXPH11..LHD..N202007
BLACK,TRIM1#; BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#
71910FHEADREST ASSY, FRONT SEAT, LH
BLACK,TRIM2#
BLACK,TRIM2#
BLACK/BLACK,TRIM4#
BLACK/CORAL,TRIM1#
BLACK/GRAY,TRIM20
BLACK/BLACK,TRIM20
LT.GRAY,TRIM1#
BLACK/CORAL,TRIM21,22
BLACK/GRAY,TRIM2#
BLACK/BLUE,TRIM21
71930FSUPPORT ASSY, FRONT SEAT HEADREST, LH
W(LOCK),LT.GRAY,TRIM1#
W(LOCK),BLACK,TRIM2#
W/O(LOCK),LT.GRAY,TRIM1#
W/O(LOCK),BLACK,TRIM2#
72020ADJUSTER ASSY, FRONT SEAT, LH
72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH
main72123-K0010-C0iKSP211..N;MXPA11..RHD..CVT..N; MXPA11..S,V;KSP211..LHD..R;MXPH11..R..CZEP; MXPH11..G;MXPA11..LHD..G..FRP202007
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#
72125VCOVER, SEAT TRACK, UPPER REAR LH
72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH
BLACK,TRIM1#,2#
72138NCOVER, SEAT TRACK BRACKET, OUTER REAR LH
BLACK,TRIM1#,2#
72158ECOVER, SEAT TRACK BRACKET, INNER REAR LH
BLACK,TRIM1#,2#
72211CHANDLE, SEAT TRACK ADJUSTING
72266COVER, SEAT TRACK UPPER RAIL, LH
72495HANDLE, VERTICAL ADJUSTING, LH
main72495-K0010-C0iKSP211,MXPH11..LHD..G; MXPA11..(S,V)..FRP;MXPH11..RHD..(S,V);MXPA11..(N,S)..CZEP;KSP211,MXPH11..LHD..(R,S,V); MXPA11..G;KSP211,MXPH11..RHD..G; MXPA11..LHD..N..FRP;KSP211,MXPH11..LHD..N202007
BLACK,TRIM1#; BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#
72498ACOVER, VERTICAL ADJUSTER BRACKET, LH
main72498-F4020-C1iKSP211,MXPH11..LHD..G; MXPA11..(S,V)..FRP;MXPH11..RHD..(S,V);MXPA11..(N,S)..CZEP;KSP211,MXPH11..LHD..(R,S,V); MXPA11..G;KSP211,MXPH11..RHD..G; MXPA11..LHD..N..FRP;KSP211,MXPH11..LHD..N202007
BLACK,TRIM1#; BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#
72526HANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-K0010-C0iKSP211,MXPH11..LHD..G; MXPA11..(S,V)..FRP;MXPA11..(N,S)..CZEP;KSP211,MXPH11..R,S,V; MXPA11..G;KSP211,MXPH11..RHD..G; MXPA11..N..FRP;KSP211,MXPH11..N202007
BLACK,TRIM1#; BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#
72552BCOVER, RECLINING HINGE, LH
main72551-K0010-C0iKSP211,MXPH11..G; MXPA11..(S,V)..FRP;MXPA11..(N,S)..CZEP;KSP211,MXPH11..R,S,V; MXPA11..G; MXPA11..N..FRP;KSP211,MXPH11..N202007
BLACK,TRIM1#; BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
FRONT SEAT VERTICAL ADJUSTER-*DRS:MANUAL/*PAS:MANUAL&SEAT LUMBAR SUPPORT-WITH; FRONT SEAT VERTICAL ADJUSTER-*DRS:MANUAL/*PAS:MANUAL&SEAT LUMBAR SUPPORT-WITH&SEATHEATER-WITH(*DRP)
73920AAIRBAG ASSY, FRONT SEAT, LH
main73920-K0010iMXPA11..N,S,V;KSP211..RHD..N;MXPA11..LHD..G;MXPH11..LHD..R;MXPH11..G,N,S,V;KSP211..LHD..(N,R)202007-202207
739J0AIRBAG ASSY, FRONT SEAT CENTER, LH
76854CRETAINER, FRONT SEAT CUSHION COVER
79197HOOK, SEATBACK COVER
8202WIRING & CLAMP
82667DHOLDER, CONNECTOR
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
FRONT SEAT VERTICAL ADJUSTER-*DRS:MANUAL/*PAS:MANUAL&SEAT LUMBAR SUPPORT-WITH&SEATHEATER-WITH(*DRP)
SEAT HEATER-WITH(*DRP)
SEAT HEATER-WITH(*DRP)
GR-S SEAT(HIGH)&SEAT HEATER-WITH(*DRP)
87510NHEATER ASSY, FRONT SEATBACK, LH
FRONT SEAT VERTICAL ADJUSTER-*DRS:MANUAL/*PAS:MANUAL&SEAT HEATER-WITH(*DRP); FRONT SEAT VERTICAL ADJUSTER-*DRS:MANUAL/*PAS:MANUAL&SEAT LUMBAR SUPPORT-WITH&SEATHEATER-WITH(*DRP); SEAT HEATER-WITH(*DRP)
SEAT HEATER-WITH(*DRP)
9011910601
main90119-10601
90148W0017
main90148-W0017
9017906159
main90179-06159
9356054012
main93560-54012
46 parts on this diagram · 4 diagrams in section
