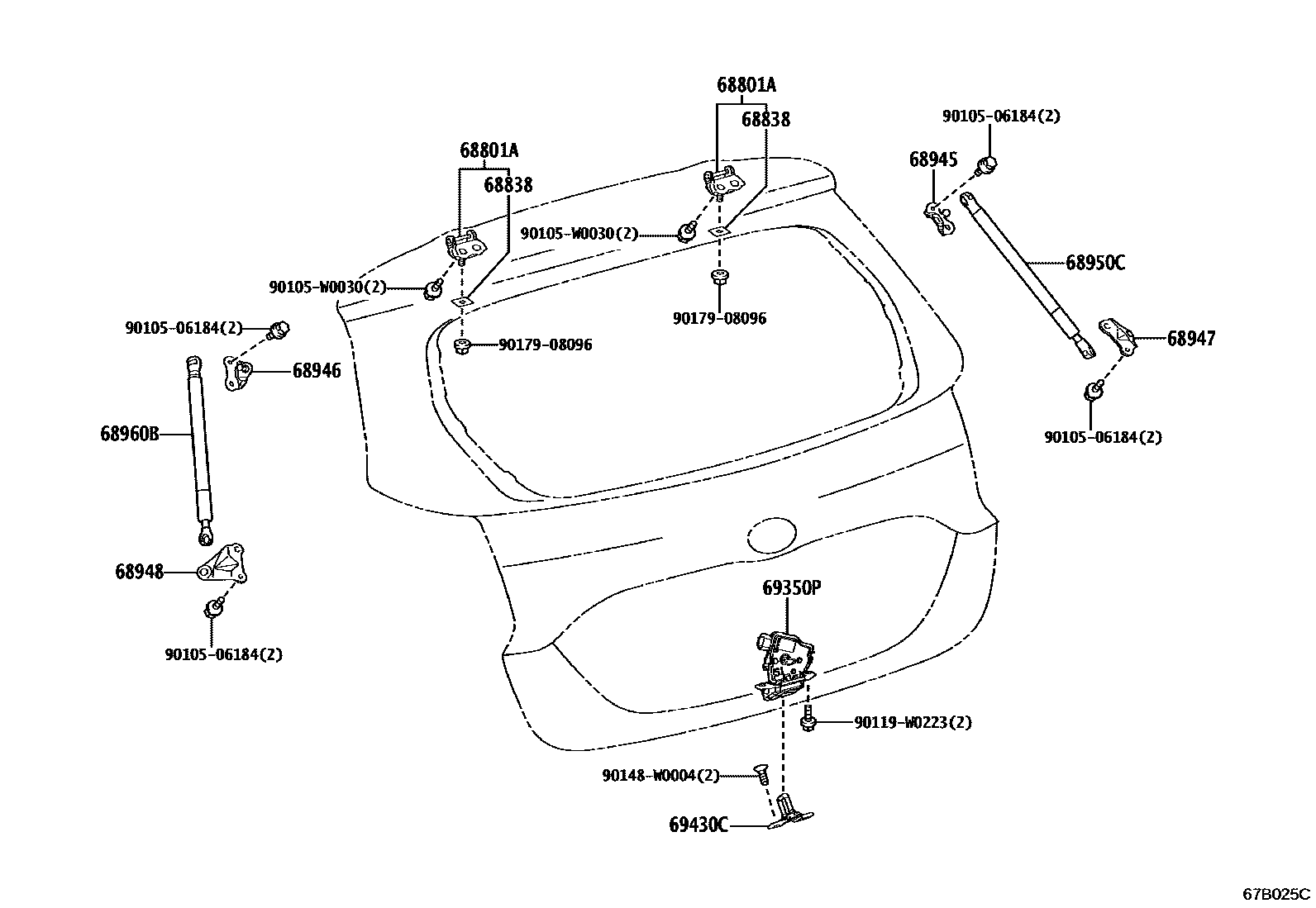

BACK DOOR LOCK & HANDLE

68801AHINGE SUB-ASSY, BACK DOOR, UPPER

main68801-0D390×2iKSP211..N,R;MXPA11,MXPH11202007-202109

main68801-0H100×2iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

PAD T=1.0

main68801-0H110×2iMXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP202110-202401

68838PAD, BACK DOOR HINGE, NO.1

main68838-0H020×2iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

T=1.0

main68838-0H030×2iMXPH1#..N,S,V;MXPH11..R..FRP202401

T=1.5

main68838-K0020×2iKSP211..N,R;MXPA11,MXPH11202007-202110

T=1.0

68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH

main68945-K0020iMXPH11..G;KSP211..RHD..N;MXPH11..R..CZEP;KSP211..LHD..(N,R);MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007

68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH

main68946-K0060iKSP211..G202007-202105

68947BRACKET, BACK DOOR DAMPER STAY, LOWER RH

main68947-K0020iKSP211..G202007-202105

68948BRACKET, BACK DOOR DAMPER STAY, LOWER LH

main68948-K0020iKSP211..G202007-202105

68950CSTAY ASSY, BACK DOOR, RH

main68950-K0020supersedes 68950-K0010iMXPA11..6F..N;MXPA11..LHD..CVT..N202401-202407

68960BSTAY ASSY, BACK DOOR, LH

main68960-K0020supersedes 68960-K0010iMXPA11..RHD..G202007-202205

PACKAGE TRAY TRIM OR TONNEAU COVER-WITH(PACKAGE TRAY TRIM)

69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH

main69350-02090supersedes 69350-52380iMXPH1#..RHD..(N,S,V)202401

IRELAND,CYPRUS SPEC

69430CSTRIKER ASSY, BACK DOOR LOCK

main69430-02030iMXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP202007-202401

9010506184

main90105-06184

90105W0030

main90105-W0030

90119W0223

main90119-W0223

90148W0004

main90148-W0004

9017908096

main90179-08096

15 parts on this diagram · 1 diagram in section
