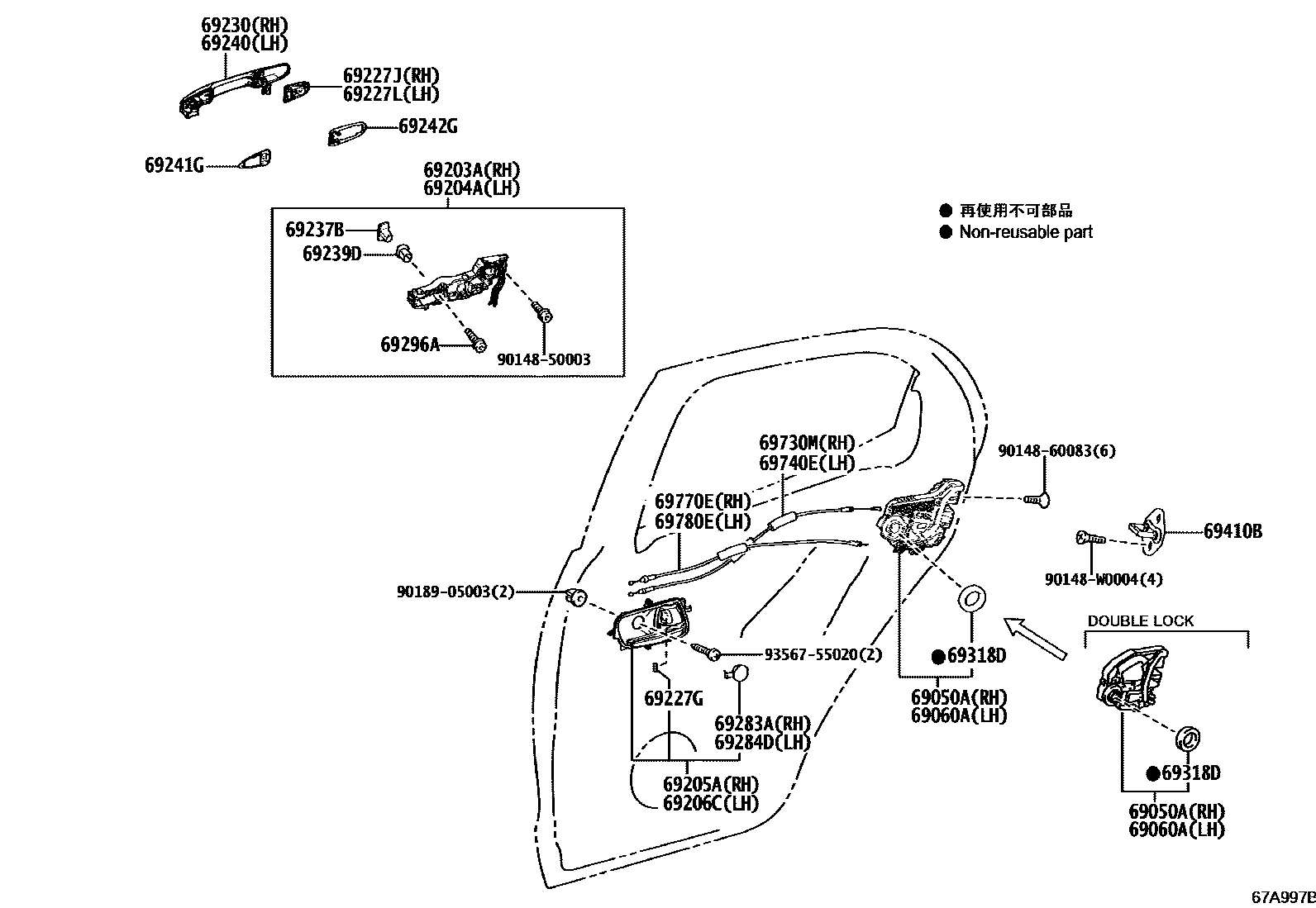

REAR DOOR LOCK & HANDLE
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
IRELAND, CYPRUS SPEC&LW PACKAGE&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)
MALTA SPEC
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&WIRELESS DOOR LOCK-WITH
IRELAND, CYPRUS SPEC
IRELAND, CYPRUS SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)
IRELAND, CYPRUS SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)
IRELAND, CYPRUS SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)
MALTA SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)
MALTA SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)
MALTA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&WIRELESS DOOR LOCK-WITH(SMART ENTRY &ID)
WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)
IRELAND,CYPRUS SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)
IRELAND,CYPRUS SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)
IRELAND,CYPRUS SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)
LW PACKAGE&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)
IRELAND,CYPRUS SPEC
IRELAND,CYPRUS SPEC&LW PACKAGE&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&DATA COMMUNICATION MODULE-WITHOUT
IRELAND,CYPRUS SPEC&LW PACKAGE
IRELAND,CYPRUS SPEC
LW PACKAGE
MALTA SPEC
IRELAND, CYPRUS SPEC
IRELAND, CYPRUS SPEC&LW PACKAGE
WIRELESS DOOR LOCK-WITH
DATA COMMUNICATION MODULE-WITHOUT
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
main69060-0D170iKSP211..RHD..N;MXPH11..RHD..G;MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007-202401
MALTA SPEC
IRELAND, CYPRUS SPEC
IRELAND, CYPRUS SPEC&LW PACKAGE&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&WIRELESS DOOR LOCK-WITH
IRELAND, CYPRUS SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)
IRELAND, CYPRUS SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)
IRELAND, CYPRUS SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)
MALTA SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)
MALTA SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)
MALTA SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&WIRELESS DOOR LOCK-WITH(SMART ENTRY &ID)
WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)
ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&DATA COMMUNICATION MODULE-WITHOUT
IRELAND,CYPRUS SPEC
IRELAND,CYPRUS SPEC&LW PACKAGE&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)
IRELAND,CYPRUS SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)
IRELAND,CYPRUS SPEC&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)&WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)
IRELAND,CYPRUS SPEC&WIRELESS DOOR LOCK-WITH(SMART ENTRY & ID)
LW PACKAGE&ANTI-THEFT SYSTEM-WITH(IMMOBILIZER & ALARM)
IRELAND, CYPRUS SPEC
DATA COMMUNICATION MODULE-WITHOUT
WIRELESS DOOR LOCK-WITH
MALTA SPEC
IRELAND, CYPRUS SPEC&LW PACKAGE
IRELAND,CYPRUS SPEC
IRELAND,CYPRUS SPEC&LW PACKAGE
LW PACKAGE
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM1#,2#,4#
BLACK,TRIM1#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
BLACK,TRIM1#,2#
BLACK,TRIM2#
BLACK,TRIM1#
BLACK,TRIM1#,2#,4#
69227GPLATE(FOR REAR DOOR LOCK INSIDE HANDLE)
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
main69211-02934iMXPH11..G;KSP211..RHD..N;MXPH11..R..CZEP;KSP211..LHD..(N,R);MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007-202407
PAINT REQ.
69237BNUT, REAR DOOR HANDLE
sub69237-0E010
69239DBUSH, REAR DOOR HANDLE
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
PAINT REQ.
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM1#
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM1#,2#,4#
BLACK,TRIM2#
BLACK,TRIM1#,2#
BLACK,TRIM1#
69296ASCREW, DOOR INSIDE HANDLE
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730MCABLE, REAR DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)
main69730-K0031iKSP211..LHD..(N,R);MXPH11..(G,R)..CZEP;MXPH11..LHD..G..FRP;MXPA11..LHD..(G,S,V)202009-202401
MALTA SPEC
main69730-K0031iKSP211..LHD..(N,R);MXPH11..(G,R)..CZEP;MXPH11..LHD..G..FRP;MXPA11..LHD..(G,S,V)202009-202401
IRELAND, CYPRUS SPEC
IRELAND,CYPRUS SPEC
sub69730-K0041
69740ECABLE, REAR DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)
IRELAND,CYPRUS SPEC
MALTA SPEC
IRELAND, CYPRUS SPEC
sub69730-K0041
69770ECABLE, REAR DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)
main69770-K0031iKSP211..RHD..N;MXPH11..RHD..G;MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202009-202401
MALTA SPEC
IRELAND, CYPRUS SPEC
IRELAND,CYPRUS SPEC
sub69770-K0041
69780ECABLE, REAR DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)
IRELAND, CYPRUS SPEC
MALTA SPEC
IRELAND,CYPRUS SPEC
sub69770-K0041
9014850003
main90148-50003
9014860083
main90148-60083
90148W0004
main90148-W0004
9018905003
main90189-05003
9356755020
main93567-55020
29 parts on this diagram · 1 diagram in section
