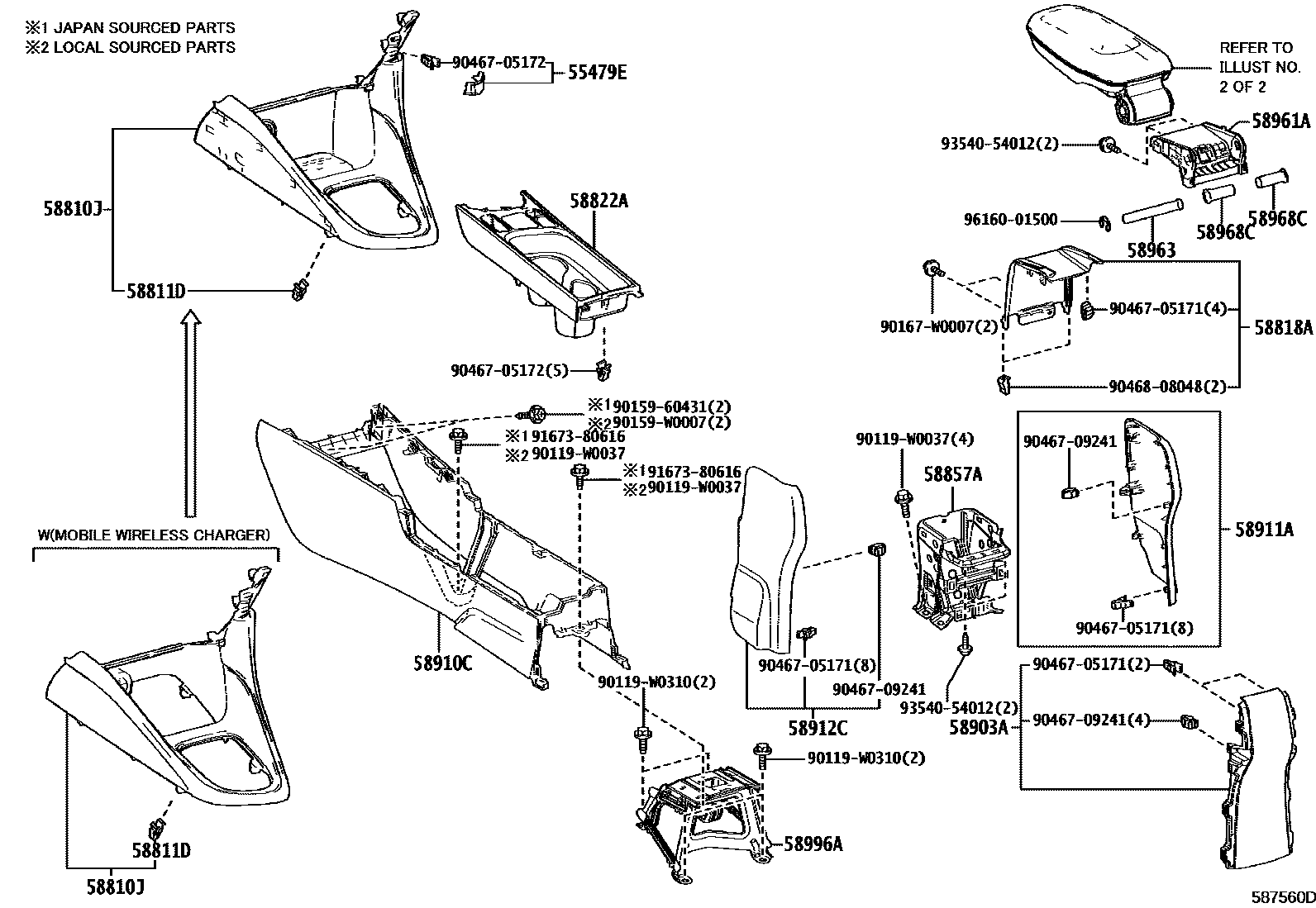

CONSOLE BOX & BRACKET
55479ECOVER, INSTRUMENT, LOWER CENTER
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#
main55479-K0030-C0iKSP211..LHD..N; MXPA11..LHD..G; MXPH11..LHD..G; MXPH11..R..CZEP;KSP211,MXPA11..LHD..(R,S,V)202007
BLACK,TRIM1#; BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#
58810JBOX ASSY, CONSOLE
BLACK,TRIM2#; BLACK,TRIM20; BLACK,TRIM20,21
BLACK/SILVER,TRIM20
BLACK,TRIM2#; LW PACKAGE,BLACK,TRIM20
BLACK,TRIM2#; BLACK,TRIM20; BLACK,TRIM20,21
BLACK/SILVER,TRIM2#; BLACK/SILVER,TRIM20; BLACK/SILVER,TRIM21
BLACK/BLACK,TRIM2#; BLACK/BLACK,TRIM20
BLACK/BLACK,TRIM1#; BLACK/BLACK,TRIM20,21,22
BLACK/SILVER,TRIM2#; BLACK/SILVER,TRIM20
BLACK/BLACK,TRIM2#; BLACK/BLACK,TRIM20
BLACK/SILVER,TRIM2#; BLACK/SILVER,TRIM20; BLACK/SILVER,TRIM21
BLACK/BLACK,TRIM2#; BLACK/BLACK,TRIM20
BLACK/BLACK,TRIM1#; BLACK/BLACK,TRIM20,21,22
BLACK/SILVER,TRIM2#; BLACK/SILVER,TRIM20
BLACK/BLACK,TRIM2#; BLACK/BLACK,TRIM20
LW PACKAGE,BLACK,TRIM20
WIRELESS CHARGER-WITH,LT.GRAY/LIGHT SHADOW,TRIM1#
WIRELESS CHARGER-WITH,BLACK/ROSE METALLIC,TRIM4#
main58810-0D250-C2supersedes 58810-K0080-C1iKSP211,MXPA11,MXPH11..RHD..N; MXPA11,MXPH11..RHD..S202007-202101
WIRELESS CHARGER-WITH,BLACK/BLACK,TRIM1#; WIRELESS CHARGER-WITH,BLACK/BLACK,TRIM20,21,22
main58810-0D250-C3supersedes 58810-K0080-C2iKSP211,MXPA11,MXPH11..RHD..N; MXPA11,MXPH11..RHD..S202007-202101
WIRELESS CHARGER-WITH,BLACK/SILVER,TRIM2#; WIRELESS CHARGER-WITH,BLACK/SILVER,TRIM21
WIRELESS CHARGER-WITH,LT.GRAY/LIGHT SHADOW,TRIM1#
WIRELESS CHARGER-WITH,BLACK/ROSE METALLIC,TRIM4#
main58810-0D251-C2supersedes 58810-K0081-C1iKSP211..RHD..N;MXPA11..RHD..CVT..N; MXPA11..RHD..S202102
WIRELESS CHARGER-WITH,BLACK/BLACK,TRIM1#; WIRELESS CHARGER-WITH,BLACK/BLACK,TRIM2#
WIRELESS CHARGER-WITH,BLACK/SILVER,TRIM2#
WIRELESS CHARGER-WITH,BLACK/SMOKE SILVER METALL,TRIM2#
WIRELESS CHARGER-WITH,LT.GRAY LIGHT SHADOW,TRIM1#
WIRELESS CHARGER-WITH,BLACK/ROSE METALLIC,TRIM4#
main58810-0D260-C2supersedes 58810-K0110-C1iKSP211,MXPA11,MXPH11..LHD..N; MXPA11,MXPH11..LHD..S202007-202101
WIRELESS CHARGER-WITH,BLACK/BLACK,TRIM1#; WIRELESS CHARGER-WITH,BLACK/BLACK,TRIM20,21,22
WIRELESS CHARGER-WITH,BLACK/SILVER,TRIM2#; WIRELESS CHARGER-WITH,BLACK/SILVER,TRIM21
WIRELESS CHARGER-WITH,LT.GARY/LIGHT SHADOW,TRIM1#
WIRELESS CHARGER-WITH,BLACK/ROSE METALLIC,TRIM4#
WIRELESS CHARGER-WITH,BLACK/BLACK,TRIM1#; WIRELESS CHARGER-WITH,BLACK/BLACK,TRIM2#
WIRELESS CHARGER-WITH,BLACK/SILVER,TRIM2#
WIRELESS CHARGER-WITH,BLACK/SMOKE SILVER METALL,TRIM2#
ILLUMINATED ENTRY SYSTEM-WITH(MAP LAMP & DOOR)&WIRELESS CHARGER-WITH,BLACK,TRIM2#; ILLUMINATED ENTRY SYSTEM-WITH(MAP LAMP & DOOR)&WIRELESS CHARGER-WITH,BLACK,TRIM20; WIRELESS CHARGER-WITH,BLACK,TRIM2#; WIRELESS CHARGER-WITH,BLACK,TRIM20
WIRELESS CHARGER-WITH,BLACK/SMOKE SILVER MC.,TRIM2#
ILLUMINATED ENTRY SYSTEM-WITH(MAP LAMP & DOOR)&WIRELESS CHARGER-WITH,BLACK/SILVER,TRIM20; WIRELESS CHARGER-WITH,BLACK/SILVER,TRIM20
ILLUMINATED ENTRY SYSTEM-WITH(MAP LAMP & DOOR)&WIRELESS CHARGER-WITH,BLACK,TRIM2#; ILLUMINATED ENTRY SYSTEM-WITH(MAP LAMP & DOOR)&WIRELESS CHARGER-WITH,BLACK,TRIM20; WIRELESS CHARGER-WITH,BLACK,TRIM2#; WIRELESS CHARGER-WITH,BLACK,TRIM20
WIRELESS CHARGER-WITH,BLACK/SMOKE SILVER MC.,TRIM2#
ILLUMINATED ENTRY SYSTEM-WITH(MAP LAMP & DOOR)&WIRELESS CHARGER-WITH,BLACK/SILVER,TRIM20; WIRELESS CHARGER-WITH,BLACK/SILVER,TRIM20
58811DCLIP(FOR CONSOLE BOX)
58818ACOVER, CONSOLE BOX, FR
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#
58822APANEL, CONSOLE, UPPER REAR
main58822-K0020-C0iKSP211..N;MXPA11..RHD..CVT..N; MXPA11..LHD..G..FRP; MXPA11..S,V;KSP211..LHD..R202007
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#
BLACK,TRIM1#,2#; BLACK,TRIM2#
58857ABRACKET, CONSOLE SUPPORT, UPPER NO.1
58903APANEL SUB-ASSY, CONSOLE REAR END
BLACK,TRIM1#,2#; BLACK,TRIM2#
BLACK,TRIM2#
58910CBOX ASSY, CONSOLE, REAR
main58910-K0010-C0iMXPA11..G; MXPH11..G..CZEP;MXPH11..(G,N)..FRP;KSP211,MXPA11..N..FRP; MXPH11..R,S,V;MXPH11..N..CZEP;KSP211,MXPA11..(R,S,V)..FRP;KSP211,MXPA11..(N,R,S)..CZEP202311
BLACK,TRIM1#,(J); BLACK,TRIM1#,2#,(J); BLACK,TRIM2#,(J)
main58910-K0030-C0iKSP211,MXPA11,MXPH11..G; KSP211,MXPA11,MXPH11..N; KSP211,MXPA11,MXPH11..R,S202007-202102
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#; BLACK,TRIM2#
main58910-K0031-C0iKSP211,MXPA11,MXPH11..N..FRP; KSP211,MXPH11..N..CZEP; MXPA11..(S,V)..FRP;MXPA11..(N,S)..CZEP;KSP211,MXPH11..R,S,V; MXPA11..G; MXPH11..G202311
BLACK,TRIM1#,(L); BLACK,TRIM1#,2#,(L); BLACK,TRIM1#,2#,4#,(L); BLACK,TRIM2#,(L); BLACK,TRIM2#,4#,(L)
58911APANEL, BOX SIDE, NO.1
BLACK,TRIM1#,2#,4#; BLACK,TRIM2#
58912CPANEL, BOX SIDE, NO.2
BLACK,TRIM1#,2#; BLACK,TRIM2#
58961AHINGE, CONSOLE COMPARTMENT DOOR MALE
58963SHAFT, CONSOLE COMPARTMENT DOOR HINGE
58968CSHIM, CONSOLE COMPARTMENT DOOR STOPPER
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
90119W0037
main90119-W0037
90119W0310
main90119-W0310
9015960431
main90159-60431
90159W0007
main90159-W0007
90167W0007
main90167-W0007
9046705171
main90467-05171
9046705172
main90467-05172
9046709241
main90467-09241
9046808048
main90468-08048
9167380616
main91673-80616
9354054012
main93540-54012
9616001500
main96160-01500
26 parts on this diagram · 5 diagrams in section
