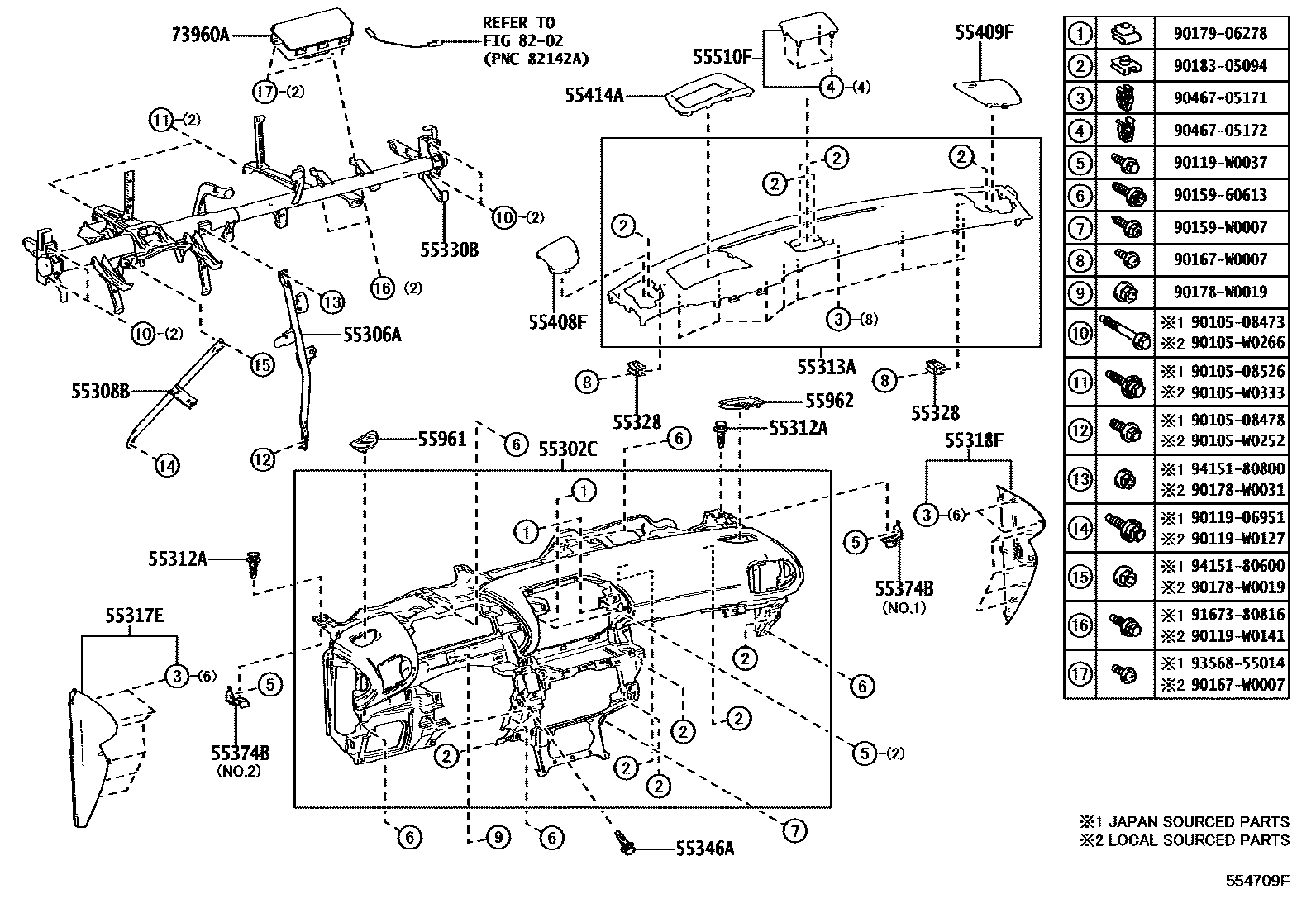

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1DRIVER SIDE 0003 1CENTER 0004 1PASSENGER SIDE 0005 1 0006 1DRIVER SIDE 0007 1CENTER 0008 1PASSENGER SIDE

55302CPANEL SUB-ASSY, INSTRUMENT

main55302-0D340-C0iKSP211,MXPH11..N..CZEP202111-202202

SOFT BLACK,TRIM1#,2#

main55302-0D340-C0iKSP211,MXPH11..(R,S)..CZEP202111-202202

SOFT BLACK,TRIM2#

main55302-0D341-C0iMXPH11..G..CZEP202208

SOFT BLACK,TRIM1#

main55302-0D341-C0iMXPA11..G..CZEP202208-202407

SOFT BLACK,TRIM2#

main55302-0D341-C0iKSP211..CZEP;MXPA11..S..CZEP;MXPH11..R..CZEP202208

SOFT BLACK,TRIM1#,2#

main55302-0D341-C0iMXPH11..S..CZEP202401

AUDIO-9INCH *DA,SOFT BLACK,TRIM2#

main55302-0D360-C0iMXPH11..RHD..N202401

AUDIO-10.5INCH DISPLAY(T1),SOFT BLACK,TRIM2#

main55302-0D360-C0iMXPH11..RHD..N202401

AUDIO-10.5INCH DISPLAY(T2),SOFT BLACK,TRIM2#

main55302-0D360-C0iMXPH11..RHD..N202401

SOFT BLACK,TRIM2#

main55302-0D370-C0iMXPH11..LHD..N..FRP202401

SOFT BLACK,TRIM2#

main55302-0D370-C0iMXPH11..LHD..N..FRP202401

AUDIO-10.5INCH DISPLAY(T2),SOFT BLACK,TRIM2#

main55302-0D370-C0iMXPH11..LHD..N..FRP202401

AUDIO-10.5INCH DISPLAY(T1),SOFT BLACK,TRIM2#

main55302-0D380-C0iMXPH1#..S..CZEP202401

AUDIO-10.5INCH DISPLAY(T1),SOFT BLACK,TRIM2#

main55302-0D380-C0iMXPH11..N..CZEP202401

AUDIO-10.5INCH DISPLAY(T2),SOFT BLACK,TRIM2#

main55302-0D380-C0iMXPH11..N..CZEP202401

SOFT BLACK,TRIM2#

main55302-K0040-C0iMXPA11,MXPH11..RHD..V202007-202207

SOFT BLACK,TRIM20,22

main55302-K0040-C0iKSP211,MXPH11..RHD..R202007-202207

SOFT BLACK,TRIM2#

main55302-K0040-C0iMXPA11,MXPH11..RHD..V202007-202207

SOFT BLACK,TRIM1#,2#

main55302-K0040-E0iKSP211,MXPA11,MXPH11..RHD..N202007-202207

TAUPE,TRIM4#

main55302-K0040-J0iMXPA11,MXPH11..RHD..S202007-202207

BLUE,TRIM21

main55302-K0041-C0iMXPA11..RHD..6F..N202208-202407

SOFT BLACK,TRIM2#

main55302-K0041-C0iMXPH11..RHD..N202401

AUDIO-9INCH *DA,SOFT BLACK,TRIM2#

main55302-K0041-C0iMXPA11,MXPH11..RHD..S202208-202301

SOFT BLACK,TRIM20

main55302-K0041-C0iKSP211..RHD;MXPH11..RHD..G;MXPA11..RHD..CVT..N202208-202401

SOFT BLACK,TRIM1#,2#

main55302-K0041-E0iKSP211,MXPA11,MXPH11..RHD..N202208-202301

TAUPE,TRIM4#

main55302-K0041-J0iMXPA11,MXPH11..RHD..S202208-202301

BLUE,TRIM21

main55302-K0060-C0iKSP211..LHD..N..FRP;MXPA11,MXPH11..LHD..(G,N)..FRP202007-202207

SOFT BLACK,TRIM20,22

main55302-K0060-C0iKSP211..LHD..G202007-202208

SOFT BLACK,TRIM1#,2#

main55302-K0060-C0iMXPA11,MXPH11..LHD..S..FRP202007-202208

SOFT BLACK,TRIM2#

main55302-K0060-C0iMXPA11..G..CZEP202207-202208

SOFT BLACK,TRIM1#

main55302-K0060-E0iKSP211,MXPA11,MXPH11..LHD..N..FRP202007-202207

TAUPE,TRIM4#

main55302-K0060-J0iMXPA11,MXPH11..LHD..S..FRP202007-202207

BLUE,TRIM21

main55302-K0061-C0iKSP211,MXPA11..LHD..(R,V)..FRP202208-202407

SOFT BLACK,TRIM2#

main55302-K0061-C0iKSP211..LHD..N..FRP;MXPH11..LHD..G..FRP202208-202401

SOFT BLACK,TRIM1#,2#

main55302-K0061-C0iKSP211..LHD..N..FRP;MXPH11..LHD..G..FRP202208

SOFT BLACK,TRIM1#

main55302-K0061-C0iMXPA11,MXPH11..LHD..S..FRP202208-202301

SOFT BLACK,TRIM20

main55302-K0061-C0iMXPH11..LHD..S..FRP202401

AUDIO-9INCH *DA,SOFT BLACK,TRIM2#

main55302-K0061-E0iKSP211,MXPA11,MXPH11..LHD..N..FRP202208-202301

TAUPE,TRIM4#

main55302-K0061-J0iMXPA11,MXPH11..LHD..S..FRP202208-202301

BLUE,TRIM21

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-0D490iMXPH11..R..FRP;MXPH1#..LHD..(N,S,V)202111-202407

main55306-K0030iKSP211..LHD..G202007-202110

main55306-K0040iKSP211..RHD..G202007-202407

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-K0030iKSP211..RHD..N;MXPH11..RHD..G;MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007-202407

main55308-K0040iMXPH11..R..FRP;MXPH1#..LHD..(N,S,V)202007-202407

55312ACLIP, INSTRUMENT PANEL

main52161-02030iMXPA11..6F..N;MXPA11..LHD..CVT..N202007-202407

(L)

main52161-16010iMXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP202007-202407

(J)

55313APANEL, INSTRUMENT MAIN

main55313-0D130-C0iMXPH11..N..CZEP202111-202407

BLACK,TRIM2#

main55313-0D130-C0iKSP211..N..CZEP202111-202401

BLACK,TRIM1#,2#,4#

main55313-0D130-C0iMXPA11..G..CZEP202207

BLACK,TRIM1#

main55313-0D130-C0iMXPA11..G..CZEP202207

BLACK,TRIM1#,2#

main55313-K0050-C0iMXPA11..RHD..G202007-202205

BLACK,TRIM1#,2#

main55313-K0050-C0iMXPA11..RHD..G202007-202407

BLACK,TRIM2#

main55313-K0050-C0iMXPH11..RHD..G202007-202401

BLACK,TRIM1#,2#,4#

main55313-K0090-C0iKSP211,MXPA11..LHD..(R,S,V)..FRP202007-202105

BLACK,TRIM1#,2#

main55313-K0090-C0iMXPA11,MXPH11..LHD..N..FRP202007-202401

BLACK,TRIM1#,2#,4#

main55313-K0090-C0iMXPA11,MXPH11..LHD..N..FRP202007-202407

BLACK,TRIM2#

55317EPANEL, INSTRUMENT SIDE, NO.1

main55317-0D161-C0iMXPH11..R..FRP;MXPH1#..LHD..(N,S,V)202401

BLACK,TRIM2#

main55317-0D370iMXPA11..RHD..6F..N202401-202407

main55317-0D370-C0iMXPH1#..RHD..(N,S,V)202401

BLACK,TRIM2#

main55317-0D380iMXPA11..LHD..N202401-202407

main55317-K0020-C0iMXPA11..RHD..G202007-202401

BLACK,TRIM2#

main55317-K0020-C0iMXPA11..RHD..G202007-202205

BLACK,TRIM1#,2#

main55317-K0020-C0iMXPH11..RHD..(S,V)202007-202401

BLACK,TRIM1#,2#,4#

main55317-K0030-C0iMXPH11..LHD..G;MXPA11..LHD..G..FRP202007-202105

BLACK,TRIM1#,2#

main55317-K0030-C0iMXPH11..LHD..N;MXPA11..LHD..N..FRP202007-202401

BLACK,TRIM1#,2#,4#

main55317-K0030-C0iMXPH11..LHD..N;MXPA11..LHD..N..FRP202007-202401

BLACK,TRIM2#

main55317-K0030-C0iMXPA11..G..CZEP202207

BLACK,TRIM1#

55318FPANEL, INSTRUMENT SIDE, NO.2

main55318-0D351-C0iMXPH1#..RHD..(N,S,V)202401

BLACK,TRIM2#

main55318-0D360-C0iMXPA11..RHD..6F..N202401-202407

BLACK,TRIM2#

main55318-0D380-C0iMXPH11..R..FRP;MXPH1#..LHD..(N,S,V)202401-202407

BLACK,TRIM2#

main55318-K0020-C0iKSP211..RHD..N;MXPA11..RHD..CVT..N202007-202401

BLACK,TRIM1#,2#,4#

main55318-K0020-C0iMXPA11..RHD..G202007-202205

BLACK,TRIM1#,2#

main55318-K0020-C0iMXPH11..RHD..(S,V)202007-202401

BLACK,TRIM2#

main55318-K0030-C0iMXPH11..R..CZEP;KSP211,MXPA11..LHD..(R,S,V)202007-202401

BLACK,TRIM2#

main55318-K0030-C0iMXPH11..LHD..N;MXPA11..LHD..N..FRP202007-202401

BLACK,TRIM1#,2#,4#

main55318-K0030-C0iKSP211..LHD..N202007-202105

BLACK,TRIM1#,2#

main55318-K0030-C0iMXPA11..G..CZEP202207

BLACK,TRIM1#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-02110iMXPH1#..N,S,V;MXPH11..R..FRP202205-202407

main55328-12430iKSP211..G202007-202204

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-0D890iMXPH1#..(N,S)..CZEP202401-202407

main55330-0DA31iKSP211,MXPH11..CZEP202204-202205

main55330-0DA60iMXPH1#..RHD..(N,S,V)202401-202407

main55330-0DA70iMXPH1#..LHD..(N,R,S,V)..FRP202401-202407

main55330-K0030iKSP211,MXPA11,MXPH11..RHD202007-202205

main55330-K0031iKSP211,MXPA11,MXPH11..RHD202205

main55330-K0040iKSP211,MXPA11,MXPH11..LHD..FRP202007-202205

main55330-K0041iKSP211,MXPA11,MXPH11..LHD202205

55346ACLIP, INSTRUMENT PANEL, NO.2

main52161-02030iMXPA11..6F..N;MXPA11..LHD..CVT..N202007-202407

55374BBRACKET, INSTRUMENT PANEL

main55363-0D010iMXPH11..G;KSP211..RHD..N;MXPH11..R..CZEP;KSP211..LHD..(N,R);MXPA11..LHD..(G,S,V);MXPA11..RHD..6F..(S,V);MXPA11..RHD..CVT..(N,S)202007-202407

NO.1:REFER ILLUST.

main55363-0D020iMXPA11..6F..N;MXPA11..LHD..CVT..N202007-202407

NO.2:REFER ILLUST.

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

55414APANEL, INSTRUMENT CLUSTER FINISH, END

55510FCOVER ASSY, SPEAKER OPENING, NO.1

main55510-K0010-C0iKSP211..RHD..G202007-202205

BLACK,TRIM1#,2#

main55510-K0010-C0iKSP211,MXPH11..RHD..R202007-202407

BLACK,TRIM2#

main55510-K0010-C0iMXPH11..RHD..(S,V)202007-202401

BLACK,TRIM1#,2#,4#

main55510-K0020-C0iKSP211..LHD..N202007-202105

BLACK,TRIM1#,2#

main55510-K0020-C0iMXPH11..R..CZEP;KSP211,MXPA11..LHD..(R,S,V)202007-202401

BLACK,TRIM1#,2#,4#

main55510-K0020-C0iMXPH11..R..CZEP;KSP211,MXPA11..LHD..(R,S,V)202007-202407

BLACK,TRIM2#

main55510-K0020-C0iMXPA11..G..CZEP202207

BLACK,TRIM1#

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-K0020-C0iMXPH11..RHD..N;MXPA11..RHD..6F..N202007-202401

BLACK,TRIM1#,2#,4#

main55961-K0020-C0iMXPH11..RHD..(S,V)202007-202407

BLACK,TRIM2#

main55961-K0020-C0iMXPH11..RHD..G202007-202205

BLACK,TRIM1#,2#

main55961-K0030-C0iKSP211..LHD..N202007-202105

BLACK,TRIM1#,2#

main55961-K0030-C0iMXPH11..LHD..N;MXPA11..LHD..N..FRP202007-202401

BLACK,TRIM1#,2#,4#

main55961-K0030-C0iMXPH11..LHD..N;MXPA11..LHD..N..FRP202007-202407

BLACK,TRIM2#

main55961-K0030-C0iMXPA11..G..CZEP202207

BLACK,TRIM1#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-K0020-C0iKSP211..RHD..G202007-202205

BLACK,TRIM1#,2#

main55962-K0020-C0iKSP211,MXPH11..RHD..R202007-202407

BLACK,TRIM2#

main55962-K0020-C0iMXPH11..RHD..(S,V)202007-202401

BLACK,TRIM1#,2#,4#

main55962-K0040-C0iMXPA11..LHD..N202007-202407

BLACK,TRIM2#

main55962-K0040-C0iKSP211..LHD..G202007-202105

BLACK,TRIM1#,2#

main55962-K0040-C0iMXPH11..R..CZEP;KSP211,MXPA11..LHD..(R,S,V)202007-202401

BLACK,TRIM1#,2#,4#

main55962-K0040-C0iMXPA11..G..CZEP202207

BLACK,TRIM1#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-K0020iMXPA11..RHD..G;KSP211,MXPH11..RHD..R202007-202209

main73960-K0021iMXPA11..6F..N;MXPA11..LHD..CVT..N202210-202407

8202WIRING & CLAMP

→ Go to FIG 82-02

9010508473

main90105-08473

9010508478

main90105-08478

9010508526

main90105-08526

90105W0252

main90105-W0252

90105W0266

main90105-W0266

90105W0333

main90105-W0333

9011906951

main90119-06951

90119W0037

main90119-W0037

90119W0127

main90119-W0127

90119W0141

main90119-W0141

9015960613

main90159-60613

90159W0007

main90159-W0007

90167W0007

main90167-W0007

90178W0019

main90178-W0019

90178W0031

main90178-W0031

9017906278

main90179-06278

9018305094

main90183-05094

9046705171

main90467-05171

9046705172

main90467-05172

9167380816

main91673-80816

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

42 parts on this diagram · 8 diagrams in section
