Toyota YARIS(FRP) — STEERING WHEEL

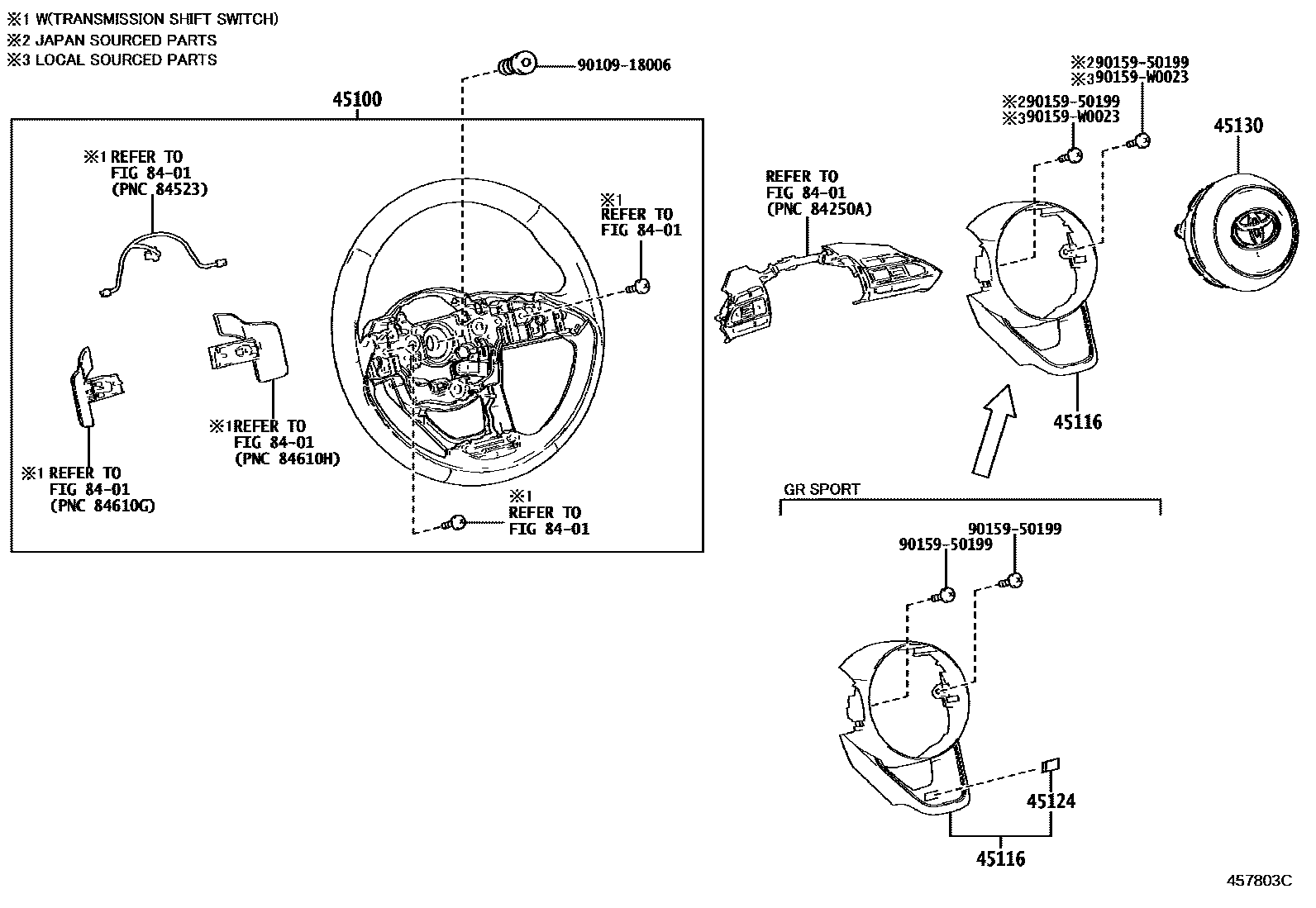

Parts diagram
45100WHEEL ASSY, STEERING
45100-K0100
45100-K0110
45100-K0120
45100-K0130
45100-K0140
45100-K0190
45100-0DA00
45100-0DA30
45100-0DA40
45100-0DA50
45100-0DA60
45100-0DA70
45100-0DA80
45116ORNAMENT, STEERING WHEEL, NO.1
45116-K0030
45116-0D240
45124ORNAMENT, STEERING WHEEL MARK
45124-0D010
45130BUTTON ASSY, HORN
45130-K0040
45130-K0041
45130-0D660
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
9010918006
90109-18006
9015950199
90159-50199
90159W0023
90159-W0023

8 parts on this diagram · 1 diagram in section

STEERING WHEEL for Toyota YARIS(FRP)

This section contains 8 genuine Toyota parts for the STEERING WHEEL system of the Toyota YARIS(FRP). Key components include: WHEEL ASSY, STEERING, ORNAMENT, STEERING WHEEL, NO.1, ORNAMENT, STEERING WHEEL MARK, BUTTON ASSY, HORN, SWITCH & RELAY & COMPUTER.
