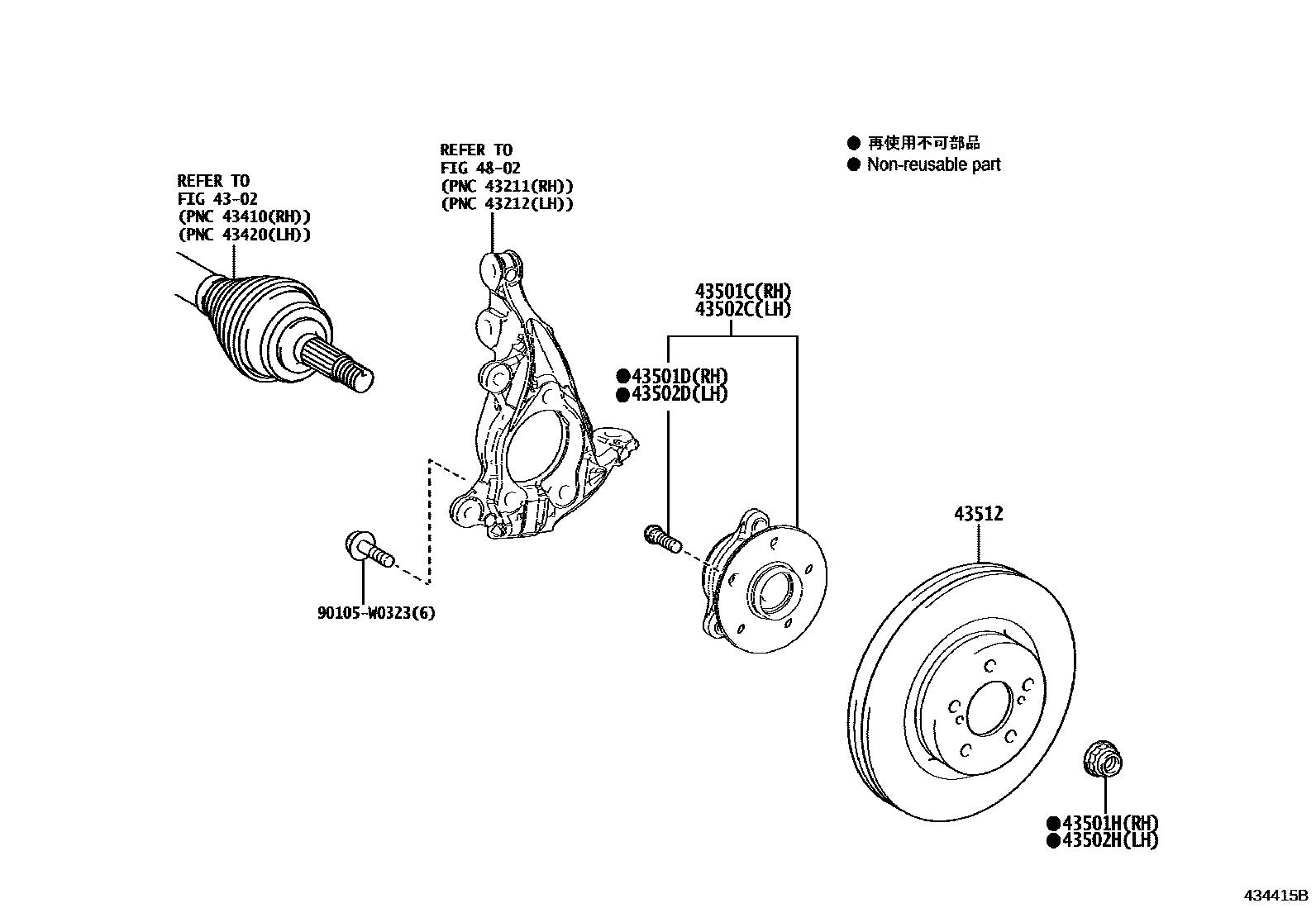

FRONT AXLE HUB

4302

43501CHUB SUB-ASSY, FRONT AXLE, RH

main43550-K0010iMXPA11..RHD..G;KSP211,MXPH11..RHD..R202007-202407

43501DBOLT, HUB (FOR FRONT AXLE RH)

main90942-02049iKSP211..G202007-202407

43501HNUT (FOR FRONT AXLE SHAFT RH)

main90177-22001iKSP211..G202007-202407

43502CHUB SUB-ASSY, FRONT AXLE, LH

main43550-K0010iMXPA11..6F..N;MXPA11..LHD..CVT..N202007-202407

43502DBOLT, HUB (FOR FRONT AXLE LH)

main90942-02049iMXPA11..RHD..G;KSP211,MXPH11..RHD..R202007-202407

43502HNUT (FOR FRONT AXLE SHAFT LH)

main90177-22001iMXPA11..6F..N;MXPA11..LHD..CVT..N202007-202407

43512DISC, FRONT

main43512-K0030iKSP211..RHD..N;KSP211..LHD..(N,R);MXPA11..RHD..CVT..N202007-202407

main43512-K0040iMXPH1#..N,S,V;MXPH11..R..FRP202007-202401

4802

90105W0323

main90105-W0323

10 parts on this diagram · 1 diagram in section
