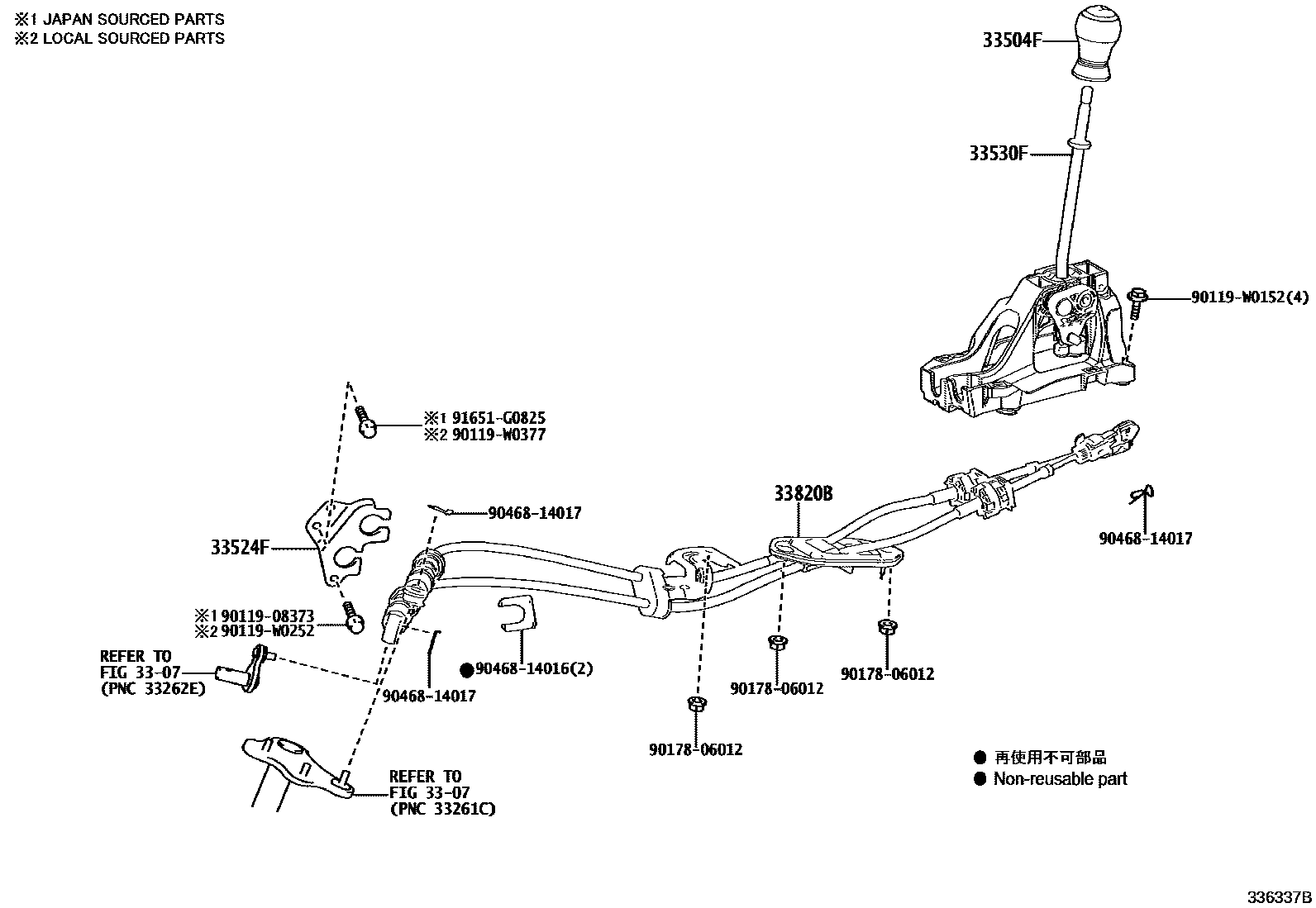

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

3307

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-02480-C0iMXPH11..N..CZEP202305-202401

SHIFT LEVER & KNOB-KNOB=LEATHER,BLACK,TRIM2#

main33504-02480-C0iMXPH11..N..CZEP202305-202401

SHIFT LEVER & KNOB-KNOB=LEATHER,BLACK,TRIM1#,2#

main33504-02480-C0iMXPA11..LHD..CVT..N..FRP202305-202401

BLACK,TRIM1#,2#

main33504-02480-C0iMXPA11..LHD..CVT..N..FRP202305-202407

BLACK,TRIM2#

main33504-02480-C0iMXPA11..RHD..CVT..N202305

BLACK,TRIM1#

main33504-0D130-C4iMXPA11..6F..N..FRP202007-202401

BLACK,TRIM1#,2#,4#

main33504-0D130-C4iMXPA11..6F..N..CZEP202207-202407

BLACK,TRIM2#

main33504-0D250-C7iKSP211..G202007-202105

BLACK

main33504-0D270-C7iMXPA11..LHD..6F..N202401-202407

SHIFT LEVER & KNOB-KNOB=LEATHER,BLACK

main33504-0D270-C7iMXPA11..6F..S;MXPA11..LHD..6F..G202007-202407

BLACK

main33504-0D750-C0iMXPH1#..V202401

BLACK,TRIM2#

main33504-0D770-C0iMXPH11..V202203-202401

BLACK,TRIM2#

main33504-12380-C2iKSP211..LHD..R202007-202205

BLACK,TRIM2#

sub33504-12380

main33504-12380-C2iKSP211..LHD..R202007

BLACK,TRIM1#,2#,4#

sub33504-12380

main33504-52600-C0iMXPA11..V202203

BLACK,TRIM2#

main33504-K0010-C0iMXPH11..S202007-202401

BLACK,TRIM2#

main33504-K0010-C0iMXPH11..N..CZEP;MXPH11..(N,R)..FRP202007-202401

SHIFT LEVER & KNOB-KNOB=PVC,BLACK,TRIM2#

main33504-K0010-C0iMXPH11..LHD..R..FRP202007-202401

BLACK,TRIM1#,2#,4#

main33504-K0010-C0iMXPH11..R..CZEP202007

SHIFT LEVER & KNOB-KNOB=PVC,BLACK,TRIM1#,2#

main33504-K0020-C0iMXPH11..G;MXPA11..CVT..G..CZEP202007-202304

BLACK,TRIM1#,2#,4#

sub33504-02480

main33504-K0020-C0iMXPA11..RHD..CVT..G202007-202304

BLACK,TRIM1#,2#

sub33504-02480

main33504-K0020-C0iMXPA11..CVT..N..FRP202007-202304

BLACK,TRIM1#

sub33504-02480

main33504-K0020-C0iMXPA11..CVT..N..FRP202007-202304

BLACK,TRIM2#

sub33504-02480

main33504-K0020-C0iMXPA11..CVT..N..FRP202007-202304

SHIFT LEVER & KNOB-KNOB=LEATHER,BLACK,TRIM1#,2#,4#

sub33504-02480

33524FBRACKET, CONTROL LEVER HOUSING SUPPORT (FOR FLOOR SHIFT)

main33524-52030iKSP211..RHD..R202007-202205

33530FLEVER ASSY, SHIFT (FOR FLOOR SHIFT)

main33530-02360iMXPA11..6F..(S,V);MXPA11..LHD..6F..G202007-202407

main33530-K0010iKSP211..G202007-202205

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-0D740iMXPH13202401

main33820-K0010iKSP211..RHD..N;KSP211..LHD..(N,R)202007-202205

main33820-K0020iMXPA11..RHD..6F..G202007-202407

main33820-K0030iMXPA11..LHD..CVT..(G,S);MXPA11..RHD..CVT..(N,S)202007-202407

main33820-K0040iMXPH11..N,S,V;MXPH11..LHD..R..FRP202007-202401

9011908373

main90119-08373

90119W0152

main90119-W0152

90119W0252

main90119-W0252

90119W0377

main90119-W0377

9017806012

main90178-06012

9046814016

main90468-14016

9046814017

main90468-14017

91651G0825

main91651-G0825

13 parts on this diagram · 6 diagrams in section
