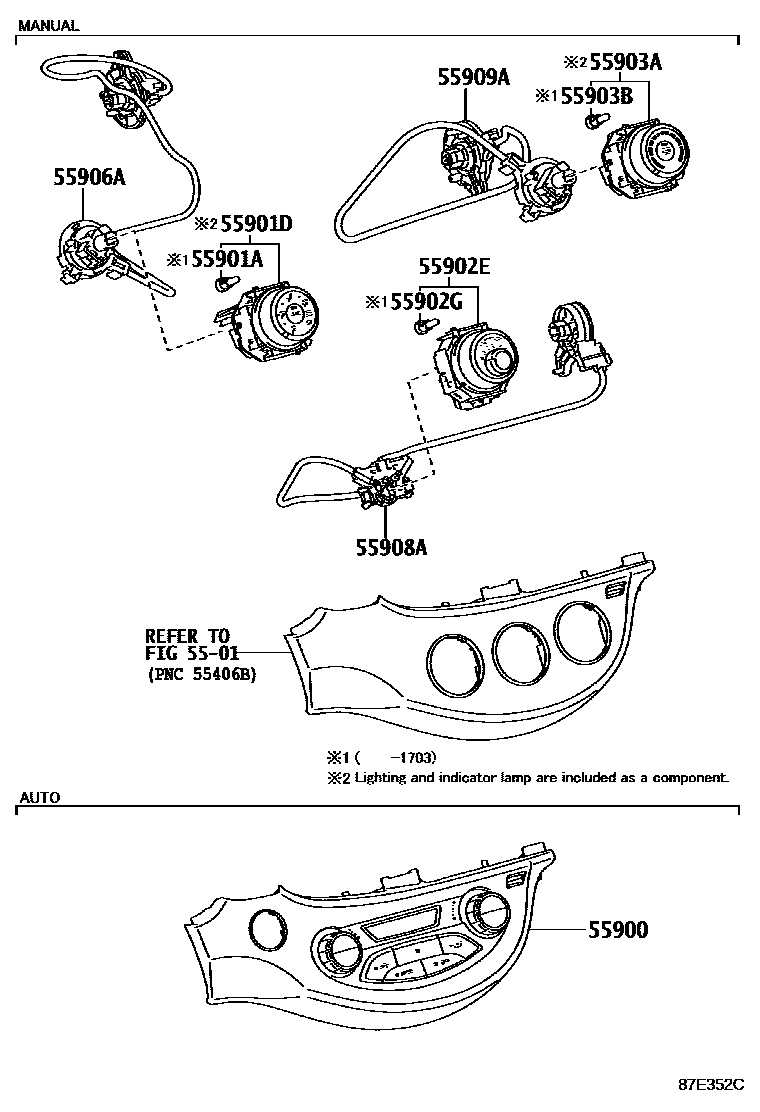

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
5501INSTRUMENT PANEL & GLOVE COMPARTMENT
55900CONTROL ASSY, AIR CONDITIONER
EU BLACK,TRIM2#,3#,4#,5#; EU BLACK,TRIM2#,5#; HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-DEALER OPTION,EU BLACK,TRIM2#,3#,4#,5#; HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-DEALER OPTION,EU BLACK,TRIM2#,5#; HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-HEATER ONLY,EU BLACK,TRIM2#,3#,4#,5#; HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-HEATER ONLY,EU BLACK,TRIM2#,5#
EU BLACK,TRIM2#,3#,4#; WIRELESS DOOR LOCK-WITH(SMART KEY & PUSH START),EU BLACK,TRIM2#,5#; WIRELESS DOOR LOCK-WITH(SMART KEY),EU BLACK,TRIM2#,5#
main55900-0D800-C3supersedes 55900-0D810-C3iKSP130,NLP130,NSP131..LHD..5D..(N,S); NHP130..LHD..(G,S); NHP130..LHD..N; NHP130..LHD..N;KSP130,NLP130,NSP131..LHD..G201703-202006
BLACK,TRIM2#; WIRELESS DOOR LOCK-WITH(SMART KEY & PUSH START),BLACK,TRIM2#; WIRELESS DOOR LOCK-WITH(SMART KEY)&FRONT AIR CONDITIONER-AUTO,BLACK,TRIM2#; WIRELESS DOOR LOCK-WITH(SMART KEY),BLACK,TRIM2#
EU BLACK,TRIM0#,2#,5#
EU BLACK,TRIM0#,2#,5#; EU BLACK,TRIM2#,3#,4#
main55900-0D820-C3iKSP130,NLP130,NSP131..RHD..(N,S); KSP130,NLP130,NSP131..RHD..G; NHP130..RHD;KSP130,NLP130,NSP131..RHD..G201703-202006
BLACK,TRIM2#; FRONT AIR CONDITIONER-AUTO,BLACK,TRIM2#; HEATER CONTROL PANEL-MANUAL(KNOB=CHROME PLATED)&FRONT AIR CONDITIONER-DEALER OPTION,BLACK,TRIM2#; HEATER CONTROL PANEL-MANUAL(KNOB=CHROME PLATED)&FRONT AIR CONDITIONER-HEATER ONLY,BLACK,TRIM2#
WIRELESS DOOR LOCK-WITH(SMART KEY)&FRONT AIR CONDITIONER-AUTO,EU BLACK,TRIM2#,3#,4#,5#
EU BLACK,TRIM2#,3#,4#,5#; EU BLACK,TRIM2#,5#; HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-DEALER OPTION,EU BLACK,TRIM2#,3#,4#,5#; HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-DEALER OPTION,EU BLACK,TRIM2#,5#; HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-HEATER ONLY,EU BLACK,TRIM2#,3#,4#,5#; HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-HEATER ONLY,EU BLACK,TRIM2#,5#
main55900-0D810-C3iKSP130,NLP130,NSP131..LHD..(N,S); KSP130,NLP130,NSP131..LHD..G; NHP130..LHD..N;KSP130,NLP130,NSP131..LHD..G201703-202006
BLACK,TRIM2#; FRONT AIR CONDITIONER-AUTO,BLACK,TRIM2#; HEATER CONTROL PANEL-MANUAL(KNOB=CHROME PLATED)&FRONT AIR CONDITIONER-DEALER OPTION,BLACK,TRIM2#; HEATER CONTROL PANEL-MANUAL(KNOB=CHROME PLATED)&FRONT AIR CONDITIONER-HEATER ONLY,BLACK,TRIM2#
55901ABULB, HEATER CONTROL SUB-ASSY, NO.1
FRONT AIR CONDITIONER-AUTO; FRONT AIR CONDITIONER-DEALER OPTION; HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-DEALER OPTION; HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-HEATER ONLY
55901DCONTROL SUB-ASSY, HEATER, NO.1
FRONT AIR CONDITIONER-DEALER OPTION
FRONT AIR CONDITIONER-HEATER ONLY
HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-DEALER OPTION
HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-HEATER ONLY
FRONT AIR CONDITIONER-DEALER OPTION
FRONT AIR CONDITIONER-HEATER ONLY
FRONT AIR CONDITIONER-AUTO; FRONT AIR CONDITIONER-DEALER OPTION; HEATER CONTROL PANEL-MANUAL(KNOB=CHROME PLATED)&FRONT AIR CONDITIONER-DEALER OPTION
FRONT AIR CONDITIONER-HEATER ONLY; HEATER CONTROL PANEL-MANUAL(KNOB=CHROME PLATED)&FRONT AIR CONDITIONER-HEATER ONLY
55902ECONTROL SUB-ASSY, HEATER, NO.2
FRONT AIR CONDITIONER-AUTO; FRONT AIR CONDITIONER-DEALER OPTION; HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-HEATER ONLY
FRONT AIR CONDITIONER-DEALER OPTION
FRONT AIR CONDITIONER-DEALER OPTION
FRONT AIR CONDITIONER-AUTO; FRONT AIR CONDITIONER-DEALER OPTION; HEATER CONTROL PANEL-MANUAL(KNOB=CHROME PLATED)&FRONT AIR CONDITIONER-HEATER ONLY
55902GBULB, HEATER CONTROL SUB-ASSY, NO.2
FRONT AIR CONDITIONER-AUTO; FRONT AIR CONDITIONER-DEALER OPTION; HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-HEATER ONLY
55903ACONTROL SUB-ASSY, HEATER, NO.3
COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO; COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION; COLD AREA SPEC&WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO; COLD AREA SPEC&WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION; FRONT AIR CONDITIONER-AUTO; FRONT AIR CONDITIONER-DEALER OPTION
COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION; COLD AREA SPEC&WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION; FRONT AIR CONDITIONER-DEALER OPTION
COLD AREA SPEC&WITH(REAR HEATER DUCT); COLD AREA SPEC&WITHOUT(REAR HEATER DUCT)
main55903-0D350iKSP130,NSP130..LHD..G; NLP130..LHD..3D..S; NLP130..LHD..G; NSP130..LHD..3D..S201407-201511
COLD AREA SPEC&WITH(REAR HEATER DUCT); COLD AREA SPEC&WITH(REAR HEATER DUCT)&HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-HEATER ONLY; COLD AREA SPEC&WITHOUT(REAR HEATER DUCT); COLD AREA SPEC&WITHOUT(REAR HEATER DUCT)&HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-HEATER ONLY
COLD AREA SPEC & W(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION; FRONT AIR CONDITIONER-DEALER OPTION
COLD AREA SPEC & W(REAR HEATER DUCT)
main55903-0D450iKSP130,NLP130,NSP131..G; KSP130,NLP130,NSP131..N,S; KSP130,NSP131..LHD..(N,S)201703-202006
COLD AREA SPEC & W(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO; COLD AREA SPEC & W(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION; FRONT AIR CONDITIONER-AUTO; FRONT AIR CONDITIONER-DEALER OPTION; HEATER CONTROL PANEL-MANUAL(KNOB=CHROME PLATED)&FRONT AIR CONDITIONER-HEATER ONLY
COLD AREA SPEC & W(REAR HEATER DUCT); COLD AREA SPEC & W(REAR HEATER DUCT)&HEATER CONTROL PANEL-MANUAL(KNOB=CHROME PLATED)&FRONT AIR CONDITIONER-HEATER ONLY
55903BBULB, HEATER CONTROL SUB-ASSY, NO.3
COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO; COLD AREA SPEC&WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION; COLD AREA SPEC&WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO; COLD AREA SPEC&WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION; FRONT AIR CONDITIONER-AUTO; FRONT AIR CONDITIONER-DEALER OPTION
55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
FRONT AIR CONDITIONER-AUTO
55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL
FRONT AIR CONDITIONER-AUTO
main55908-52130iKSP130,NLP130,NSP131..RHD..G; NSP131..RHD..(N,R);KSP130,NLP130..RHD..(N,R,S); NSP131..RHD..N;KSP130,NLP130..RHD..(N,S)201703-202006
FRONT AIR CONDITIONER-AUTO; HEATER CONTROL PANEL-MANUAL(KNOB=CHROME PLATED)
55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL
FRONT AIR CONDITIONER-AUTO
11 parts on this diagram · 6 diagrams in section
