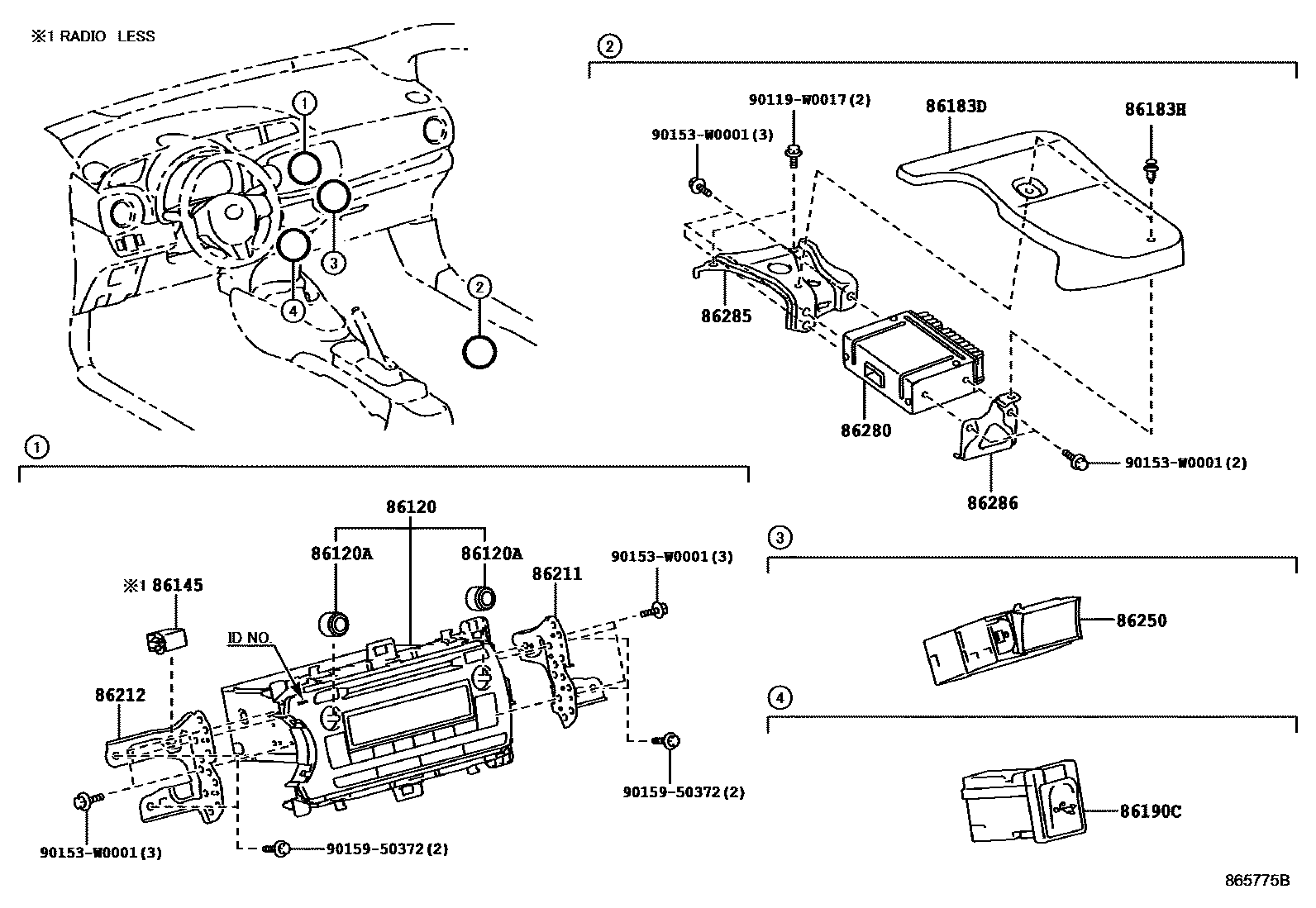

RADIO RECEIVER & AMPLIFIER & CONDENSER
86120RECEIVER ASSY, RADIO
PANASONIC,ID=53864; PANASONIC,ID=53864,AUDIO-FM/MW & CD & 6SPESKER
PANASONIC,ID=53865; PANASONIC,ID=53865,AUDIO-FM/MW & CD & 6SPESKER
PANASONIC; PANASONIC,AUDIO-FM/MW & CD & *BT & 6SPESKER
PANASONIC,ID=53878,AUDIO-FM/MW & CD & 6SPESKER
PANASONIC,ID=53879,AUDIO-FM/MW & CD & 6SPESKER
PANASONIC,AUDIO-FM/MW & CD & *BT & 6SPESKER (TUNISIA)
86120AKNOB, RADIO RECEIVER SWITCH
AUDIO-FM/MW & CD & 6SPESKER
main90011-25290×2iKSP130,NHP130,NLP130,NSP131..N; KSP130,NLP130,NSP131..R; KSP130..LHD..5D..N201703-202006
AUDIO-FM/MW & CD & *BT & 6SPESKER; AUDIO-FM/MW & CD & *BT & 6SPESKER (TUNISIA)
86145CONNECTOR, ANTENNA MALE
AUDIO-RADIO LESS & 6SPEAKER; AUDIO-RADIO LESS & WITHOUT(SPEAKER)
86183DCOVER, AUDIO AMPLIFIER
main86183-0D010iKSP130..LHD..5D..G;NLP130,NSP130..5D..G;KSP130..LHD..3D..(G,N);NLP130,NSP130..3D..(G,S);NLP130,NSP130..LHD..3D..N; NHP130..RHD201407-201511
AUDIO-*DA & *BT & 8SPEAKER
86183HCLIP, AUDIO AMPLIFIER COVER
main90467-07076-C0×2iKSP130..LHD..5D..G;NLP130,NSP130..5D..G;KSP130,NLP130,NSP130..LHD..3D..N; NHP130..RHD201407-201511
AUDIO-*DA & *BT & 8SPEAKER,BLACK
AUDIO-*DA & *BT & 8SPEAKER,BLACK
86190CADAPTER ASSY, STEREO JACK, NO.1
86211BRACKET, RADIO, NO.1
main86211-0D210supersedes 86211-0D130iKSP130,NLP130,NSP130..R; NHP130;KSP130,NLP130,NSP130..N;KSP130,NLP130,NSP130..5D..(G,S)201407-201703
AUDIO-*DA & *BT & 6SPEAKER
main86211-0D130iKSP130,NHP130,NLP130,NSP131..N; KSP130,NLP130,NSP131..R; KSP130..LHD..5D..N; NHP130..N201703-202006
AUDIO-FM/MW & CD & *BT & 6SPESKER; AUDIO-FM/MW & CD & *BT & 6SPESKER (TUNISIA); AUDIO-RADIO LESS & 6SPEAKER; AUDIO-RADIO LESS & WITHOUT(SPEAKER)
86212BRACKET, RADIO, NO.2
main86212-0D200supersedes 86212-0D130iKSP130,NLP130,NSP130..R; NHP130;KSP130,NLP130,NSP130..N;KSP130,NLP130,NSP130..5D..(G,S)201407-201703
AUDIO-*DA & *BT & 6SPEAKER
main86212-0D130iKSP130,NHP130,NLP130,NSP131..N; KSP130,NLP130,NSP131..R; KSP130..LHD..5D..N; NHP130..N201703-202006
AUDIO-FM/MW & CD & *BT & 6SPESKER; AUDIO-FM/MW & CD & *BT & 6SPESKER (TUNISIA); AUDIO-RADIO LESS & 6SPEAKER; AUDIO-RADIO LESS & WITHOUT(SPEAKER)
86250MICROPHONE ASSY, AMPLIFIER
main86250-0D030iKSP130,NHP130,NLP130,NSP131..LHD; NHP130..LHD..N; NLP130..LHD..(N,R);KSP130,NHP130,NSP131..LHD..5D..(N,R)201703-202006
AUDIO-RADIO LESS & 6SPEAKER; AUDIO-RADIO LESS & WITHOUT(SPEAKER)
86280AMPLIFIER ASSY, STEREO COMPONENT
AUDIO-*DA & *BT & 8SPEAKER
86285BRACKET, AMPLIFIER, NO.1
AUDIO-*DA & *BT & 8SPEAKER
86286BRACKET, AMPLIFIER, NO.2
main86286-0D010iKSP130..LHD..5D..G;NLP130,NSP130..5D..G;KSP130..LHD..3D..(G,N);NLP130,NSP130..3D..(G,S);NLP130,NSP130..LHD..3D..N; NHP130..RHD201407-201511
AUDIO-*DA & *BT & 8SPEAKER
90119W0017
main90119-W0017
90153W0001
main90153-W0001
9015950372
main90159-50372
15 parts on this diagram · 5 diagrams in section
