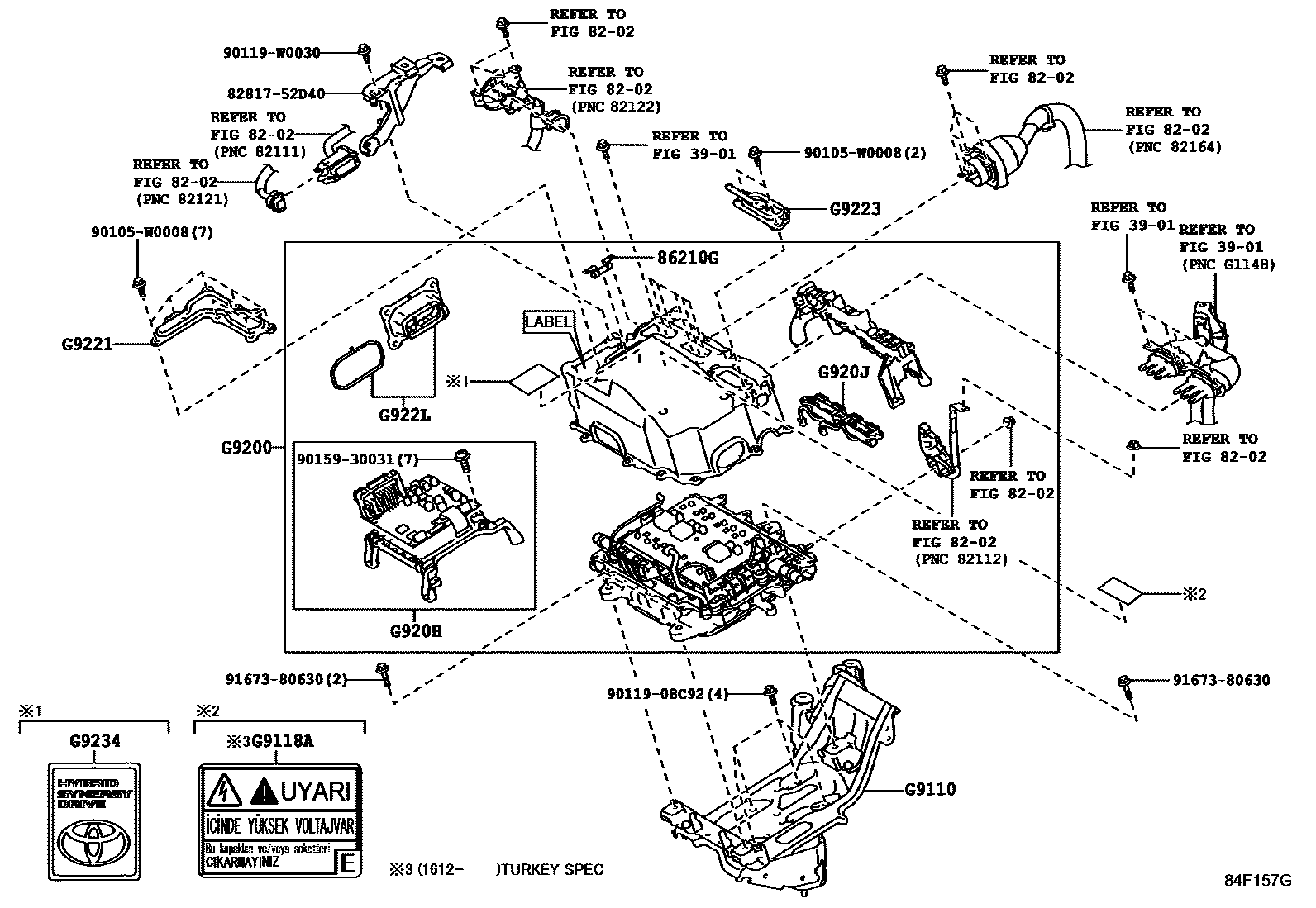

HEV INVERTER

0001 1INVERTER ASSY 0002 1KIT PARTS 0003 1

3901

8202

86210GFUSE, HIGH VOLTAGE

main90982-11050iNHP130201407-201703

G9110BRACKET ASSY, INVERTER

mainG911052010iNHP130201407-201703

G9118ALABEL, HV MOTOR CONTROL INVERTER CAUTION

mainG911852010iNHP130..LHD201612-201703

TURKEY SPEC

G9200INVERTER ASSY, W/CONVERTER

mainG920059025iNHP130201407-201411

mainG920059045iNHP130201411-201605

mainG920059046iNHP130201703-201705

mainG920059047iNHP130201706-202006

subG9200-59086

mainG920059075iNHP130201605-201608

P/N LABEL=G920052070

subG9200-59086

G920HCOMPUTER SUB-ASSY, MOTOR GENERATOR CONTROL

mainG920H52030iNHP130201407-201605

mainG920H52031iNHP130201612-201703

*465

mainG920H52032iNHP130201706-202006

subG920H-52H01

mainG920H52060iNHP130201605-201703

*461

subG920H-52043

G920JSENSOR SUB-ASSY, INVERTER CURRENT

mainG920J52010×2iNHP130202004-202006

G9221COVER, INVERTER

mainG922152010iNHP130201407-201703

G9223COVER, INVERTER TERMINAL

mainG922352010iNHP130201407-201703

G922LCOVER, INVERTER SIGNAL CONNECTOR

mainG922L47010iNHP130201407-201703

G9234PLATE, INVERTER NAME

mainG923F52010iNHP130201407-201703

8281752D40PROTECTOR, WIRING HARNESS, NO.1

main82817-52D40

90105W0008

main90105-W0008

9011908C92

main90119-08C92

90119W0030

main90119-W0030

9015930031

main90159-30031

9167380630

main91673-80630
