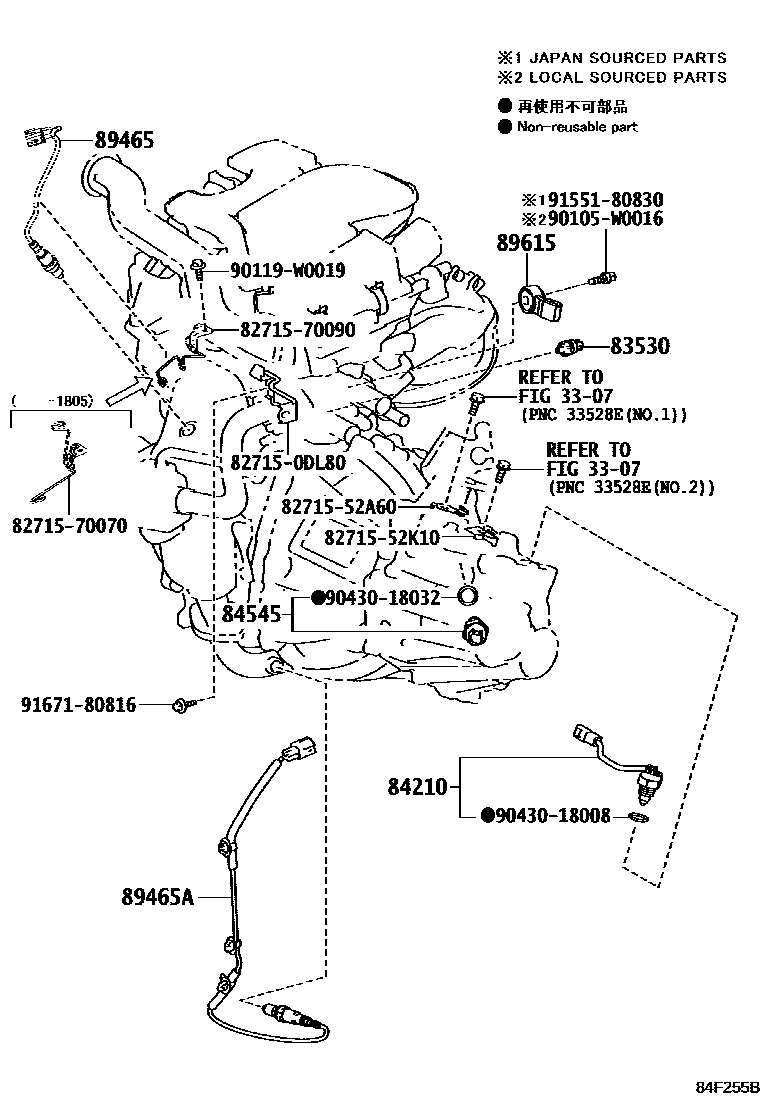

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION(EXCEPT 0003 1ENGINE & TRANSMISSION(EURO6) 0004 1ENGINE & TRANSMISSION 0005 1ENGINE & TRANSMISSION 0006 1ENGINE & TRANSMISSION 0007 1ENGINE ROOM 0008 1ENGINE ROOM 0009 1ENGINE ROOM RELAY BLOCK 0010 1ENGINE ROOM RELAY BLOCK 0011 1ENGINE ROOM RELAY BLOCK 0012 1COWL 0013 1COWL 0014 1INSTRUMENT PANEL 0015 1INSTRUMENT PANEL 0016 1STEERING 0017 1DOOR,ROOF,FLOOR & BACK DOOR

3307

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-05010iKSP130,NHP130,NSP131201407-202006

(L)

main83530-28010iNLP130201805-201812

DENSO

main83530-28020iKSP130,NHP130,NSP131201407-202006

(J),DENSO

main83530-60010iNLP130201805-201812

YAZAKI

main83530-60020iKSP130,NHP130,NSP131201407-202006

(J),YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-52030iKSP130201407-202006

sub84210-K0010

main84210-52050iNLP130,NSP131..6F201407-202006

84545SWITCH, NEUTRAL POSITION

main84545-52010

89465SENSOR, OXYGEN

main89465-0H030iKSP130..N,R;KSP130..5D..G201407-201805

main89465-0H060iKSP130201805-202006

main89465-52540iNSP130201407-201409

main89465-52670iNHP130201407-202006

main89465-52740iNSP131201409-202006

89465ASENSOR, OXYGEN NO.2

main89465-0D240iKSP130..3D..G201407-201604

sub89465-0D250

main89465-0D250iKSP130201605-201805

sub89465-0D280

main89465-0D280iKSP130201805-202006

89615SENSOR, KNOCK CONTROL

main89615-0H010iKSP130..3D..G201407-202006

main89615-20090iNHP130;NSP130..N,R;NSP130..5D..(G,S)201407-202006

827150DL80BRACKET,WIRING HARNESS CLAMP

main82715-0DL80

8271552A60BRACKET,WIRING HARNESS CLAMP

main82715-52A60

8271552K10BRACKET,WIRING HARNESS CLAMP

main82715-52K10

8271570070BRACKET,WIRING HARNESS CLAMP

main82715-70070

8271570090BRACKET,WIRING HARNESS CLAMP

main82715-70090

90105W0016

main90105-W0016

90119W0019

main90119-W0019

9043018008

main90430-18008

9043018032

main90430-18032

9155180830

main91551-80830

9167180816

main91671-80816

18 parts on this diagram · 17 diagrams in section
