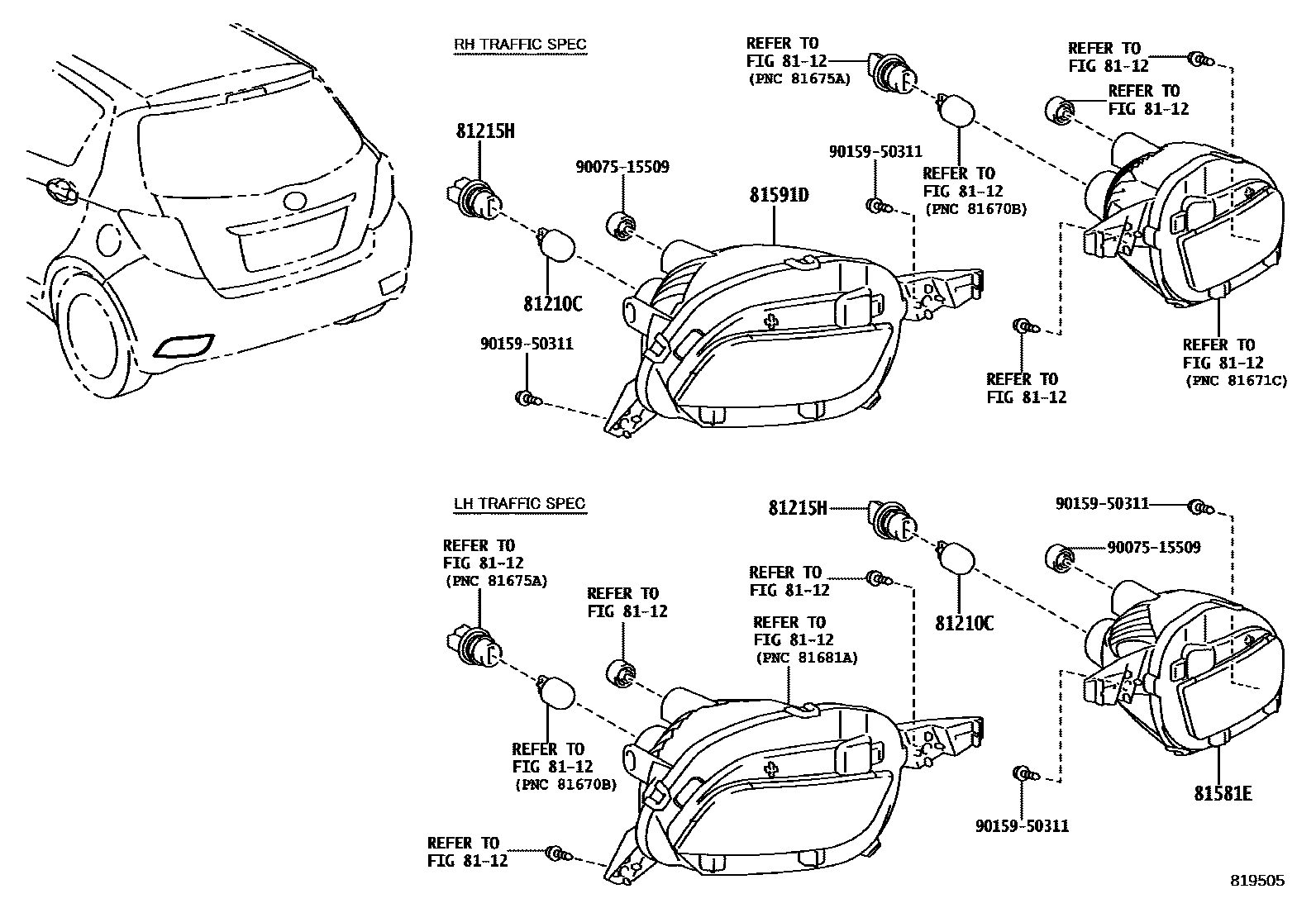

REAR FOG LAMP

8112BACK UP LAMP

→ Go to FIG 81-12

81210CBULB, REAR FOG LAMP

main90981-13043iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

12V 21W

81215HSOCKET, REAR FOG LAMP

main90075-99080iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

81581ELENS AND BODY, REAR FOG LAMP, RH

main81581-0D230iKSP130,NLP130,NSP130..LHD..3D..(G,S); KSP130,NLP130,NSP130..RHD..3D..(G,S)201407-201511

HEADLAMP AIMING-LH TRAFFIC SPEC

81591DLENS AND BODY, REAR FOG LAMP, LH

main81591-0D190iKSP130,NLP130,NSP130..LHD..3D..(G,S); KSP130,NLP130,NSP130..RHD..3D..(G,S)201407-201511

HEADLAMP AIMING-RH TRAFFIC SPEC

9007515509

main90075-15509

9015950311

main90159-50311

7 parts on this diagram · 1 diagram in section
