SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT 0002 1REAR

73119PLATE, SEAT BELT WEBBING CLIP

main73119-22010iKSP130,NHP130,NLP130,NSP131201407-202006

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-0D302-C0iKSP130,NLP130,NSP130..3D..R201407-201703

BLACK,TRIM1#,2#

main73210-0D302-C0iNLP130,NSP130..3D..S201407-201511

BLACK,TRIM2#,3#

main73210-0D302-C0iNLP130,NSP130..3D..S201407-201511

BLACK,TRIM2#,5#

main73210-0D302-C0iNSP130..3D..CVT..N201407-201703

BLACK,TRIM0#,1#,2#

main73210-0D302-C0iNSP130..3D..CVT..N201407-201703

BLACK,TRIM0#

main73210-0D322-C0iNLP130,NSP130..5D..S201407-201703

BLACK,TRIM2#,3#,4#,5#

main73210-0D322-C0iNHP130..N201407-201703

BLACK,TRIM2#,3#

main73210-0D322-C0iNHP130..N201407-201703

BLACK,TRIM0#,1#,2#

main73210-0D322-C0iNHP130..N201407-201703

BLACK,TRIM0#

main73210-0D322-C0iNHP130..N201407-201703

BLACK,TRIM1#,2#

main73210-0D322-C0iNHP130..G201407-201703

BLACK,TRIM0#,2#,5#

main73210-0D322-C0iNHP130..G201407-201703

BLACK,TRIM2#,3#,4#

main73210-0D580-C0iKSP130,NHP130,NLP130,NSP131..5D201703-202006

BLACK,TRIM2#

main73210-0D590-C0iKSP130,NLP130,NSP131..3D201703-201912

BLACK,TRIM2#

73219STOPPER, TONGUE PLATE

main73219-33010iKSP130,NHP130,NLP130,NSP131201407-202006

BLACK

main73219-33020iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

GRAY

main73219-33030iNHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)201407-202006

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-0D292-C0iKSP130,NLP130,NSP130..3D..MTM..N201407-201703

BLACK,TRIM0#,1#,2#

main73220-0D292-C0iKSP130,NLP130,NSP130..3D..MTM..N201407-201703

BLACK,TRIM0#

main73220-0D292-C0iKSP130,NLP130,NSP130..3D..MTM..N201407-201703

BLACK,TRIM1#,2#

main73220-0D292-C0iNLP130,NSP130..3D..S201407-201511

BLACK,TRIM2#,5#

main73220-0D292-C0iKSP130,NLP130,NSP130..3D..G201407-201511

BLACK,TRIM2#,3#

main73220-0D312-C0iKSP130,NLP130,NSP130..5D..R201407-201703

BLACK,TRIM2#,3#,4#,5#

main73220-0D312-C0iKSP130,NLP130,NSP130..5D..MTM..N201407-201703

BLACK,TRIM0#,2#,5#

main73220-0D312-C0iKSP130,NLP130,NSP130..5D..MTM..N201407-201703

BLACK,TRIM2#,3#,4#

main73220-0D312-C0iKSP130,NLP130,NSP130..5D..MTM..N201407-201703

BLACK,TRIM2#,3#

main73220-0D312-C0iKSP130,NLP130,NSP130..5D..MTM..N201407-201703

BLACK,TRIM0#,1#,2#

main73220-0D312-C0iKSP130,NLP130,NSP130..5D..MTM..N201407-201703

BLACK,TRIM0#

main73220-0D312-C0iKSP130,NLP130,NSP130..5D..MTM..N201407-201703

BLACK,TRIM1#,2#

main73220-0D570-C0iKSP130,NHP130,NLP130,NSP131..5D201703-202006

BLACK,TRIM2#

main73220-0D580-C0iKSP130,NLP130,NSP131..3D201703-201912

BLACK,TRIM2#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0D330-C0iKSP130,NHP130,NLP130,NSP131..RHD201703-202006

BLACK,TRIM2#

main73230-0D330-C0iNHP130..RHD..N201407-201703

BLACK,TRIM0#,2#,5#

main73230-0D330-C0iNHP130..RHD..N201407-201703

BLACK,TRIM2#,3#,4#

main73230-0D330-C0iNHP130..RHD..N201407-201703

BLACK,TRIM0#,1#,2#

main73230-0D330-C0iNHP130..RHD..N201407-201703

BLACK,TRIM2#,3#

main73230-0D330-C0iNHP130..RHD..N201407-201703

BLACK,TRIM0#

main73230-0D330-C0iNHP130..RHD..N201407-201703

BLACK,TRIM1#,2#

main73230-0D330-C0iNHP130..RHD..N201407-201703

BLACK,TRIM2#,3#,4#,5#

main73230-0D330-C0iKSP130,NLP130,NSP130..RHD..3D..G201407-201511

BLACK,TRIM2#,5#

main73230-0D340-C0iKSP130,NLP130,NSP130..LHD..R201407-201703

BLACK,TRIM0#

main73230-0D340-C0iKSP130,NLP130,NSP130..LHD..3D..G201407-201511

BLACK,TRIM2#,5#

main73230-0D340-C0iNHP130..LHD..G201407-201703

BLACK,TRIM2#,3#,4#

main73230-0D340-C0iNHP130..LHD..G201407-201703

BLACK,TRIM0#,2#,5#

main73230-0D340-C0iNHP130..LHD..G201407-201703

BLACK,TRIM0#,1#,2#

main73230-0D340-C0iNHP130..LHD..G201407-201703

BLACK,TRIM2#,3#

main73230-0D340-C0iNHP130..LHD..G201407-201703

BLACK,TRIM1#,2#

main73230-0D340-C0iNHP130..LHD..G201407-201703

BLACK,TRIM2#,3#,4#,5#

main73230-0D340-C0iKSP130,NHP130,NLP130,NSP131..LHD201703-202006

BLACK,TRIM2#

73233COVER, LAP BELT OUTER ANCHOR

main73233-02040-C0iNHP130..N201407-201703

BLACK,TRIM2#,3#,4#

main73233-02040-C0iNHP130..N201407-201703

BLACK,TRIM0#,2#,5#

main73233-02040-C0iNHP130..N201407-201703

BLACK,TRIM0#

main73233-02040-C0iNHP130..N201407-201703

BLACK,TRIM1#,2#

main73233-02040-C0iNHP130..N201407-201703

BLACK,TRIM2#,3#,4#,5#

main73233-02040-C0iNSP130..CVT..N201407-201703

BLACK,TRIM0#,1#,2#

main73233-02040-C0iNSP130..CVT..N201407-201703

BLACK,TRIM2#,3#

main73233-02040-C0iKSP130,NLP130,NSP130..3D..G201407-201511

BLACK,TRIM2#,5#

main73233-02040-C0iKSP130,NHP130,NLP130,NSP131201703-202006

BLACK,TRIM2#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-0D330-C0iKSP130,NLP130,NSP130..LHD..5D..G201407-201703

BLACK,TRIM2#,3#,4#,5#

main73230-0D330-C0iKSP130,NHP130,NLP130,NSP131..LHD201703-202006

BLACK,TRIM2#

main73230-0D330-C0iKSP130,NLP130,NSP130..LHD..3D..G201407-201511

BLACK,TRIM2#,5#

main73230-0D330-C0iNHP130..LHD..G201407-201703

BLACK,TRIM2#,3#,4#

main73230-0D330-C0iNHP130..LHD..G201407-201703

BLACK,TRIM0#,2#,5#

main73230-0D330-C0iNHP130..LHD..G201407-201703

BLACK,TRIM0#,1#,2#

main73230-0D330-C0iNHP130..LHD..G201407-201703

BLACK,TRIM2#,3#

main73230-0D330-C0iNHP130..LHD..G201407-201703

BLACK,TRIM0#

main73230-0D330-C0iNHP130..LHD..G201407-201703

BLACK,TRIM1#,2#

main73230-0D420-C0iKSP130,NLP130,NSP130..RHD..5D..G201407-201703

BLACK,TRIM2#,3#

main73230-0D420-C0iKSP130,NLP130,NSP130..RHD..3D..G201407-201511

BLACK,TRIM2#,5#

main73230-0D420-C0iNHP130..RHD..N201407-201703

BLACK,TRIM0#,2#,5#

main73230-0D420-C0iNHP130..RHD..N201407-201703

BLACK,TRIM2#,3#,4#

main73230-0D420-C0iNHP130..RHD..N201407-201703

BLACK,TRIM0#,1#,2#

main73230-0D420-C0iNHP130..RHD..N201407-201703

BLACK,TRIM0#

main73230-0D420-C0iNHP130..RHD..N201407-201703

BLACK,TRIM1#,2#

main73230-0D420-C0iNHP130..RHD..N201407-201703

BLACK,TRIM2#,3#,4#,5#

main73230-0D420-C0iKSP130,NHP130,NLP130,NSP131..RHD201703-202006

BLACK,TRIM2#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

90105W0014

main90105-W0014

90109W0013

main90109-W0013

90119W0037

main90119-W0037

90178W0062

main90178-W0062

9017911010

main90179-11010

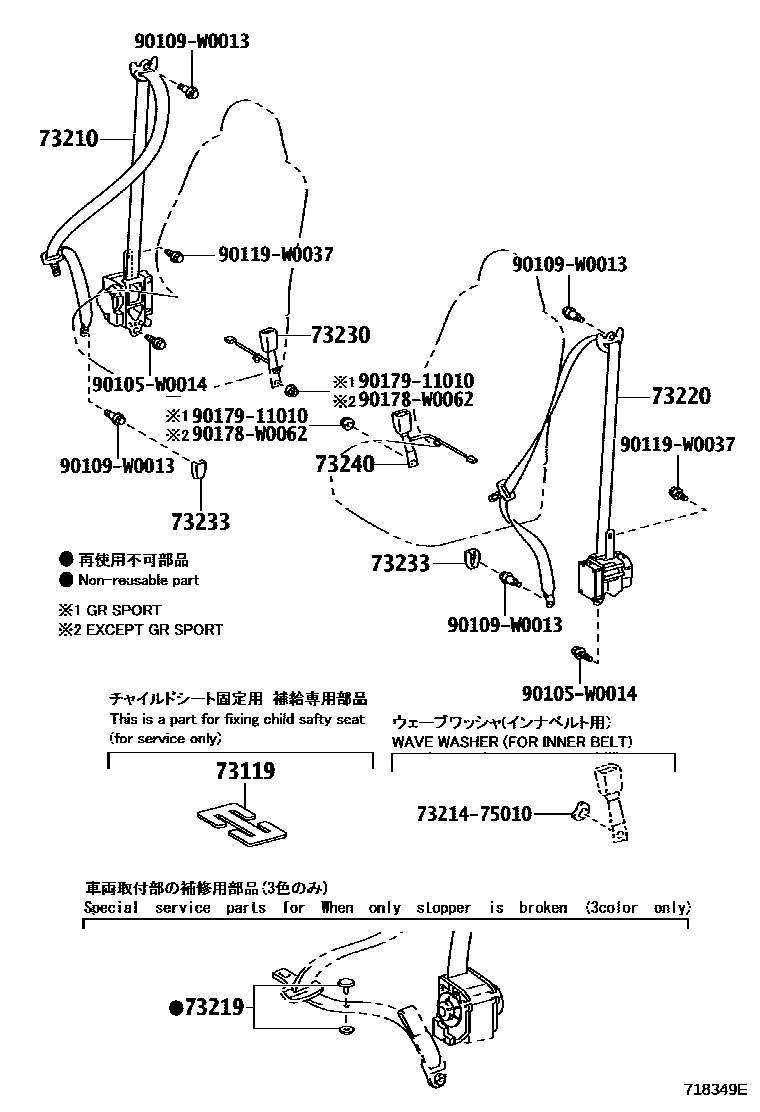

13 parts on this diagram · 2 diagrams in section
