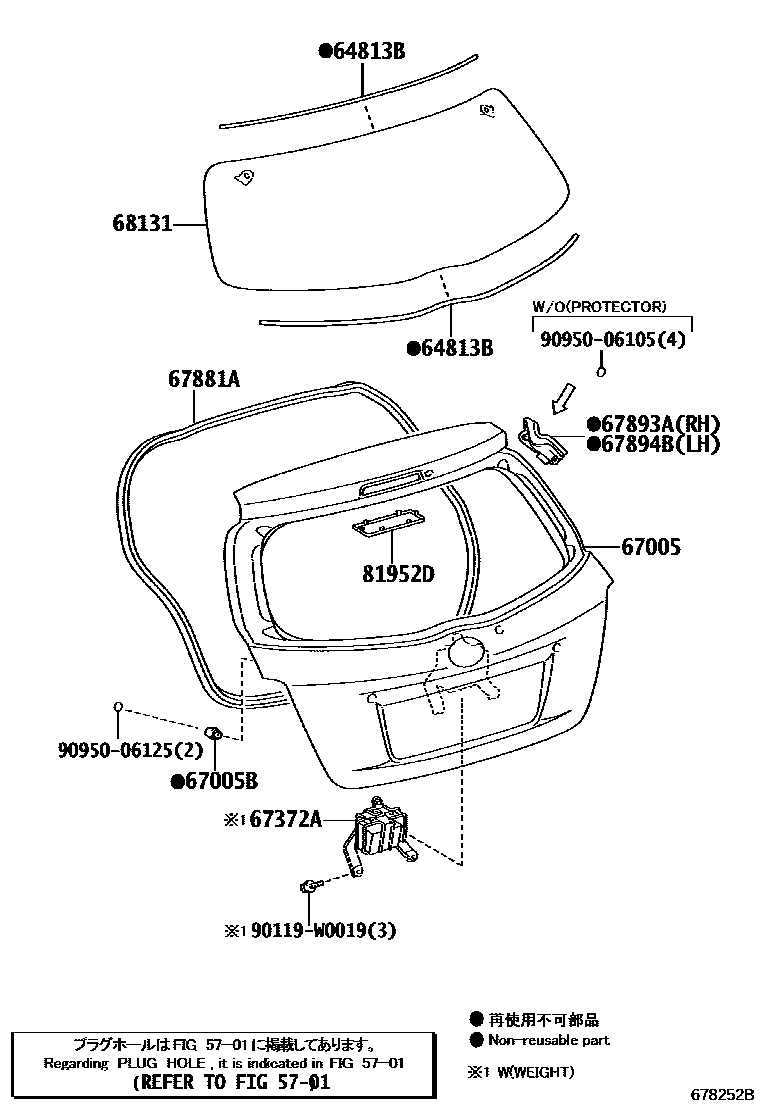

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM 0003 1

5701

64813BDAM, BACK WINDOW GLASS ADHESIVE

main56117-50140iNHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)201407-202006

67005PANEL SUB-ASSY, BACK DOOR

main67005-0D111iKSP130,NHP130,NLP130,NSP130201407-201703

main67005-0D590iKSP130,NLP130,NSP131..R201703-202006

WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)

main67005-0D590iKSP130,NHP130,NLP130,NSP131..G,N,S201703-202006

WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)

main67005-0D600iNHP130..N201703-202006

ENTRY PACKAGE&WIRELESS DOOR LOCK-WITHOUT

main67005-0D600iNHP130..N201703-202006

SIMPLE PACKAGE&WIRELESS DOOR LOCK-WITHOUT

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09146iNHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)201407-202006

67372AWEIGHT, BACK DOOR

main67372-52030iNSP130..6F..S201407-201612

STYLE RED PACK

sub67372-52031

main67372-52031iNSP130..6F..S201701-201703

STYLE RED PACK

main67372-52031iNHP130,NSP130..CVT201701-201703

SALES PACK

main67372-52031iNHP130,NSP130..CVT201701-201703

BLACK PACK

67881AWEATHERSTRIP, BACK DOOR

main67881-0D071iKSP130,NHP130,NLP130,NSP130201407-201703

sub67881-0D220

main67881-0D220iKSP130,NHP130,NLP130,NSP131201703-202006

67893APROTECTOR, BACK DOOR PANEL, NO.1

main67893-0D030iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

67894BPROTECTOR, BACK DOOR PANEL, NO.2

main67894-0D030iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

68131GLASS, BACK DOOR

main68105-0D130iKSP130,NLP130,NSP130..3D..(G,S)201407-201703

*EHT,T=3.1,GREEN

main68105-0D390iKSP130,NHP130,NLP130,NSP131201703-202006

81952DCOVER, REAR LAMP

main81952-0D050iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

90119W0019

main90119-W0019

9095006105

main90950-06105

9095006125

main90950-06125

13 parts on this diagram · 3 diagrams in section
