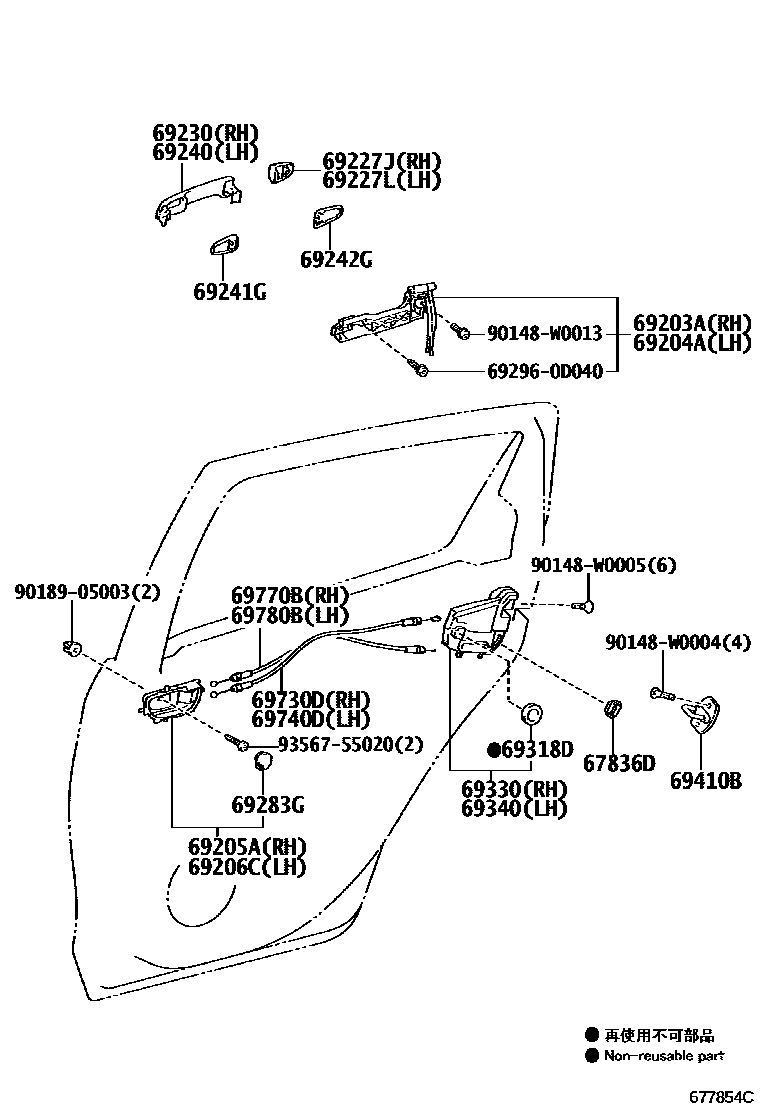

REAR DOOR LOCK & HANDLE
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
EU BLACK,TRIM2#
EU BLACK,TRIM2#,3#,4#
ENTRY PACKAGE,EU BLACK,TRIM2#
EU BLACK,TRIM2#
SIMPLE PACKAGE,EU BLACK,TRIM2#
HV SIMPLE PACKAGE,EU BLACK,TRIM0#
EU BLACK,TRIM0#
EU BLACK/SILVER,TRIM2#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
EU BLACK,TRIM2#
EU BLACK,TRIM2#,3#,4#
SIMPLE PACKAGE,EU BLACK,TRIM2#
EU BLACK,TRIM0#
HV SIMPLE PACKAGE,EU BLACK,TRIM0#
EU BLACK,TRIM2#
ENTRY PACKAGE,EU BLACK,TRIM2#
EU BLACK/SILVER,TRIM2#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
BLACK,DOOR OUTSIDE HANDLE-BLACK(PIGMENTATION)
BLACK
LESS COLOR,DOOR OUTSIDE HANDLE-COLORED
LESS COLOR
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
BLACK,DOOR OUTSIDE HANDLE-BLACK(PIGMENTATION)
BLACK
LESS COLOR,DOOR OUTSIDE HANDLE-COLORED
LESS COLOR
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
NO PAINT REQ.
NO PAINT REQ.,DOOR OUTSIDE HANDLE-BLACK(PIGMENTATION)
PAINT REQ.,DOOR OUTSIDE HANDLE-COLORED
PAINT REQ.
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
NO PAINT REQ.
NO PAINT REQ.,DOOR OUTSIDE HANDLE-BLACK(PIGMENTATION)
PAINT REQ.,DOOR OUTSIDE HANDLE-COLORED
PAINT REQ.
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69283GPLUG, REAR DOOR INSIDE HANDLE BEZEL
EU BLACK,TRIM2#,3#
EU BLACK,TRIM0#
EU BLACK,TRIM2#,3#,4#,5#
EU BLACK,TRIM2#
BLACK PACK,EU BLACK,TRIM1#,2#
EU BLACK,TRIM2#,3#,4#
EU BLACK,TRIM1#,2#
EU BLACK,TRIM2#,5#
69318DSEAL, DOOR LOCK WIRING HARNESS
69330LOCK ASSY, REAR DOOR, RH
UK SPEC&WIRELESS DOOR LOCK-WITH(SMART KEY)
UK SPEC&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
UK SPEC&WIRELESS DOOR LOCK-WITH(SMART KEY & PUSH START)
POWER DOOR LOCK-DOUBLE LOCK&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
WIRELESS DOOR LOCK-WITH(SMART KEY)
UK SPEC
U.K. SPEC&WIRELESS DOOR LOCK-WITH(SMART KEY & PUSH START)
U.K. SPEC&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
POWER DOOR LOCK-WITH(DOUBLE LOCK)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
U.K. SPEC
U.K. SPEC&WIRELESS DOOR LOCK-WITH(SMART KEY)
WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)
69340LOCK ASSY, REAR DOOR, LH
WIRELESS DOOR LOCK-WITH(SMART KEY)
UK SPEC
UK SPEC&WIRELESS DOOR LOCK-WITH(SMART KEY)
UK SPEC&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
UK SPEC&WIRELESS DOOR LOCK-WITH(SMART KEY & PUSH START)
POWER DOOR LOCK-DOUBLE LOCK&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
U.K. SPEC
U.K. SPEC&WIRELESS DOOR LOCK-WITH(SMART KEY)
U.K. SPEC&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
U.K. SPEC&WIRELESS DOOR LOCK-WITH(SMART KEY & PUSH START)
POWER DOOR LOCK-WITH(DOUBLE LOCK)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
WIRELESS DOOR LOCK-WITH(SMART KEY)
UK SPEC
UK SPEC&WIRELESS DOOR LOCK-WITH(SMART KEY)
UK SPEC&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
UK SPEC&WIRELESS DOOR LOCK-WITH(SMART KEY & PUSH START)
POWER DOOR LOCK-DOUBLE LOCK
U.K. SPEC&WIRELESS DOOR LOCK-WITH(SMART KEY & PUSH START)
U.K. SPEC&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
POWER DOOR LOCK-WITH(DOUBLE LOCK)
U.K. SPEC
U.K. SPEC&WIRELESS DOOR LOCK-WITH(SMART KEY)
WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
WIRELESS DOOR LOCK-WITH(SMART KEY)
UK SPEC
UK SPEC&WIRELESS DOOR LOCK-WITH(SMART KEY)
UK SPEC&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
UK SPEC&WIRELESS DOOR LOCK-WITH(SMART KEY & PUSH START)
POWER DOOR LOCK-DOUBLE LOCK
U.K. SPEC
U.K. SPEC&WIRELESS DOOR LOCK-WITH(SMART KEY)
U.K. SPEC&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
U.K. SPEC&WIRELESS DOOR LOCK-WITH(SMART KEY & PUSH START)
POWER DOOR LOCK-WITH(DOUBLE LOCK)
main69730-0D230iNHP130;KSP130,NLP130,NSP130..5D..R;KSP130,NLP130,NSP130..LHD..5D..(G,N,S)201407-202006
WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
UK SPEC&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
UK SPEC&WIRELESS DOOR LOCK-WITH(SMART KEY & PUSH START)
POWER DOOR LOCK-DOUBLE LOCK
WIRELESS DOOR LOCK-WITH(SMART KEY)
UK SPEC
UK SPEC&WIRELESS DOOR LOCK-WITH(SMART KEY)
U.K. SPEC
U.K. SPEC&WIRELESS DOOR LOCK-WITH(SMART KEY)
U.K. SPEC&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
U.K. SPEC&WIRELESS DOOR LOCK-WITH(SMART KEY & PUSH START)
POWER DOOR LOCK-WITH(DOUBLE LOCK)
main69770-0D190iNHP130;KSP130,NLP130,NSP131..5D..R;KSP130,NLP130,NSP131..LHD..5D..(G,N,S)201407-202006
WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
U.K. SPEC&WIRELESS DOOR LOCK-WITH(SMART KEY & PUSH START)
UK SPEC&WIRELESS DOOR LOCK-WITH(SMART KEY)
UK SPEC&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
UK SPEC&WIRELESS DOOR LOCK-WITH(SMART KEY & PUSH START)
POWER DOOR LOCK-DOUBLE LOCK
WIRELESS DOOR LOCK-WITH(SMART KEY)
UK SPEC
U.K. SPEC
U.K. SPEC&WIRELESS DOOR LOCK-WITH(SMART KEY)
U.K. SPEC&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
POWER DOOR LOCK-WITH(DOUBLE LOCK)
main69770-0D190iNHP130;KSP130,NLP130,NSP130..5D..R;KSP130,NLP130,NSP130..LHD..5D..(G,N,S)201407-202006
WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)
692960D040SCREW, DOOR INSIDE HANDLE
main69296-0D040
90148W0004
main90148-W0004
90148W0005
main90148-W0005
90148W0013
main90148-W0013
9018905003
main90189-05003
9356755020
main93567-55020
26 parts on this diagram · 1 diagram in section
