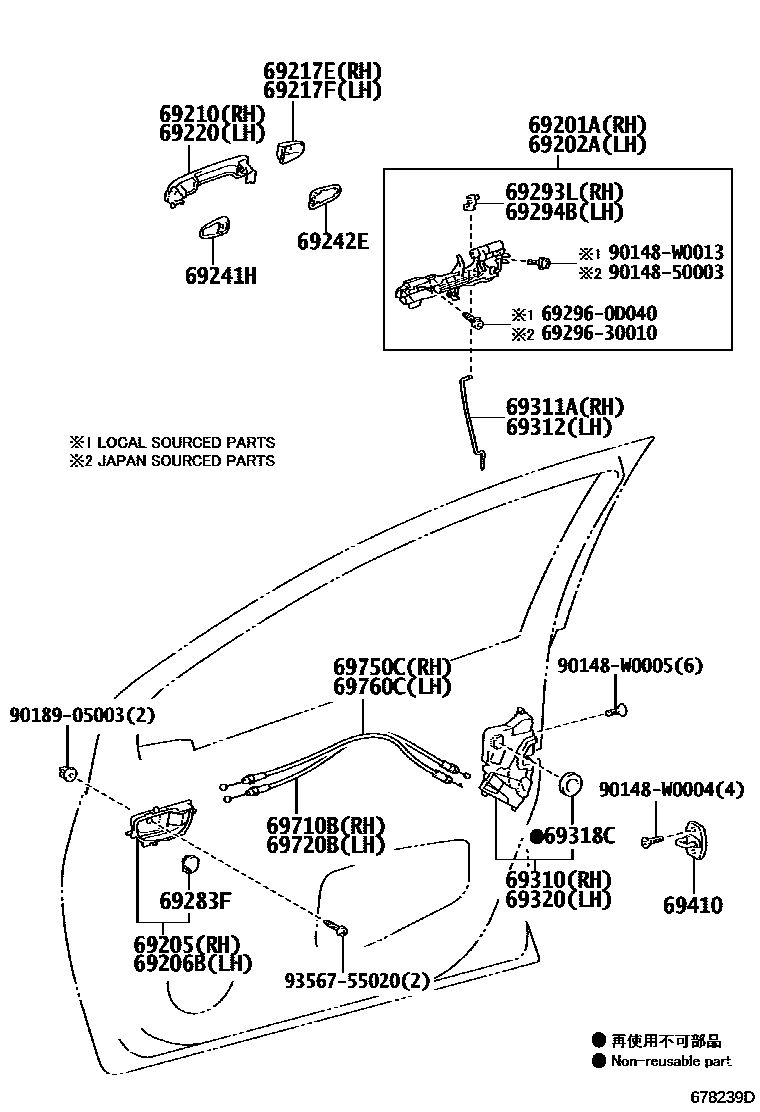

FRONT DOOR LOCK & HANDLE
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)
UK SPEC
UK SPEC&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
UK SPEC&WIRELESS DOOR LOCK-WITH(SMART KEY & PUSH START)
POWER DOOR LOCK-DOUBLE LOCK&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
POWER DOOR LOCK-DOUBLE LOCK&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)&DOOR OUTSIDE HANDLE-COLORED
U.K. SPEC
U.K. SPEC&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
U.K. SPEC&WIRELESS DOOR LOCK-WITH(SMART KEY & PUSH START)
POWER DOOR LOCK-WITH(DOUBLE LOCK)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
POWER DOOR LOCK-WITH(DOUBLE LOCK)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)&DOOR OUTSIDE HANDLE-COLORED
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
EU BLACK,TRIM2#,3#,4#,5#
EU BLACK,TRIM1#,2#
EU BLACK,TRIM2#,3#
EU BLACK,TRIM2#,3#,4#
EU BLACK,TRIM2#,5#
EU BLACK,TRIM2#
SIMPLE PACKAGE,EU BLACK,TRIM2#
EU BLACK,TRIM0#
HV SIMPLE PACKAGE,EU BLACK,TRIM0#
ENTRY PACKAGE,EU BLACK,TRIM2#
EU BLACK,TRIM2#
EU BLACK/SILVER,TRIM2#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
EU BLACK,TRIM2#,3#
EU BLACK,TRIM2#,3#,4#
EU BLACK,TRIM2#,3#,4#,5#
EU BLACK,TRIM2#,5#
EU BLACK,TRIM1#,2#
EU BLACK,TRIM2#
EU BLACK,TRIM0#
HV SIMPLE PACKAGE,EU BLACK,TRIM0#
ENTRY PACKAGE,EU BLACK,TRIM2#
EU BLACK,TRIM2#
SIMPLE PACKAGE,EU BLACK,TRIM2#
EU BLACK/SILVER,TRIM2#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
NO PAINT REQ.,WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-BLACK(PIGMENTATION)
NO PAINT REQ.
NO PAINT REQ.,HV SIMPLE PACKAGE&WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-BLACK(PIGMENTATION)
NO PAINT REQ.,HV ENTRY PACKAGE&WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-BLACK(PIGMENTATION)
NO PAINT REQ.,HV ENTRY PACKAGE&DOOR OUTSIDE HANDLE-BLACK(PIGMENTATION)
NO PAINT REQ.,DOOR OUTSIDE HANDLE-BLACK(PIGMENTATION)
NO PAINT REQ.,SIMPLE PACKAGE&WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-BLACK(PIGMENTATION)
NO PAINT REQ.,ENTRY PACKAGE&WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-BLACK(PIGMENTATION)
NO PAINT REQ.,ENTRY PACKAGE&DOOR OUTSIDE HANDLE-BLACK(PIGMENTATION)
PAINT REQ.,POWER DOOR LOCK-DOUBLE LOCK&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)&DOOROUTSIDE HANDLE-COLORED
PAINT REQ.
PAINT REQ.,DOOR OUTSIDE HANDLE-COLORED
PAINT REQ.,WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)&DOOR OUTSIDE HANDLE-COLORED
PAINT REQ.,WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)&DOOR OUTSIDE HANDLE-COLORED
PAINT REQ.,POWER DOOR LOCK-WITH(DOUBLE LOCK)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)&DOOR OUTSIDE HANDLE-COLORED
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
BLACK,HV ENTRY PACKAGE&WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-BLACK(PIGMENTATION)
BLACK
BLACK,SIMPLE PACKAGE&WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-BLACK(PIGMENTATION)
BLACK,ENTRY PACKAGE&WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-BLACK(PIGMENTATION)
BLACK,ENTRY PACKAGE&DOOR OUTSIDE HANDLE-BLACK(PIGMENTATION)
BLACK,WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-BLACK(PIGMENTATION)
BLACK,HV SIMPLE PACKAGE&WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-BLACK(PIGMENTATION)
BLACK,HV ENTRY PACKAGE&DOOR OUTSIDE HANDLE-BLACK(PIGMENTATION)
LESS COLOR,DOOR OUTSIDE HANDLE-COLORED
LESS COLOR
LESS COLOR,POWER DOOR LOCK-WITH(DOUBLE LOCK)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)&DOOR OUTSIDE HANDLE-COLORED
LESS COLOR,WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)&DOOR OUTSIDE HANDLE-COLORED
LESS COLOR,WIRELESS DOOR LOCK-WITHOUT
LESS COLOR,POWER DOOR LOCK-DOUBLE LOCK&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)&DOOROUTSIDE HANDLE-COLORED
LESS COLOR,WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)&DOOR OUTSIDE HANDLE-COLORED
LESS COLOR,WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)&DOOR OUTSIDE HANDLE-COLORED
LESS COLOR
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
BLACK,WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-BLACK(PIGMENTATION)
BLACK
BLACK,HV SIMPLE PACKAGE&WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-BLACK(PIGMENTATION)
BLACK,HV ENTRY PACKAGE&WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-BLACK(PIGMENTATION)
BLACK,DOOR OUTSIDE HANDLE-BLACK(PIGMENTATION)
BLACK,SIMPLE PACKAGE&WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-BLACK(PIGMENTATION)
BLACK,ENTRY PACKAGE&WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-BLACK(PIGMENTATION)
LESS COLOR,HV ENTRY PACKAGE&WIRELESS DOOR LOCK-WITHOUT
LESS COLOR,WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)&DOOR OUTSIDE HANDLE-COLORED
LESS COLOR,WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)&DOOR OUTSIDE HANDLE-COLORED
LESS COLOR,DOOR OUTSIDE HANDLE-COLORED
LESS COLOR
LESS COLOR,ENTRY PACKAGE&WIRELESS DOOR LOCK-WITHOUT
LESS COLOR
LESS COLOR,POWER DOOR LOCK-DOUBLE LOCK&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)&DOOROUTSIDE HANDLE-COLORED
LESS COLOR,WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)&DOOR OUTSIDE HANDLE-COLORED
LESS COLOR,POWER DOOR LOCK-WITH(DOUBLE LOCK)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)&DOOR OUTSIDE HANDLE-COLORED
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
NO PAINT REQ.,DOOR OUTSIDE HANDLE-BLACK(PIGMENTATION)
NO PAINT REQ.
NO PAINT REQ.,HV SIMPLE PACKAGE&WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-BLACK(PIGMENTATION)
NO PAINT REQ.,HV ENTRY PACKAGE&WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-BLACK(PIGMENTATION)
NO PAINT REQ.,HV ENTRY PACKAGE&DOOR OUTSIDE HANDLE-BLACK(PIGMENTATION)
NO PAINT REQ.,WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-BLACK(PIGMENTATION)
NO PAINT REQ.,SIMPLE PACKAGE&WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-BLACK(PIGMENTATION)
NO PAINT REQ.,ENTRY PACKAGE&WIRELESS DOOR LOCK-WITHOUT&DOOR OUTSIDE HANDLE-BLACK(PIGMENTATION)
NO PAINT REQ.,ENTRY PACKAGE&DOOR OUTSIDE HANDLE-BLACK(PIGMENTATION)
PAINT REQ.,WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)&DOOR OUTSIDE HANDLE-COLORED
PAINT REQ.
PAINT REQ.,POWER DOOR LOCK-WITH(DOUBLE LOCK)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)&DOOR OUTSIDE HANDLE-COLORED
PAINT REQ.,WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)&DOOR OUTSIDE HANDLE-COLORED
PAINT REQ.,DOOR OUTSIDE HANDLE-COLORED
PAINT REQ.,POWER DOOR LOCK-DOUBLE LOCK&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)&DOOROUTSIDE HANDLE-COLORED
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283FPLUG, FRONT DOOR INSIDE HANDLE BEZEL
EU BLACK,TRIM2#,5#
EU BLACK,TRIM1#,2#
EU BLACK,TRIM2#,3#
EU BLACK,TRIM2#,3#,4#
EU BLACK,TRIM0#
EU BLACK,TRIM2#,3#,4#,5#
EU BLACK,TRIM2#
BLACK PACK,EU BLACK,TRIM1#,2#
69293LSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69310LOCK ASSY, FRONT DOOR, RH
UK SPEC&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
UK SPEC&WIRELESS DOOR LOCK-WITH(SMART KEY & PUSH START)
POWER DOOR LOCK-DOUBLE LOCK&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
WIRELESS DOOR LOCK-WITH(SMART KEY)
UK SPEC
UK SPEC&WIRELESS DOOR LOCK-WITH(SMART KEY)
U.K. SPEC
U.K. SPEC&WIRELESS DOOR LOCK-WITH(SMART KEY)
U.K. SPEC&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
U.K. SPEC&WIRELESS DOOR LOCK-WITH(SMART KEY & PUSH START)
POWER DOOR LOCK-WITH(DOUBLE LOCK)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
main69030-0D540iNHP130..LHD;KSP130,NLP130,NSP130..LHD..N;KSP130,NLP130,NSP130..LHD..5D..(G,S)201407-202006
WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)
WIRELESS DOOR LOCK-WITHOUT
WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69320LOCK ASSY, FRONT DOOR, LH
UK SPEC&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
UK SPEC
UK SPEC&WIRELESS DOOR LOCK-WITH(SMART KEY)
UK SPEC&WIRELESS DOOR LOCK-WITH(SMART KEY & PUSH START)
POWER DOOR LOCK-DOUBLE LOCK&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
WIRELESS DOOR LOCK-WITH(SMART KEY)
U.K. SPEC
U.K. SPEC&WIRELESS DOOR LOCK-WITH(SMART KEY)
U.K. SPEC&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
U.K. SPEC&WIRELESS DOOR LOCK-WITH(SMART KEY & PUSH START)
POWER DOOR LOCK-WITH(DOUBLE LOCK)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)
SIMPLE PACKAGE&WIRELESS DOOR LOCK-WITHOUT
HV SIMPLE PACKAGE&WIRELESS DOOR LOCK-WITHOUT
HV ENTRY PACKAGE&WIRELESS DOOR LOCK-WITHOUT
ENTRY PACKAGE&WIRELESS DOOR LOCK-WITHOUT
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
692960D040SCREW, DOOR INSIDE HANDLE
main69296-0D040
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
90148W0004
main90148-W0004
90148W0005
main90148-W0005
90148W0013
main90148-W0013
9018905003
main90189-05003
9356755020
main93567-55020
31 parts on this diagram · 1 diagram in section
