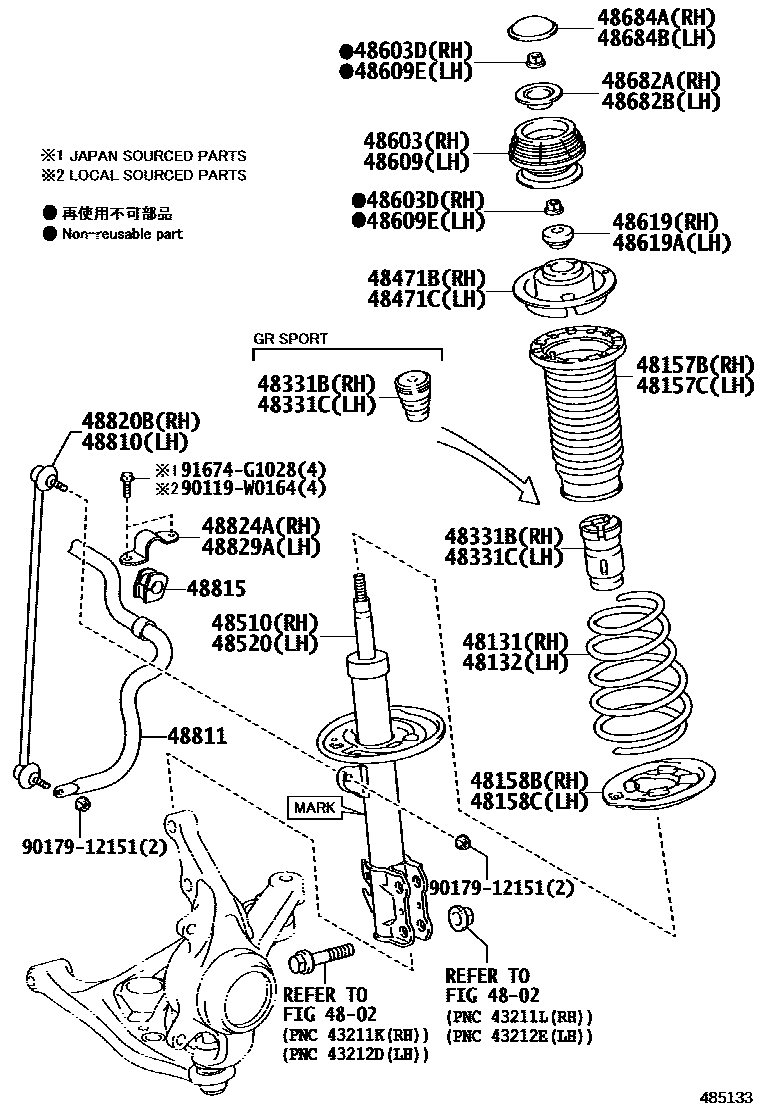

FRONT SPRING & SHOCK ABSORBER

4802

48131SPRING, FRONT COIL, RH

main48131-0D671iNSP131..S201703-201708

TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM BLACK

sub48131-0D672

main48131-0D671iNSP131..G,N201703-201708

TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM

sub48131-0D672

main48131-0D671iNSP130..S201407-201703

sub48131-0D672

main48131-0D672iNSP131..G,N201709-201811

TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM BLACK

main48131-0D672iNSP131..S201709-201811

TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM

main48131-0D711iNLP130201805-201812

sub48131-0D712

main48131-0DB30iNLP130201407-201709

main48131-0DB30iNHP130201703-201708

TIRE & DISC WHEEL-205/45R17, 7J ALUMINUM

main48131-0DB31iNHP130..N201709-202006

TIRE & DISC WHEEL-205/45R17, 7J ALUMINUM

sub48131-0DB32

main48131-0DB31iNLP130..LHD201709-201805

sub48131-0DB32

main48131-0DB40iKSP130201407-201708

sub48131-0DB41

main48131-0DB41iKSP130201709-202006

main48131-0DB90iNSP130..G,N,R201407-201703

sub48131-0DB91

main48131-0DB90iNSP131..G,N,R201703-201708

TIRE & DISC WHEEL-175/65R15, 5J ALUMINUM

sub48131-0DB91

main48131-0DB90iNSP131..G,N,R201703-201708

TIRE & DISC WHEEL-205/45R17, 7J ALUMINUM

sub48131-0DB91

main48131-0DB91iNSP131..G,N,R201709-202006

TIRE & DISC WHEEL-205/45R17, 7J ALUMINUM

main48131-0DC10iNSP130..G,N,S201407-201703

TIRE & DISC WHEEL-185/60R15 5.5J ALUMI ROUGH ROAD SPEC

sub48131-0DC11

main48131-0DC10iNLP130..G,N,R201407-201505

sub48131-0DC11

main48131-0DC10iNSP130..5D..(N,R);NSP130..3D..(G,N,R)201407-201703

TIRE & DISC WHEEL-185/60R15 5.5J ROUGH ROAD SPEC W(NUT)

sub48131-0DC11

main48131-0DC10iNSP130..5D..(N,R);NSP130..3D..(G,N,R)201407-201703

TIRE & DISC WHEEL-185/60R15 5.5J STEEL ROUGH ROAD SPEC

sub48131-0DC11

48132SPRING, FRONT COIL, LH

main48131-0D671iNSP131..S201703-201708

TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM

sub48131-0D672

main48131-0D671iNSP130..S201407-201703

sub48131-0D672

main48131-0D671iNSP131..G,N201703-201708

TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM BLACK

sub48131-0D672

main48131-0D672iNSP131..S201709-201811

TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM BLACK

main48131-0D672iNSP131..G,N201709-201811

TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM

main48131-0D711iNLP130201805-201812

sub48131-0D712

main48131-0DB30iNHP130..N201703-201708

TIRE & DISC WHEEL-205/45R17, 7J ALUMINUM

main48131-0DB30iNLP130..S201407-201709

main48131-0DB31iNLP130..LHD201709-201805

sub48131-0DB32

main48131-0DB31iNHP130;NLP130..RHD201709-202006

TIRE & DISC WHEEL-205/45R17, 7J ALUMINUM

sub48131-0DB32

main48131-0DB40iKSP130201407-201708

sub48131-0DB41

main48131-0DB41iKSP130201709-202006

main48131-0DB90iNSP131..5D..6F..N201703-201708

TIRE & DISC WHEEL-175/65R15, 5J ALUMINUM

sub48131-0DB91

main48131-0DB90iNSP130..G,N,R201407-201703

sub48131-0DB91

main48131-0DB90iNSP131..G,N,R201703-201708

TIRE & DISC WHEEL-205/45R17, 7J ALUMINUM

sub48131-0DB91

main48131-0DB91iNSP131..G,N,R201709-202006

TIRE & DISC WHEEL-205/45R17, 7J ALUMINUM

main48131-0DC10iNSP130..R201407-201703

TIRE & DISC WHEEL-185/60R15 5.5J ALUMI ROUGH ROAD SPEC

sub48131-0DC11

main48131-0DC10iNSP130..5D..(N,R);NSP130..3D..(G,N,R)201407-201703

TIRE & DISC WHEEL-185/60R15 5.5J ROUGH ROAD SPEC W(NUT)

sub48131-0DC11

main48131-0DC10iNSP130..5D..(N,R);NSP130..3D..(G,N,R)201407-201703

TIRE & DISC WHEEL-185/60R15 5.5J STEEL ROUGH ROAD SPEC

sub48131-0DC11

main48131-0DC10iNLP130..G,N,R201407-201505

sub48131-0DC11

48157BINSULATOR, FRONT COIL SPRING, UPPER RH

main48157-0D090iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

48157CINSULATOR, FRONT COIL SPRING, UPPER LH

main48157-0D090iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-0D020iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-0D020iNHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)201407-202006

48331BBUMPER, FRONT SPRING, RH

main48331-0D030iNLP130201805-201812

main48331-0D150iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

48331CBUMPER, FRONT SPRING, LH

main48331-0D030iNLP130201805-201812

main48331-0D150iNHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)201407-202006

48471BSEAT, FRONT COIL SPRING, UPPER RH

main48471-0D140iKSP130,NHP130,NLP130,NSP131201407-202006

48471CSEAT, FRONT COIL SPRING, UPPER LH

main48471-0D140iKSP130,NHP130,NLP130,NSP131201407-202006

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-0D870iKSP130201407-201910

MARK 48510-0D870

sub48510-0D871

main48510-0D871iKSP130201911-202006

MARK 48510-0D871

main48510-0D880iNLP130;NSP131..S201407-201705

MARK 48510-0D880

sub48510-0D881

main48510-0D881iNSP131..S;NLP130..RHD201706-201811

MARK 48510-0D881

main48510-0D890iNSP130..G,N,R201407-201703

MARK 48510-0D890

main48510-0DA20iNHP130201407-201703

MARK 48510-0DA20

sub48510-0DA21

main48510-0DA30iNLP130201805-201812

MARK 48510-0DA30

sub48510-0DA31

main48510-0DE60iNHP130..N201703-201708

MARK 48510-0DE60,TIRE & DISC WHEEL-175/65R15, 5J ALUMI

sub48510-0DE61

main48510-0DE60iNHP130..N201703-201708

MARK 48510-0DE60

sub48510-0DE61

main48510-0DE60iNHP130..N201703-201708

MARK 48510-0DE60,TIRE & DISC WHEEL-175/65R15, 5J ALUMINUM

sub48510-0DE61

main48510-0DE60iNHP130..N201703-201708

MARK 48510-0DE60,TIRE & DISC WHEEL-175/65R15, 5.5J ALUMINUM

sub48510-0DE61

main48510-0DE60iNHP130..N201703-201708

MARK 48510-0DE60,TIRE & DISC WHEEL-205/45R17, 7J ALUMINUM

sub48510-0DE61

main48510-0DE61iNHP130..N201709-201910

MARK 48510-0DE61,TIRE & DISC WHEEL-175/65R15, 5J ALUMINUM

sub48510-0DE62

main48510-0DE61iNHP130..N201709-201910

MARK 48510-0DE61

sub48510-0DE62

main48510-0DE61iNHP130..N201709-201910

MARK 48510-0DE61,TIRE & DISC WHEEL-175/65R15, 5.5J ALUMINUM

sub48510-0DE62

main48510-0DE61iNHP130..N201709-201910

MARK 48510-0DE61,TIRE & DISC WHEEL-175/65R15, 5J ALUMI

sub48510-0DE62

main48510-0DE61iNHP130..N201709-201910

MARK 48510-0DE61,TIRE & DISC WHEEL-205/45R17, 7J ALUMINUM

sub48510-0DE62

main48510-0DE62iNHP130..G201911-202006

MARK 48510-0DE62,TIRE & DISC WHEEL-205/45R17, 7J ALUMINUM

main48510-0DE62iNHP130..N201911-202006

MARK 48510-0DE62,TIRE & DISC WHEEL-175/65R15, 5.5J ALUMINUM

main48510-0DE62iNHP130..N201911-202006

MARK 48510-0DE62,TIRE & DISC WHEEL-175/65R15, 5J ALUMINUM

main48510-0DE62iNHP130..N201911-202006

MARK 48510-0DE62

main48510-0DE62iNHP130..N201911-202006

MARK 48510-0DE62,TIRE & DISC WHEEL-175/65R15, 5J ALUMI

main48510-0DE70iNHP130..N;NSP131..G,N201703-201708

MARK 48510-0DE70,TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM BLACK

sub48510-0DE71

main48510-0DE70iNHP130..G,S201703-201708

MARK 48510-0DE70

sub48510-0DE71

main48510-0DE70iNHP130..G,S201703-201708

MARK 48510-0DE70,TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM

sub48510-0DE71

main48510-0DE71iNHP130..N201709-201910

MARK 48510-0DE71

sub48510-0DE72

main48510-0DE71iNHP130..G,S201709-201910

MARK 48510-0DE71,TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM

sub48510-0DE72

main48510-0DE72iNSP131..G201911-202006

MARK 48510-0DE72,TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM

main48510-0DE72iNHP130..G201911-202006

MARK 48510-0DE72

main48510-0DF00iNSP131..5D..6F..N201703-201708

MARK 48510-0DF00,TIRE & DISC WHEEL-205/45R17, 7J ALUMINUM

main48510-0DF00iNSP131..5D..6F..N201703-201708

MARK 48510-0DF00,TIRE & DISC WHEEL-175/65R15, 5J ALUMINUM

main48510-0DF00iNSP131..5D..6F..N201703-201708

MARK 48510-0DF00

main48510-0DF01iNSP131..G,N,R201709-201910

MARK 48510-0DF01

sub48510-0DF02

main48510-0DF01iNSP131..G,N,R201709-201910

MARK 48510-0DF01,TIRE & DISC WHEEL-205/45R17, 7J ALUMINUM

sub48510-0DF02

main48510-0DF02iNSP131201911-202006

MARK 48510-0DF02

main48510-0DF02iNSP131201911-202006

MARK 48510-0DF02,TIRE & DISC WHEEL-205/45R17, 7J ALUMINUM

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-0D280iKSP130201407-201910

MARK 48520-0D280

sub48520-0D281

main48520-0D281iKSP130201911-202006

MARK 48520-0D281

main48520-0D290iNLP130;NSP131..S201407-201705

MARK 48520-0D290

sub48520-0D291

main48520-0D291iNLP130..LHD201706-201811

MARK 48520-0D290

main48520-0D300iNLP130..G,N,R201407-201703

MARK 48520-0D300

main48520-0D330iNHP130201407-201703

MARK 48520-0D330

sub48520-0D331

main48520-0D340iNLP130201805-201812

MARK 48520-0D340

sub48520-0D341

main48520-0D420iNHP130..N201703-201708

MARK 48520-0D420

sub48520-0D421

main48520-0D420iNHP130..N201703-201708

MARK 48520-0D420,TIRE & DISC WHEEL-175/65R15, 5J ALUMINUM

sub48520-0D421

main48520-0D420iNHP130..N201703-201708

MARK 48520-0D420,TIRE & DISC WHEEL-175/65R15, 5.5J ALUMINUM

sub48520-0D421

main48520-0D420iNHP130..N201703-201708

MARK 48520-0D420,TIRE & DISC WHEEL-175/65R15, 5J ALUMI

sub48520-0D421

main48520-0D420iNHP130..N201703-201708

MARK 48520-0D420,TIRE & DISC WHEEL-205/45R17, 7J ALUMINUM

sub48520-0D421

main48520-0D421iNHP130..N201709-201910

MARK 48520-0D421,TIRE & DISC WHEEL-175/65R15, 5J ALUMINUM

sub48520-0D422

main48520-0D421iNHP130..N201709-201910

MARK 48520-0D421

sub48520-0D422

main48520-0D421iNHP130..G201709-201910

MARK 48520-0D421,TIRE & DISC WHEEL-205/45R17, 7J ALUMINUM

sub48520-0D422

main48520-0D421iNHP130..G201709-201910

MARK 48520-0D421,TIRE & DISC WHEEL-175/65R15, 5J ALUMI

sub48520-0D422

main48520-0D421iNHP130..G201709-201910

MARK 48520-0D421,TIRE & DISC WHEEL-175/65R15, 5.5J ALUMINUM

sub48520-0D422

main48520-0D422iNHP130..G201911-202006

MARK 48520-0D422,TIRE & DISC WHEEL-175/65R15, 5J ALUMI

main48520-0D422iNHP130..N201911-202006

MARK 48520-0D422

main48520-0D422iNHP130..N201911-202006

MARK 48520-0D422,TIRE & DISC WHEEL-175/65R15, 5J ALUMINUM

main48520-0D422iNHP130..N201911-202006

MARK 48520-0D422,TIRE & DISC WHEEL-175/65R15, 5.5J ALUMINUM

main48520-0D422iNHP130..N201911-202006

MARK 48520-0D422,TIRE & DISC WHEEL-205/45R17, 7J ALUMINUM

main48520-0D430iNHP130..N;NSP131..G,N201703-201708

MARK 48520-0D430

sub48520-0D431

main48520-0D430iNHP130..N;NSP131..G,N201703-201708

MARK 48520-0D430,TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM BLACK

sub48520-0D431

main48520-0D430iNHP130..N;NSP131..G,N201703-201708

MARK 48520-0D430,TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM

sub48520-0D431

main48520-0D431iNHP130..N201709-201910

MARK 48520-0D431

sub48520-0D432

main48520-0D431iNHP130..N201709-201910

MARK 48520-0D431,TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM

sub48520-0D432

main48520-0D432iNSP131..G201911-202006

MARK 48520-0D432

main48520-0D432iNHP130..G201911-202006

MARK 48520-0D432,TIRE & DISC WHEEL-195/50R16, 6J ALUMINUM

main48520-0D440iNSP131..5D..6F..N201703-201708

MARK 48520-0D440,TIRE & DISC WHEEL-205/45R17, 7J ALUMINUM

main48520-0D440iNSP131..G,N,R201703-201708

MARK 48520-0D440

main48520-0D440iNSP131..G,N,R201703-201708

MARK 48520-0D440,TIRE & DISC WHEEL-175/65R15, 5J ALUMINUM

main48520-0D441iNSP131..5D..6F..N201709-201910

MARK 48520-0D441,TIRE & DISC WHEEL-205/45R17, 7J ALUMINUM

sub48520-0D442

main48520-0D441iNSP131..5D..6F..N201709-201910

MARK 48520-0D441

sub48520-0D442

main48520-0D442iNSP131201911-202006

MARK 48520-0D442

main48520-0D442iNSP131201911-202006

MARK 48520-0D442,TIRE & DISC WHEEL-205/45R17, 7J ALUMINUM

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-0D041iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90178-W0015iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

(L)

main90179-12145iNHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)201407-202006

(J)

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-0D041iKSP130,NHP130,NLP130,NSP131201407-202006

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90178-W0015iKSP130,NHP130,NLP130,NSP131201407-202006

(L)

main90179-12145iKSP130,NHP130,NLP130,NSP131201407-202006

(J)

48619BEARING, STRUT MOUNTING, RH

main48619-0D011iNHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)201407-202006

main48619-0D031iKSP130,NHP130,NLP130,NSP130201501-201502

48619ABEARING, STRUT MOUNTING, LH

main48619-0D011iKSP130,NHP130,NLP130,NSP130201407-202006

main48619-0D031iKSP130,NHP130,NLP130,NSP130201501-201502

48682ASUPPORT, FRONT SUSPENSION, NO.2 RH

main48682-0D021iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

48682BSUPPORT, FRONT SUSPENSION, NO.2 LH

main48682-0D021iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH

main48684-52020iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH

main48684-52020iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

48810LINK ASSY, FRONT STABILIZER, LH

main48820-52040iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

48811BAR, STABILIZER, FRONT

main48811-0D150iNHP130..N;NSP131..5D..6F..N201703-202006

GR SPORT

main48811-0D150iNHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)201407-201703

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-0D100iKSP130,NLP130,NSP130..3D..(G,S)201407-202006

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-52040iNHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)201407-202006

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-52060iNHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)201407-202006

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-52060iNHP130;KSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)201407-202006

90119W0164

main90119-W0164

9017912151

main90179-12151

91674G1028

main91674-G1028

32 parts on this diagram · 1 diagram in section
