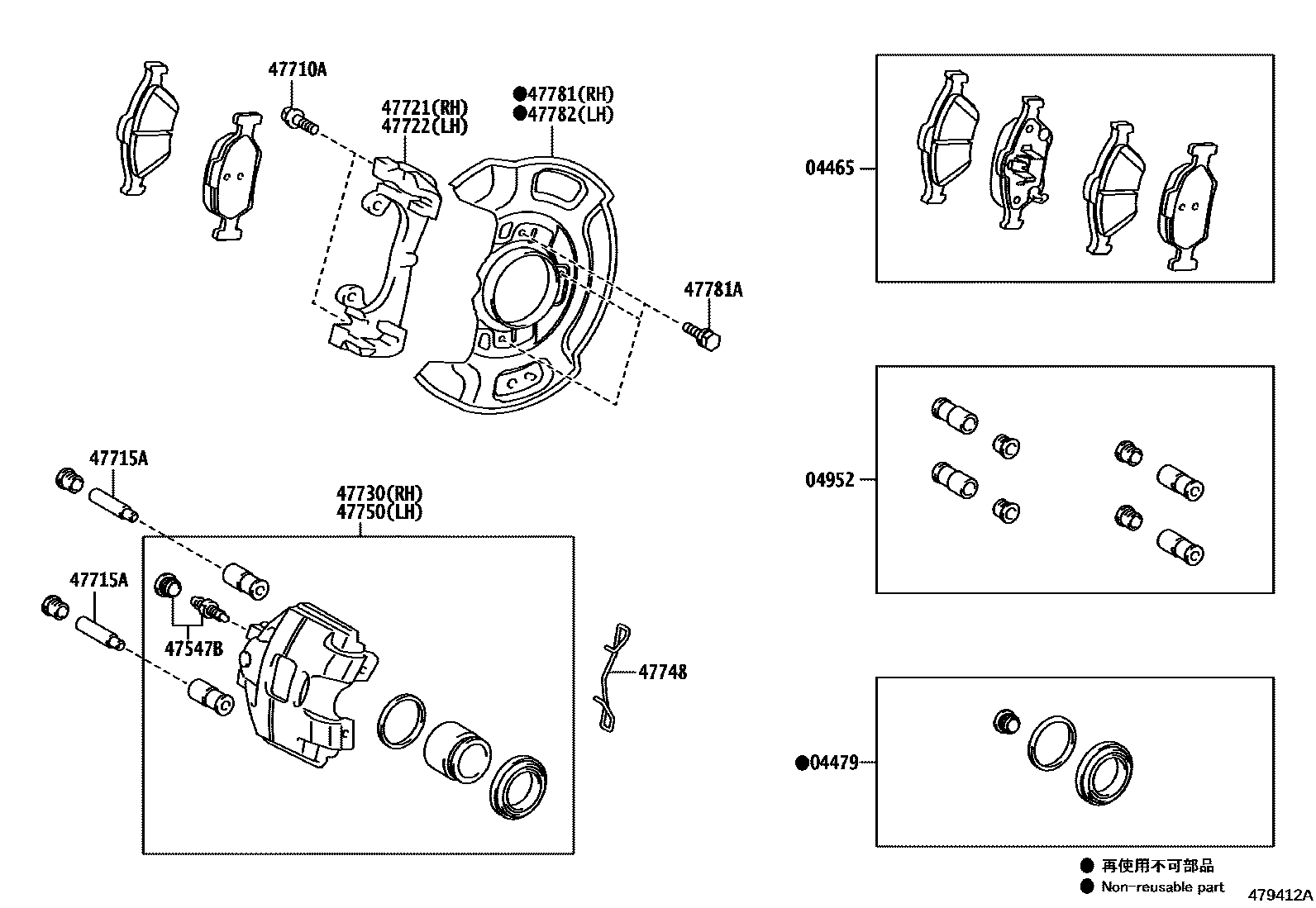

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-0D050iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

MARK PAGID 766

main04465-0D120iNSP131..G,N,R201703-201908

MARK GALFER 5019

main04465-0D210iKSP130201703-202006

MARK GALFER 5019

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-0D050×2iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

04952PIN KIT, FRONT DISC BRAKE CYLINDER SLIDE

main04951-05010iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-09050×2iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-W0121×4iKSP130,NHP130,NLP130,NSP130201407-201703

*12-1.25PX29.5-23

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-05010×4iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-0D070iKSP130201703-202006

main47721-0D200iNHP130201407-201703

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-0D070iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

main47721-0D200iNSP131..S;NHP130,NLP130201703-202006

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-0D070iKSP130201703-202006

main47730-0D200iNHP130201407-201703

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-0D070×2iKSP130,NLP130,NSP130..3D..(G,S)201407-201511

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-0D070iKSP130,NLP130,NSP130..N,R;KSP130,NLP130,NSP130..5D..(G,S)201407-201703

main47750-0D200iNSP131..G,N,R201703-201908

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-0D170iKSP130,NHP130,NLP130,NSP130201407-201703

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90080-11525×6iKSP130,NHP130,NLP130,NSP130201407-201703

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-0D100iKSP130,NHP130,NLP130,NSP131201703-202006

14 parts on this diagram · 1 diagram in section
