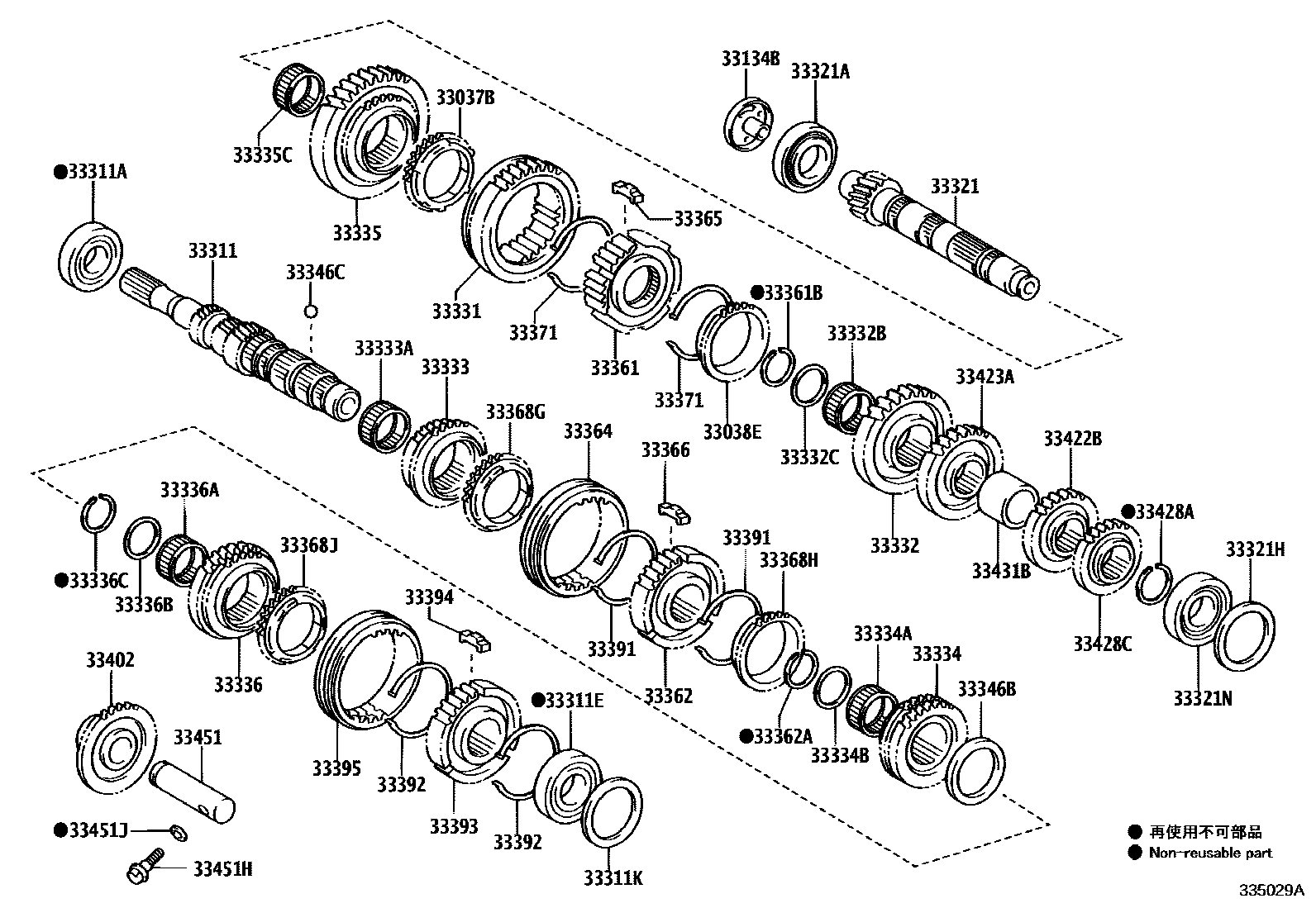

TRANSMISSION GEAR (MTM)
33038ERING SET, SYNCHRONIZER, NO.2
33134BCOVER, OUTPUT SHAFT(MTM)
WITH(STOP & START SYSTEM)
33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)
WITH(STOP & START SYSTEM)
sub90363-W0014
sub90363-W0016
33311KSHIM (FOR INPUT SHAFT REAR BEARING)
T=1.80,MARK F
T=1.85,MARK G
T=1.90,MARK H
T=1.95,MARK J
T=2.00,MARK K
T=2.05,MARK L
T=2.10,MARK M
T=2.15,MARK N
T=2.20,MARK A
T=2.25,MARK Q
T=2.30,MARK R
T=2.35,MARK S
T=2.40,MARK T
T=1.30,MARK 08
T=1.35,MARK 09
T=1.40,MARK 10
T=1.45,MARK 11
T=1.50,MARK 12
T=1.55,MARK 13
T=1.60,MARK 14
T=1.65,MARK 15
T=1.70,MARK 16
T=1.75,MARK 17
T=1.80,MARK 18
T=1.85,MARK 19
33321SHAFT, OUTPUT
WITH(STOP & START SYSTEM)
33321HSHIM (FOR OUTPUT SHAFT REAR BEARING)
T=1.55,MARK A
T=1.60,MARK B
T=1.65,MARK C
T=1.70,MARK D
T=1.75,MARK E
T=1.80,MARK F
T=1.85,MARK G
T=1.90,MARK H
T=1.95,MARK J
T=2.00,MARK K
T=2.05,MARK L
T=2.10,MARK M
T=2.15,MARK N
T=2.20,MARK A
T=2.25,MARK Q
T=1.750,MARK 50
T=1.755,MARK 51
T=1.800,MARK 52
T=1.825,MARK 53
T=1.850,MARK 54
T=1.875,MARK 55
T=1.900,MARK 56
T=1.925,MARK 57
T=1.950,MARK 58
T=1.975,MARK 59
T=2.000,MARK 60
T=2.025,MARK 61
T=2.050,MARK 62
T=2.075,MARK 63
T=2.100,MARK 64
T=2.125,MARK 65
T=2.150,MARK 66
T=2.175,MARK 67
T=2.200,MARK 68
T=2.225,MARK 69
T=2.250,MARK 70
T=2.275,MARK 71
T=2.300,MARK 72
T=2.325,MARK 73
T=2.350,MARK 74
T=2.375,MARK 75
T=2.400,MARK 76
T=2.425,MARK 77
T=2.450,MARK 78
T=2.475,MARK 79
T=2.500,MARK 80
T=2.525,MARK 81
T=2.550,MARK 82
T=2.575,MARK 83
T=2.600,MARK 84
T=2.625,MARK 85
T=2.650,MARK 86
T=2.675,MARK 87
T=2.700,MARK 88
T=2.725,MARK 89
T=2.750,MARK 90
T=2.775,MARK 91
T=2.800,MARK 92
33321NBEARING (FOR OUTPUT SHAFT FRONT)
WITH(STOP & START SYSTEM)
33331GEAR, REVERSE
33332CSPACER (FOR 2ND GEAR BEARING)
33333GEAR, 3RD
WITH(STOP & START SYSTEM)
33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
WITH(STOP & START SYSTEM)
33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)
WITH(STOP & START SYSTEM)
33334BSPACER (FOR 4TH GEAR BEARING)
33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33336GEAR, 5TH
WITH(STOP & START SYSTEM)
33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)
WITH(STOP & START SYSTEM)
33336BSPACER (FOR 5TH GEAR BEARING)
33336CRING, SHAFT SNAP (FOR 5TH GEAR)
T=2.28,MARK 1
T=2.34,MARK 2
T=2.40,MARK 3
T=2.46,MARK 4
T=2.52,MARK 5
T=2.58,MARK 6
33346BWASHER, 5TH GEAR THRUST
33346CBALL (FOR 5TH GEAR THRUST WASHER)
WITH(STOP & START SYSTEM)
33361HUB, TRANSMISSION CLUTCH, NO.1
WITH(STOP & START SYSTEM)
33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
T=2.28,MARK A
T=2.34,MARK B
T=2.40,MARK C
T=2.46,MARK D
T=2.52,MARK E
T=2.58,MARK F
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
T=2.28,MARK A
T=2.34,MARK B
T=2.40,MARK C
T=2.46,MARK D
T=2.52,MARK E
T=2.58,MARK F
T=2.27,MARK 0
T=2.32,MARK 1
T=2.37,MARK 2
T=2.42,MARK 3
T=2.47,MARK 4
T=2.52,MARK 5
T=2.57,MARK 6
T=2.62,MARK 7
33364SLEEVE, TRANSMISSION HUB, NO.2
WITH(STOP & START SYSTEM)
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33368GRING, SYNCHRONIZER (FOR 3RD GEAR)
WITH(STOP & START SYSTEM)
33368HRING, SYNCHRONIZER (FOR 4TH GEAR)
WITH(STOP & START SYSTEM)
33368JRING, SYNCHRONIZER (FOR 5TH GEAR)
WITH(STOP & START SYSTEM)
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
WITH(STOP & START SYSTEM)
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
WITH(STOP & START SYSTEM)
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
WITH(STOP & START SYSTEM)
33394KEY, SYNCHROMESH SHIFTING, NO.3
33395SLEEVE, TRANSMISSION HUB, NO.3
WITH(STOP & START SYSTEM)
33402GEAR SUB-ASSY, REVERSE IDLER
WITH(STOP & START SYSTEM)
33422BGEAR, 4TH DRIVEN
WITH(STOP & START SYSTEM)
33423AGEAR, 3RD DRIVEN
WITH(STOP & START SYSTEM)
33428ARING, SHAFT SNAP (FOR COUNTER 5TH GEAR)
T=2.22,MARK A
T=2.28,MARK B
T=2.34,MARK C
T=2.40,MARK D
T=2.46,MARK E
T=2.52,MARK F
T=2.58,MARK G
T=2.64,MARK H
T=2.70,MARK J
33428CGEAR, 5TH DRIVEN
WITH(STOP & START SYSTEM)
33431BSPACER, OUTPUT SHAFT
sub33431-52020
33451SHAFT, REVERSE IDLER GEAR
WITH(STOP & START SYSTEM)
33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)
(J)
(L)
(L)
(J)
33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)
WITH(STOP & START SYSTEM)
53 parts on this diagram · 2 diagrams in section
