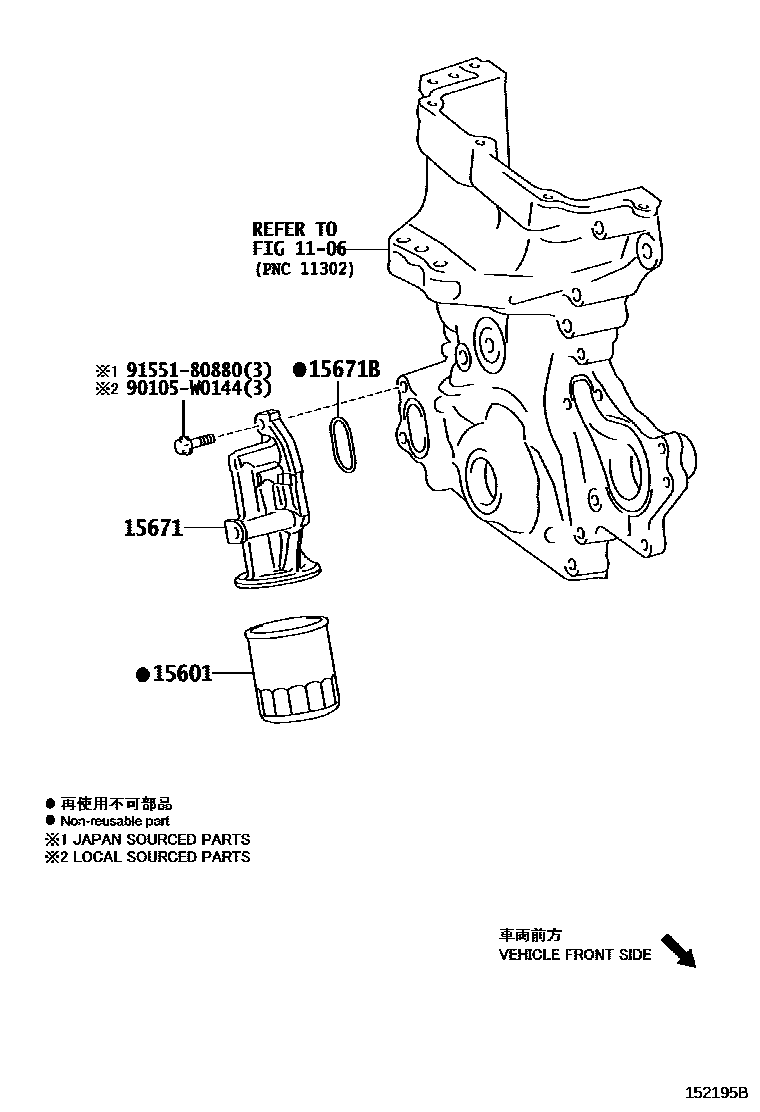

OIL FILTER

0001 1 0002 1 0003 1 0004 1

1106

15601FILTER SUB-ASSY, OIL

main90915-10003i1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G201407-201703

(J)

sub90915-10009

main90915-CA003i1KRFE..KSP130..3D..G201407-201511

(L),MARK 90915-CA003

main90915-TA001i1KRFE..KSP130..N,R;1KRFE..KSP130..5D..G201407-201703

(L),MARK 90915-TA001

15671BRACKET, OIL FILTER

main15671-0Q010i1KRFE..KSP130..3D..G201407-201511

15671BGASKET, OIL FILTER BRACKET

main15691-40020i1KRFE..KSP130..3D..G201407-201511

90105W0144

main90105-W0144

9155180880

main91551-80880

6 parts on this diagram · 4 diagrams in section
