HEATING & AIR CONDITIONING - COMPRESSOR

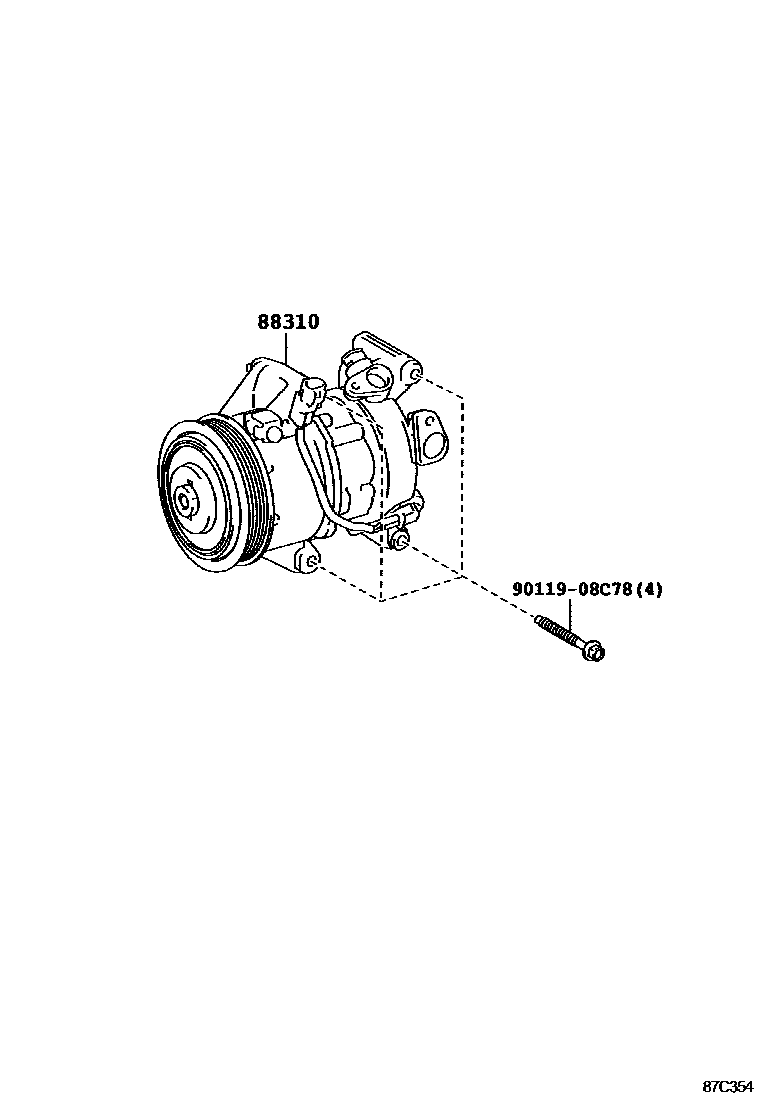

88310COMPRESSOR ASSY, W/PULLEY

main88310-0D380i201107-201407

AIR CONDITIONER COMPRESSOR-WITHOUT; COLD SPEC & WITH(REAR HEATER DUCT)&AIR CONDITIONER COMPRESSOR-WITHOUT; COLD SPEC & WITHOUT(REAR HEATER DUCT)&AIR CONDITIONER COMPRESSOR-WITHOUT

main88310-0D400i201107-201407

AIR CONDITIONER COMPRESSOR-WITHOUT; COLD SPEC & WITH(REAR HEATER DUCT)&AIR CONDITIONER COMPRESSOR-WITHOUT; COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION; COLD SPEC & WITHOUT(REAR HEATER DUCT)&AIR CONDITIONER COMPRESSOR-WITHOUT; FRONT AIR CONDITIONER-DEALER OPTION

main88310-0D410i201107-201407

COLD SPEC & WITH(REAR HEATER DUCT); COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION; COLD SPEC & WITHOUT(REAR HEATER DUCT); FRONT AIR CONDITIONER-DEALER OPTION

main88310-0D420i201107-201407

COLD SPEC & WITH(REAR HEATER DUCT); COLD SPEC & WITHOUT(REAR HEATER DUCT)

9011908C78

main90119-08C78

2 parts on this diagram · 5 diagrams in section
