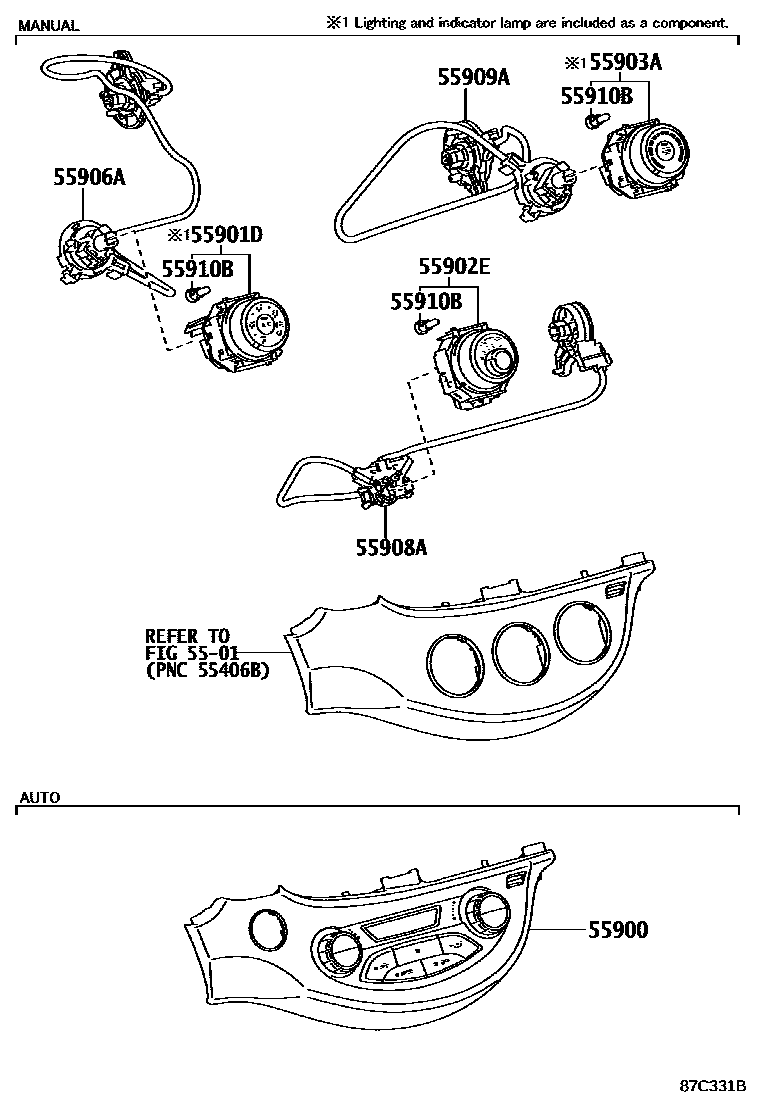

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT
5501INSTRUMENT PANEL & GLOVE COMPARTMENT
55900CONTROL ASSY, AIR CONDITIONER
BLACK,TRIM1#; WIRELESS DOOR LOCK-WITH(PUSH START),BLACK,TRIM1#; WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLACK,TRIM1#
BLACK,TRIM1#
main55900-0D310-C0supersedes 55900-0D330-C0iKSP130,NLP130,NSP130..LHD..(ACTIV,STYLE); KSP130,NLP130,NSP130..LHD..LOUNG201107-201407
WIRELESS DOOR LOCK-WITH(SMART ENTRY)&FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL),BLACK,TRIM1#; WIRELESS DOOR LOCK-WITH(SMART ENTRY),BLACK,TRIM1#
main55900-0D320-C0iKSP130,NLP130,NSP130..RHD..(ACTIV,STYLE); KSP130,NLP130,NSP130..RHD..LOUNG201107-201407
BLACK,TRIM1#; FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL),BLACK,TRIM1#; HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-DEALER OPTION,BLACK,TRIM1#; HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)),BLACK,TRIM1#; HEATER CONTROL PANEL-MANUAL+PLATING&FRONT AIR CONDITIONER-DEALER OPTION,BLACK,TRIM1#; HEATER CONTROL PANEL-MANUAL+PLATING&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)),BLACK,TRIM1#
main55900-0D330-C0iKSP130,NLP130,NSP130..LHD..(ACTIV,STYLE); KSP130,NLP130,NSP130..LHD..LOUNG201107-201407
BLACK,TRIM1#; FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL),BLACK,TRIM1#; HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-DEALER OPTION,BLACK,TRIM1#; HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)),BLACK,TRIM1#; HEATER CONTROL PANEL-MANUAL+PLATING&FRONT AIR CONDITIONER-DEALER OPTION,BLACK,TRIM1#; HEATER CONTROL PANEL-MANUAL+PLATING&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)),BLACK,TRIM1#; WIRELESS DOOR LOCK-WITH(SMART ENTRY)&HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-DEALER OPTION,BLACK,TRIM1#; WIRELESS DOOR LOCK-WITH(SMART ENTRY)&HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)),BLACK,TRIM1#
55901DCONTROL SUB-ASSY, HEATER, NO.1
FRONT AIR CONDITIONER-DEALER OPTION
FRONT AIR CONDITIONER-DEALER OPTION,W/O(AIR CONDITIONER); FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))
main55901-0D290iKSP130,NLP130,NSP130; KSP130,NLP130,NSP130..ACTIV,STYLE; KSP130,NLP130,NSP130..LHD; KSP130,NLP130,NSP130..LOUNG; NLP130..LHD201107-201407
COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION; COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION; FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL); FRONT AIR CONDITIONER-DEALER OPTION,CHROME PLATED; HEATER CONTROL PANEL-MANUAL+PLATING&FRONT AIR CONDITIONER-DEALER OPTION
FRONT AIR CONDITIONER-DEALER OPTION,W/O(AIR CONDITIONER); FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)); HEATER CONTROL PANEL-MANUAL+PLATING&FRONT AIR CONDITIONER-DEALER OPTION,W/O(AIR CONDITIONER); HEATER CONTROL PANEL-MANUAL+PLATING&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))
55902ECONTROL SUB-ASSY, HEATER, NO.2
FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL); HEATER CONTROL PANEL-MANUAL+PLATING&FRONT AIR CONDITIONER-DEALER OPTION; HEATER CONTROL PANEL-MANUAL+PLATING&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))
55903ACONTROL SUB-ASSY, HEATER, NO.3
COLD SPEC & WITH(REAR HEATER DUCT); COLD SPEC & WITHOUT(REAR HEATER DUCT)
main55903-0D290iKSP130,NLP130,NSP130..ACTIV,STYLE; KSP130,NLP130,NSP130..LOUNG; KSP130,NSP130..LHD..(ACTIV,STYLE); NLP130..LHD..(ACTIV,STYLE)201107
COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL); COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL); FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL); HEATER CONTROL PANEL-MANUAL+PLATING&FRONT AIR CONDITIONER-DEALER OPTION; HEATER CONTROL PANEL-MANUAL+PLATING&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))
main55903-0D300iKSP130,NSP130..LHD..(ACTIV,STYLE); KSP130,NSP130..LHD..LOUNG; NLP130..LHD..(ACTIV,STYLE); NLP130..LHD..LOUNG201107
COLD SPEC & WITH(REAR HEATER DUCT); COLD SPEC & WITH(REAR HEATER DUCT)&HEATER CONTROL PANEL-MANUAL+PLATING&FRONT AIR CONDITIONER-DEALER OPTION; COLD SPEC & WITH(REAR HEATER DUCT)&HEATER CONTROL PANEL-MANUAL+PLATING&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)); COLD SPEC & WITHOUT(REAR HEATER DUCT); COLD SPEC & WITHOUT(REAR HEATER DUCT)&HEATER CONTROL PANEL-MANUAL+PLATING&FRONT AIR CONDITIONER-DEALER OPTION; COLD SPEC & WITHOUT(REAR HEATER DUCT)&HEATER CONTROL PANEL-MANUAL+PLATING&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))
55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL
main55906-52132iKSP130,NLP130,NSP130..ACTIV,STD,STYLE; KSP130,NLP130,NSP130..ACTIV,STYLE; KSP130,NLP130,NSP130..LOUNG201107-201407
FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL); HEATER CONTROL PANEL-MANUAL+PLATING
55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL
main55908-52120iKSP130,NLP130,NSP130..LHD..(ACTIV,STD,STYLE); KSP130,NLP130,NSP130..LHD..(ACTIV,STYLE); KSP130,NLP130,NSP130..LHD..LOUNG201107-201407
FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL); HEATER CONTROL PANEL-MANUAL+PLATING
main55908-52130iKSP130,NLP130,NSP130..RHD..(ACTIV,STD,STYLE); KSP130,NLP130,NSP130..RHD..(ACTIV,STYLE); KSP130,NLP130,NSP130..RHD..LOUNG201107-201407
FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL); HEATER CONTROL PANEL-MANUAL+PLATING
55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL
main55909-52120iKSP130,NLP130,NSP130..ACTIV,STD,STYLE; KSP130,NLP130,NSP130..ACTIV,STYLE; KSP130,NLP130,NSP130..LOUNG201107-201407
FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL); HEATER CONTROL PANEL-MANUAL+PLATING
55910BBULB, HEATER CONTROL
main90010-01142iKSP130,NLP130,NSP130..ACTIV,STD,STYLE; KSP130,NLP130,NSP130..ACTIV,STYLE; KSP130,NLP130,NSP130..LOUNG; KSP130,NSP130..LHD..(ACTIV,STYLE); KSP130,NSP130..LHD..LOUNG; NLP130..LHD..(ACTIV,STYLE); NLP130..LHD..LOUNG201107
COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL); COLD SPEC & WITH(REAR HEATER DUCT)&HEATER CONTROL PANEL-MANUAL+PLATING&FRONT AIR CONDITIONER-DEALER OPTION; COLD SPEC & WITH(REAR HEATER DUCT)&HEATER CONTROL PANEL-MANUAL+PLATING&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)); COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL); COLD SPEC & WITHOUT(REAR HEATER DUCT)&HEATER CONTROL PANEL-MANUAL+PLATING&FRONT AIR CONDITIONER-DEALER OPTION; COLD SPEC & WITHOUT(REAR HEATER DUCT)&HEATER CONTROL PANEL-MANUAL+PLATING&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY)); FRONT AIR CONDITIONER-AUTO(DUAL MODE CONTROL); HEATER CONTROL PANEL-MANUAL+PLATING&FRONT AIR CONDITIONER-DEALER OPTION; HEATER CONTROL PANEL-MANUAL+PLATING&FRONT AIR CONDITIONER-WITHOUT(UNIT(W/H ONLY))
9 parts on this diagram · 6 diagrams in section
