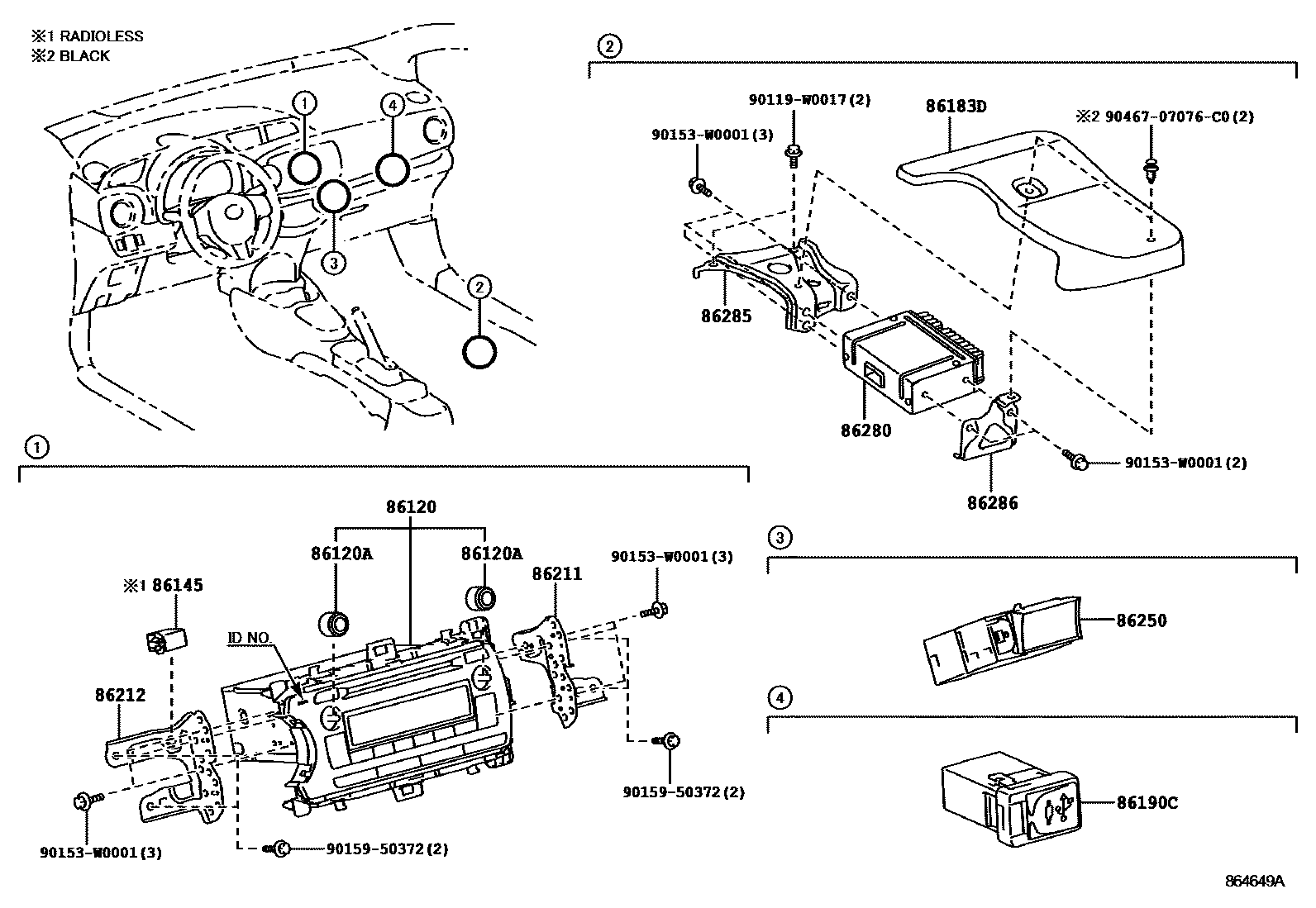

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1CONDENSER 0004 1CONDENSER

86120RECEIVER ASSY, RADIO

main86120-0D640iKSP130,NLP130,NSP130..LHD..STD201107

PANASONIC,ID=53864

main86120-0D640iKSP130,NLP130,NSP130..LHD..STD201107

PANASONIC,ID=53864,AUDIO-CD 6SPEAKER WITHOUT(BLUETOOTH)

main86120-0D650iKSP130,NLP130,NSP130..RHD..STD201107

PANASONIC,ID=53865

main86120-0D650iKSP130,NLP130,NSP130..RHD..STD201107

PANASONIC,ID=53865,AUDIO-CD 6SPEAKER WITHOUT(BLUETOOTH)

86120AKNOB, RADIO RECEIVER SWITCH

main90010-24149iKSP130,NLP130,NSP130..STD201107

AUDIO-CD 6SPEAKER WITHOUT(BLUETOOTH)

86145CONNECTOR, ANTENNA MALE

main86145-52010

86183DCOVER, AUDIO AMPLIFIER

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-0D030iKSP130,NHP130,NLP130,NSP130201107-201303

main86190-0D070iKSP130,NHP130,NLP130,NSP130201303

AUDIO-LESS(AUDIO & SPEAKER)

86211BRACKET, RADIO, NO.1

main86211-0D130iKSP130,NHP130,NLP130,NSP130201107-201407

86212BRACKET, RADIO, NO.2

main86212-0D130iKSP130,NHP130,NLP130,NSP130201107-201407

86250MICROPHONE ASSY, AMPLIFIER

main86250-0D010iKSP130,NHP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE)201107

AUDIO-RADIO LESS 6SPEAKER

main86250-0D010iKSP130,NHP130,NLP130,NSP130..LHD..(ACTIV,LOUNG,STYLE)201107

AUDIO-CD 6SPEAKER WITHOUT(BLUETOOTH)

main86250-0D020iKSP130,NHP130,NLP130,NSP130..RHD..(ACTIV,LOUNG,STYLE)201107

AUDIO-RADIO LESS 6SPEAKER

main86250-0D020iKSP130,NHP130,NLP130,NSP130..RHD..(ACTIV,LOUNG,STYLE)201107

AUDIO-CD 6SPEAKER WITHOUT(BLUETOOTH)

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-0D010

86285BRACKET, AMPLIFIER, NO.1

main86285-0D010

86286BRACKET, AMPLIFIER, NO.2

main86286-0D010

90119W0017

main90119-W0017

90153W0001

main90153-W0001

9015950372

main90159-50372

9046707076C0

main90467-07076C0

15 parts on this diagram · 4 diagrams in section
