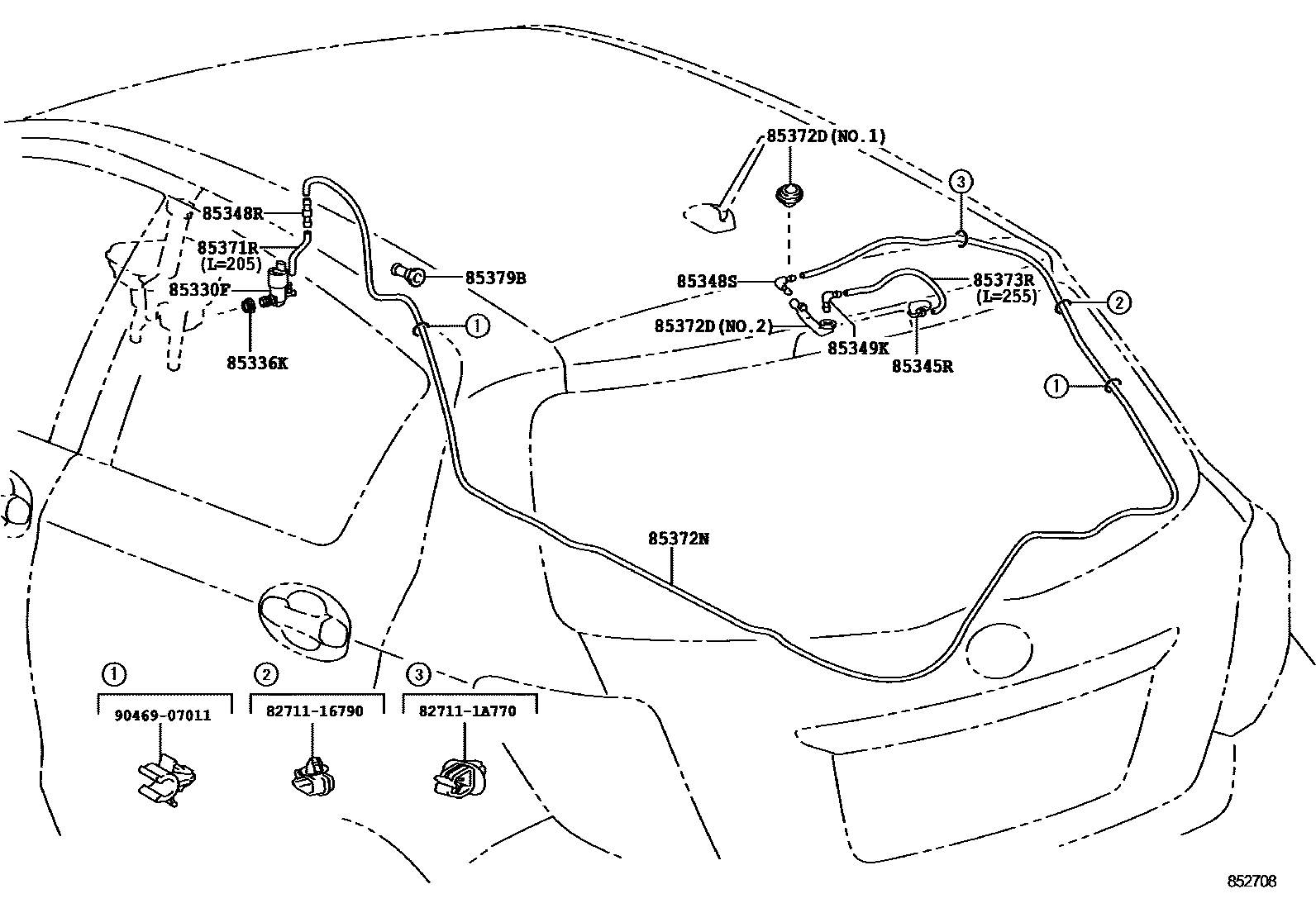

REAR WASHER
85330FMOTOR & PUMP ASSY, RR WASHER
85336KPROTECTOR, WASHER JAR
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85349KJOINT, REAR WASHER ELBOW, NO.2
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
*318:REFER ILLUST.
85372DGROMMET, REAR WASHER HOSE
NO.2
NO.1
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
L=4548
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
*318:REFER ILLUST.
85379BGROMMET, WASHER, A
8271116790WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16790
827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1A770
9046907011
main90469-07011
14 parts on this diagram · 1 diagram in section
