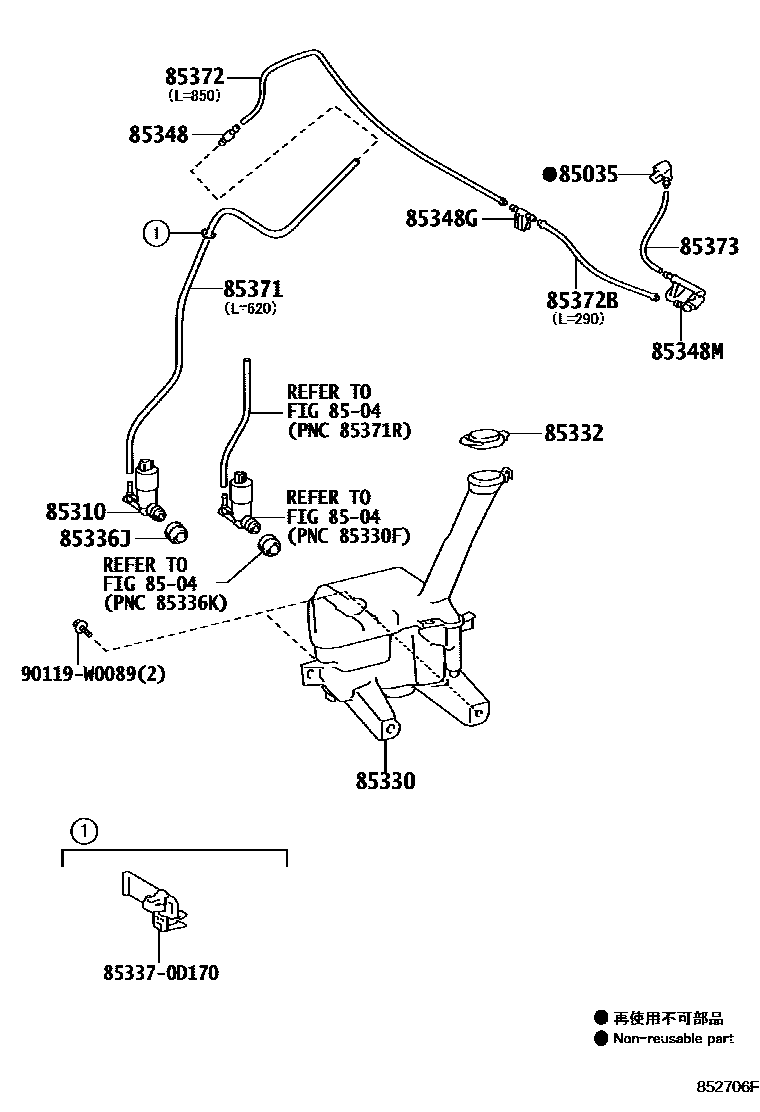

WINDSHIELD WASHER

0001 1W(REAR WASHER) 0002 1W(REAR WASHER)

85035NOZZLE SUB-ASSY, WASHER

main85381-52410iKSP130,NHP130,NLP130,NSP130..LHD201107

main85381-52420iKSP130,NHP130,NLP130,NSP130..RHD201107

8504REAR WASHER

→ Go to FIG 85-04

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-0D120iKSP130,NHP130,NLP130,NSP130201107

85330JAR ASSY, WINDSHIELD WASHER

main85315-0D170iKSP130,NHP130,NLP130,NSP130201107

85332CAP, WINDSHIELD WASHER JAR

main85316-0D170iKSP130,NHP130,NLP130,NSP130201107

85336JPROTECTOR, WASHER JAR

main85336-0D170iKSP130,NHP130,NLP130,NSP130201107

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85375-0D260iKSP130,NHP130,NLP130,NSP130..LHD201107

main85375-52190iKSP130,NHP130,NLP130,NSP130..RHD201107

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85377-0D260iKSP130,NHP130,NLP130,NSP130..LHD201107

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85385-52200iKSP130,NHP130,NLP130,NSP130..LHD201107

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90069-46057iKSP130,NHP130,NLP130,NSP130201107-201407

*318:REFER ILLUST.

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90069-46057iKSP130,NHP130,NLP130,NSP130..LHD201107-201407

*318:REFER ILLUST.

main90099-33080iKSP130,NHP130,NLP130,NSP130..RHD201107-201407

L=1450(*H,L=360)

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90069-46058iKSP130,NHP130,NLP130,NSP130..LHD201107-201407

*318:REFER ILLUST.

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iKSP130,NHP130,NLP130,NSP130201107-201306

L=1450(*H,L=150)

853370D170CASE, LEVEL WARNING SWITCH

main85337-0D170

90119W0089

main90119-W0089

15 parts on this diagram · 2 diagrams in section
