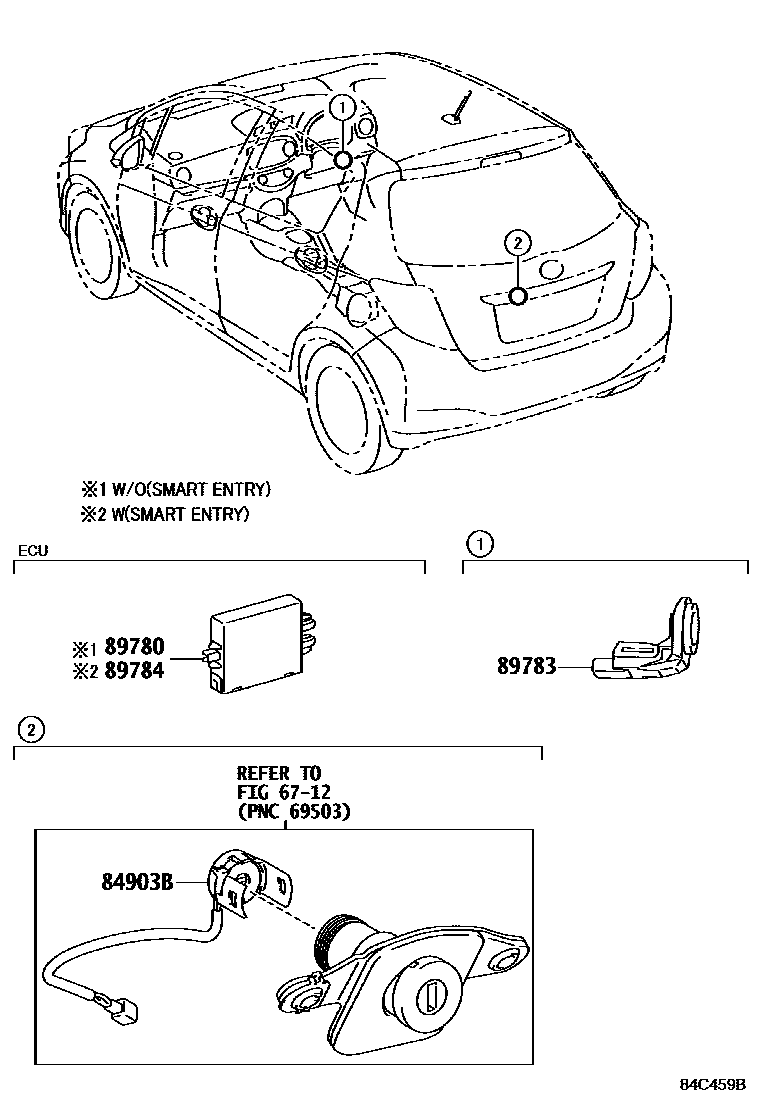

ANTI-THEFT DEVICE
6712LOCK CYLINDER SET
84903BSWITCH SUB-ASSY, DOOR UNLOCK
89780COMPUTER ASSY, TRANSPONDER KEY
main89780-0D050iNHP130..ACTIV;KSP130,NLP130,NSP130; NHP130..ACTIV;KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE201107
WIRELESS DOOR LOCK-WITH(SMART ENTRY)
89783AMPLIFIER, TRANSPONDER KEY
main89783-0D050iNHP130..ACTIV;KSP130,NLP130,NSP130; NHP130..ACTIV;KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE201107-201302
WIRELESS DOOR LOCK-WITH(SMART ENTRY)
main89783-0D051iNHP130..ACTIV; NHP130..ACTIV;KSP130,NLP130,NSP130; NHP130..ACTIV;KSP130,NLP130,NSP130..ACTIV,LOUNG,STYLE201303
WIRELESS DOOR LOCK-WITH(PUSH START); WIRELESS DOOR LOCK-WITH(SMART ENTRY)
89784COMPUTER, IMMOBILIZER CODE
WIRELESS DOOR LOCK-WITH(2 TRANSMITTER); WIRELESS DOOR LOCK-WITH(PUSH START)
5 parts on this diagram · 2 diagrams in section
