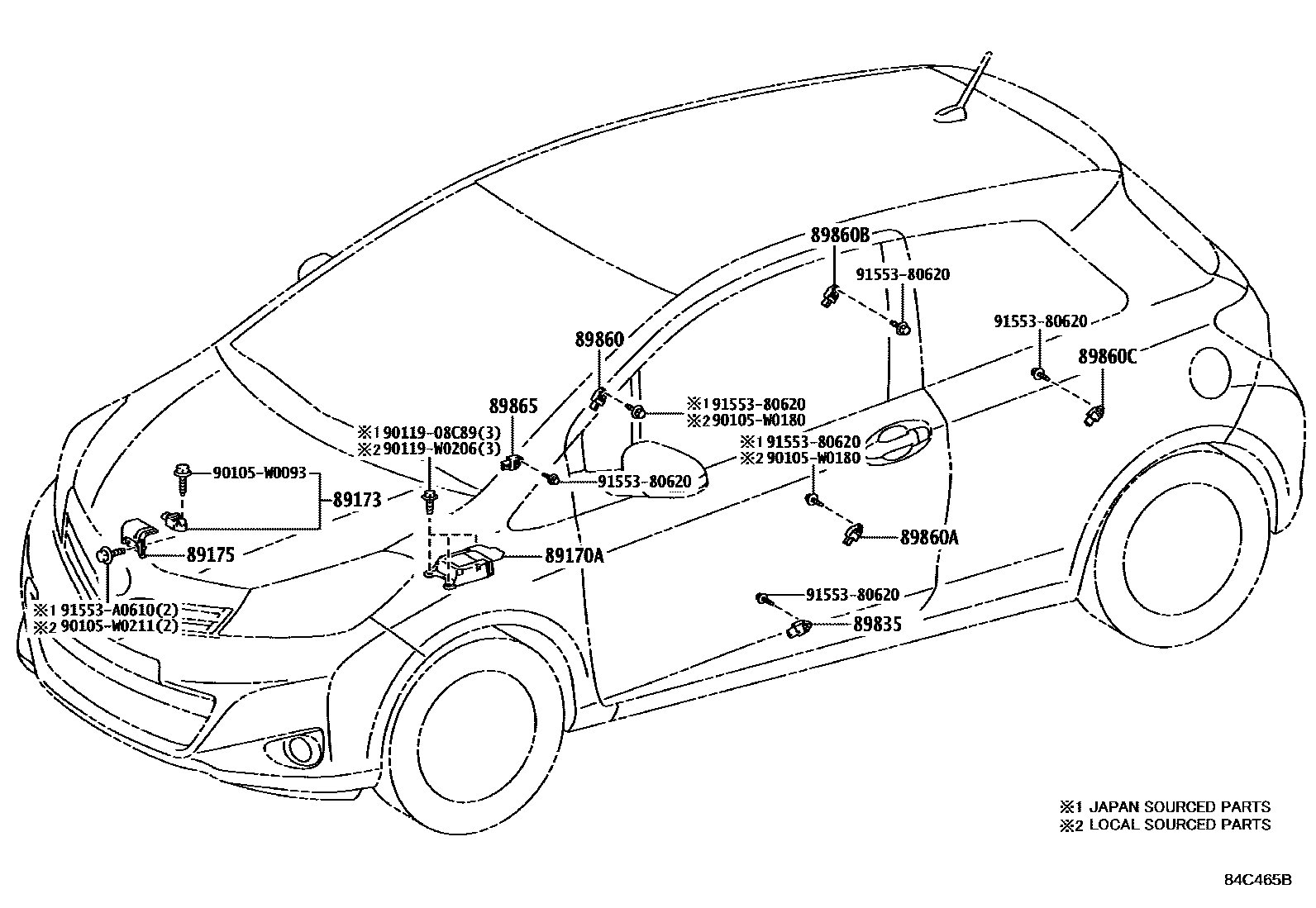

AIR BAG
89170ACOMPUTER ASSY, AIRBAG
main89170-0D340iKSP130,NLP130..LHD..5D..(5F,6F); KSP130..5D;NLP130..LHD..5D..6F; KSP130..LHD..5D; KSP130..RHD..5D; NSP130..5D; NSP130..LHD..5D; NSP130..RHD..5D..6F; NSP130..RHD..5D..CVFC201107-201109
ISRAEL SPEC&VSC-WITHOUT; ISRAEL SPEC&WITHOUT(STOP & START SYSTEM)&VSC-WITHOUT; REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&SOUTH AFRICA SPEC&WITHOUT(STOP & START SYSTEM)&VSC-WITHOUT; REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&VSC-WITHOUT; REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&WITHOUT(STOP & START SYSTEM)&VSC-WITHOUT; REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&VSC-WITHOUT; REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&WITHOUT(STOP & START SYSTEM)&VSC-WITHOUT; TURKEY SPEC&VSC-WITHOUT; TURKEY SPEC&WITHOUT(STOP & START SYSTEM)&VSC-WITHOUT
main89170-0D520iKSP130,NLP130..LHD..3D..(5F,6F); KSP130..3D;NLP130..LHD..3D..6F; KSP130..LHD..3D; KSP130..RHD..3D; NSP130..3D; NSP130..LHD..3D; NSP130..RHD..3D..6F; NSP130..RHD..3D..CVFC201107-201109
ISRAEL SPEC&VSC-WITHOUT; ISRAEL SPEC&WITHOUT(STOP & START SYSTEM)&VSC-WITHOUT; REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&SOUTH AFRICA SPEC&WITHOUT(STOP & START SYSTEM)&VSC-WITHOUT; REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&VSC-WITHOUT; REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&WITHOUT(STOP & START SYSTEM)&VSC-WITHOUT; REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&VSC-WITHOUT; REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&WITHOUT(STOP & START SYSTEM)&VSC-WITHOUT; TURKEY SPEC&VSC-WITHOUT; TURKEY SPEC&WITHOUT(STOP & START SYSTEM)&VSC-WITHOUT
SRS AIR BAG-WITH(*DRS & *PAS & SIDE)
89173SENSOR, AIRBAG, FRONT
(L)
(J)
89175BRACKET, AIRBAG SENSOR
89835SENSOR, DOOR SIDE AIRBAG, LH
89860SENSOR ASSY, SIDE AIRBAG, RH
(L)
89860ASENSOR ASSY, SIDE AIRBAG, LH
(L)
89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2
main89831-0D090iKSP130,NLP130,NSP130; KSP130,NLP130,NSP130..5F,6F,CVFC; KSP130,NLP130..LHD..(5F,6F); KSP130,NSP130..RHD; KSP130..LHD; KSP130;NLP130..LHD..6F; NSP130; NSP130..LHD; NSP130..RHD; NSP130..RHD..CVFC201107
ISRAEL SPEC&VSC-WITHOUT; ISRAEL SPEC&WITHOUT(STOP & START SYSTEM)&VSC-WITHOUT; REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&SOUTH AFRICA SPEC&WITHOUT(STOP & START SYSTEM)&VSC-WITHOUT; REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&VSC-WITHOUT; REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&WITHOUT(STOP & START SYSTEM)&VSC-WITHOUT; REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&VSC-WITHOUT; REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&WITHOUT(STOP & START SYSTEM)&VSC-WITHOUT; TURKEY SPEC&VSC-WITHOUT; TURKEY SPEC&WITHOUT(STOP & START SYSTEM)&VSC-WITHOUT; VSC-WITHOUT; WITHOUT(STOP & START SYSTEM)&VSC-WITHOUT
(L); REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE,(L); REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA),(L); SRS AIR BAG-WITH(*DRS & *PAS & SIDE),(L)
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE; REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA); SRS AIR BAG-WITH(*DRS & *PAS & SIDE)
89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2
main89831-0D090iKSP130,NLP130,NSP130; KSP130,NLP130,NSP130..5F,6F,CVFC; KSP130,NLP130..LHD..(5F,6F); KSP130,NSP130..RHD; KSP130..LHD; KSP130;NLP130..LHD..6F; NSP130; NSP130..LHD; NSP130..RHD; NSP130..RHD..CVFC201107
ISRAEL SPEC&VSC-WITHOUT; ISRAEL SPEC&WITHOUT(STOP & START SYSTEM)&VSC-WITHOUT; REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&SOUTH AFRICA SPEC&WITHOUT(STOP & START SYSTEM)&VSC-WITHOUT; REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&VSC-WITHOUT; REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&WITHOUT(STOP & START SYSTEM)&VSC-WITHOUT; REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&VSC-WITHOUT; REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA)&WITHOUT(STOP & START SYSTEM)&VSC-WITHOUT; TURKEY SPEC&VSC-WITHOUT; TURKEY SPEC&WITHOUT(STOP & START SYSTEM)&VSC-WITHOUT; VSC-WITHOUT; WITHOUT(STOP & START SYSTEM)&VSC-WITHOUT
(L); REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE,(L); REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA),(L); SRS AIR BAG-WITH(*DRS & *PAS & SIDE),(L)
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE; REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE(EXCEPT WVTA); SRS AIR BAG-WITH(*DRS & *PAS & SIDE)
89865SENSOR, DOOR SIDE AIRBAG, RH
90105W0093
main90105-W0093
90105W0180
main90105-W0180
90105W0211
main90105-W0211
9011908C89
main90119-08C89
90119W0206
main90119-W0206
9155380620
main91553-80620
91553A0610
main91553-A0610
16 parts on this diagram · 1 diagram in section
