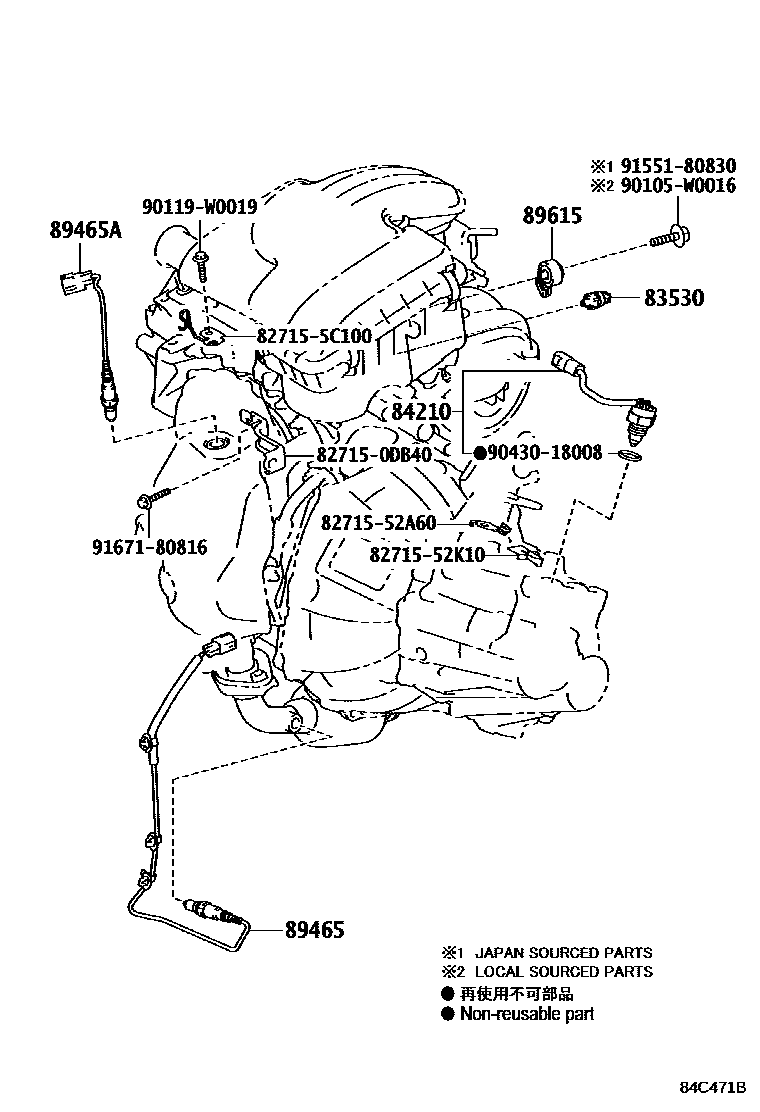

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE & TRANSMISSION 0003 1ENGINE & TRANSMISSION 0004 1ENGINE & TRANSMISSION 0005 1ENGINE ROOM 0006 1ENGINE ROOM 0007 1ENGINE ROOM RELAY BLOCK 0008 1ENGINE ROOM RELAY BLOCK 0009 1COWL 0010 1COWL 0011 1INSTRUMENT PANEL 0012 1INSTRUMENT PANEL 0013 1STEERING 0014 1DOOR,ROOF,FLOOR & BACK DOOR

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-05010iKSP130,NHP130,NSP130201107

VALEO

main83530-28020iKSP130,NHP130,NSP130201107

DENSO

main83530-60020iKSP130,NHP130,NSP130201107

YAZAKI

84210SWITCH ASSY, BACK-UP LAMP

main84210-12040iNLP130,NSP130..MTM201107-201204

sub84210-52050

main84210-52030iKSP130201107-201407

sub84210-K0010

main84210-52050iNLP130,NSP130..MTM201205-201407

89465SENSOR, OXYGEN

main89465-0D130iKSP130201107

main89465-52540iNSP130201107

main89465-52670iNHP130201204

89465ASENSOR, OXYGEN NO.2

main89465-0H010iKSP130201107

89615SENSOR, KNOCK CONTROL

main89615-0H010iKSP130201107

main89615-20090iNHP130,NSP130201107

827150DB40BRACKET,WIRING HARNESS CLAMP

main82715-0DB40

8271552A60BRACKET,WIRING HARNESS CLAMP

main82715-52A60

8271552K10BRACKET,WIRING HARNESS CLAMP

main82715-52K10

827155C100BRACKET,WIRING HARNESS CLAMP

main82715-5C100

90105W0016

main90105-W0016

90119W0019

main90119-W0019

9043018008

main90430-18008

9155180830

main91551-80830

9167180816

main91671-80816

14 parts on this diagram · 14 diagrams in section
