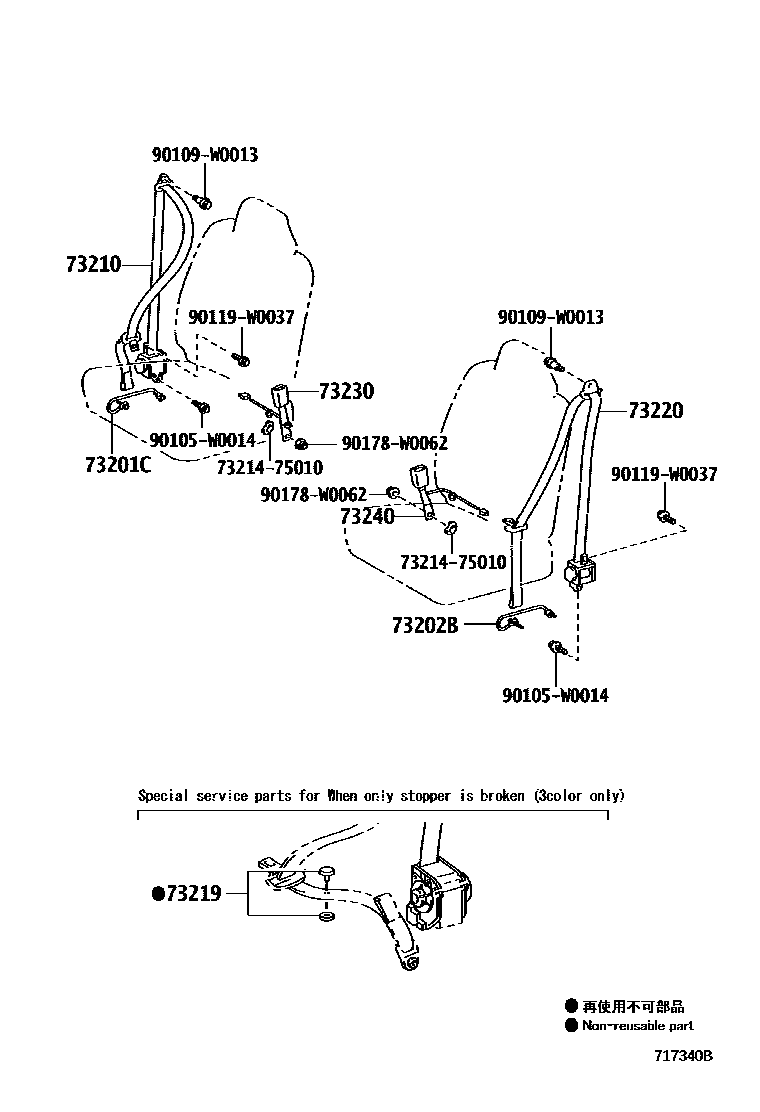

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT 0002 1FRONT SEAT 0003 1REAR SEAT

73201CBAR SUB-ASSY, FRONT SEAT BELT, OUTER RH

main73201-0D020-B0iKSP130,NLP130,NSP130..3D201107-201407

DK.GRAY

73202BBAR SUB-ASSY, FRONT SEAT BELT, OUTER LH

main73202-0D020-B0iKSP130,NLP130,NSP130..3D201107-201407

DK.GRAY

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-0D300-C0iKSP130,NLP130,NSP130..3D201107-201212

BLACK,TRIM1#

main73210-0D301-C0iKSP130,NLP130,NSP130..3D201301-201407

BLACK,TRIM1#

main73210-0D320-C0iKSP130,NHP130,NLP130,NSP130..5D201107-201212

BLACK,TRIM1#

main73210-0D321-C0iKSP130,NLP130,NSP130..5D..(5F,6F,CVFC)..ACTIV201301-201407

BLACK,TRIM1#

main73210-0D321-C0iKSP130,NLP130,NSP130..5D..(5F,6F,CVFC)..ACTIV201301-201407

BLACK,TRIM11

main73210-0D321-C2iKSP130,NLP130,NSP130..5D..(5F,6F,CVFC)..ACTIV201301-201407

GRAY,TRIM13,14,15

73219STOPPER, TONGUE PLATE

main73219-33010iKSP130,NHP130,NLP130,NSP130201107

BLACK

main73219-33020iKSP130,NHP130,NLP130,NSP130201107

GRAY

main73219-33030iKSP130,NHP130,NLP130,NSP130201107

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-0D290-C0iKSP130,NLP130,NSP130..3D201107-201212

BLACK,TRIM1#

main73220-0D291-C0iKSP130,NLP130,NSP130..3D201301-201407

BLACK,TRIM1#

main73220-0D310-C0iKSP130,NHP130,NLP130,NSP130..5D201107-201212

BLACK,TRIM1#

main73220-0D311-C0iNHP130,NLP130..5D..(6FS,CVFC);KSP130,NLP130,NSP130..5D..(5F,6F,CVFC)..(LOUNG,STD,STYLE)201301-201407

BLACK,TRIM11

main73220-0D311-C0iNHP130,NLP130..5D..(6FS,CVFC);KSP130,NLP130,NSP130..5D..(5F,6F,CVFC)..(LOUNG,STD,STYLE)201301-201407

BLACK,TRIM1#

main73220-0D311-C2iKSP130,NLP130,NSP130..5D..(5F,6F,CVFC)..ACTIV201301-201407

GRAY,TRIM13,14,15

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-0D330-C0iKSP130,NHP130,NLP130,NSP130..RHD201107-201407

BLACK,TRIM1#

main73230-0D340-C0iKSP130,NHP130,NLP130,NSP130..LHD..5D..(LOUNG,STYLE)201107-201407

BLACK,TRIM1#

main73230-0D370-C0iKSP130,NHP130,NLP130,NSP130..LHD..5D..(LOUNG,STYLE)201107-201303

BLACK,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-0D330-C0iKSP130,NHP130,NLP130,NSP130..LHD201107-201407

BLACK,TRIM1#

main73230-0D370-C0iKSP130,NHP130,NLP130,NSP130..RHD..5D..(LOUNG,STYLE)201107-201303

BLACK,TRIM1#

main73230-0D420-C0iKSP130,NHP130,NLP130,NSP130..RHD..5D..(LOUNG,STYLE)201107-201407

BLACK,TRIM1#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

90105W0014

main90105-W0014

90109W0013

main90109-W0013

90119W0037

main90119-W0037

90178W0062

main90178-W0062

12 parts on this diagram · 3 diagrams in section
