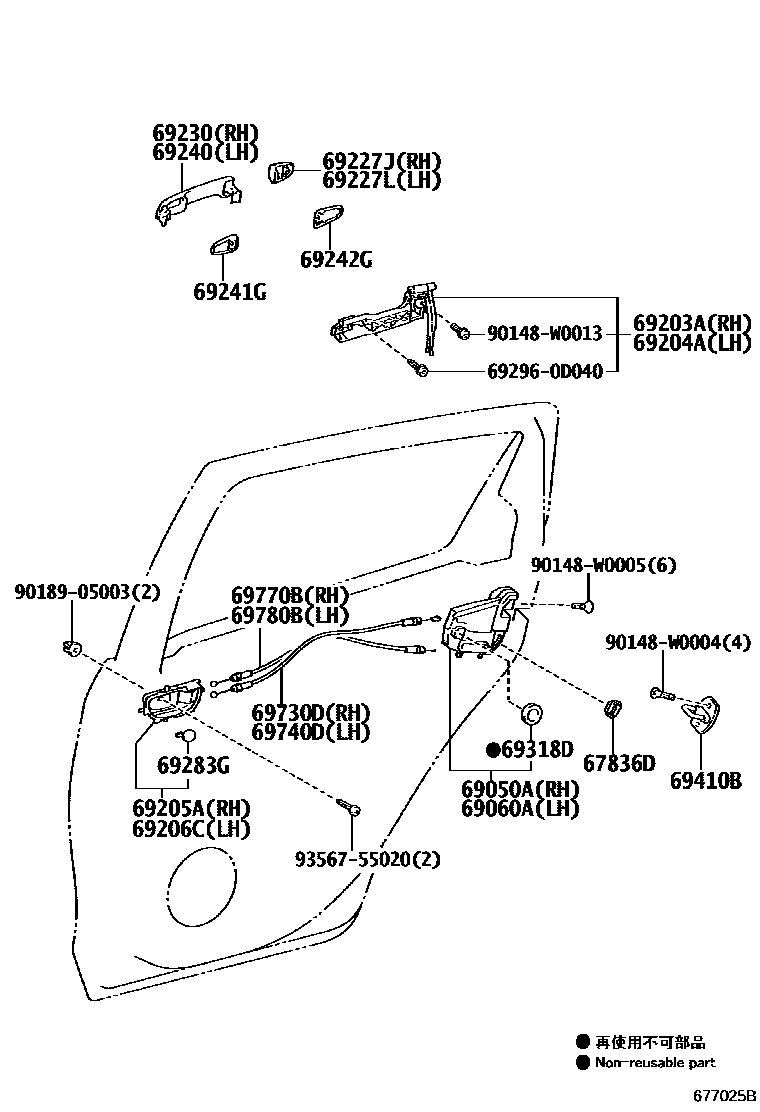

REAR DOOR LOCK & HANDLE
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
main69050-0D110iNHP130;NLP130..LHD..5D;NLP130..RHD..5D..STD;KSP130,NSP130..5D..STD;KSP130,NSP130..LHD..5D..(ACTIV,LOUNG,STYLE)201107
WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)
POWER DOOR LOCK-WITH(DRIVER:DOUBLE LOCK)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
main69060-0D110iNHP130;NLP130..LHD..5D;NLP130..RHD..5D..STD;KSP130,NSP130..5D..STD;KSP130,NSP130..LHD..5D..(ACTIV,LOUNG,STYLE)201107
WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)
POWER DOOR LOCK-WITH(DRIVER:DOUBLE LOCK)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
BLACK,TRIM1#
sub69205-0D201
HV ENTRY PACKAGE,BLACK,TRIM1#
BLACK,TRIM1#
ENTRY GRADE,BLACK,TRIM1#
HV SIMPLE PACKAGE,BLACK,TRIM1#
BLACK,TRIM1#
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
ENTRY GRADE,BLACK,TRIM1#
BLACK,TRIM1#
HV SIMPLE PACKAGE,BLACK,TRIM1#
HV ENTRY PACKAGE,BLACK,TRIM1#
BLACK,TRIM1#
sub69206-0D281
BLACK,TRIM1#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
BLACK
BLACK,ENTRY GRADE
LESS COLOR
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
BLACK
BLACK,ENTRY GRADE
LESS COLOR
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
NO PAINT REQ.,ENTRY GRADE
NO PAINT REQ.
PAINT REQ.
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
NO PAINT REQ.
NO PAINT REQ.,ENTRY GRADE
PAINT REQ.
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
69283GPLUG, REAR DOOR INSIDE HANDLE BEZEL
EU BLACK,TRIM1#
69318DSEAL, DOOR LOCK WIRING HARNESS
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
692960D040SCREW, DOOR INSIDE HANDLE
main69296-0D040
90148W0004
main90148-W0004
90148W0005
main90148-W0005
90148W0013
main90148-W0013
9018905003
main90189-05003
9356755020
main93567-55020
26 parts on this diagram · 1 diagram in section
