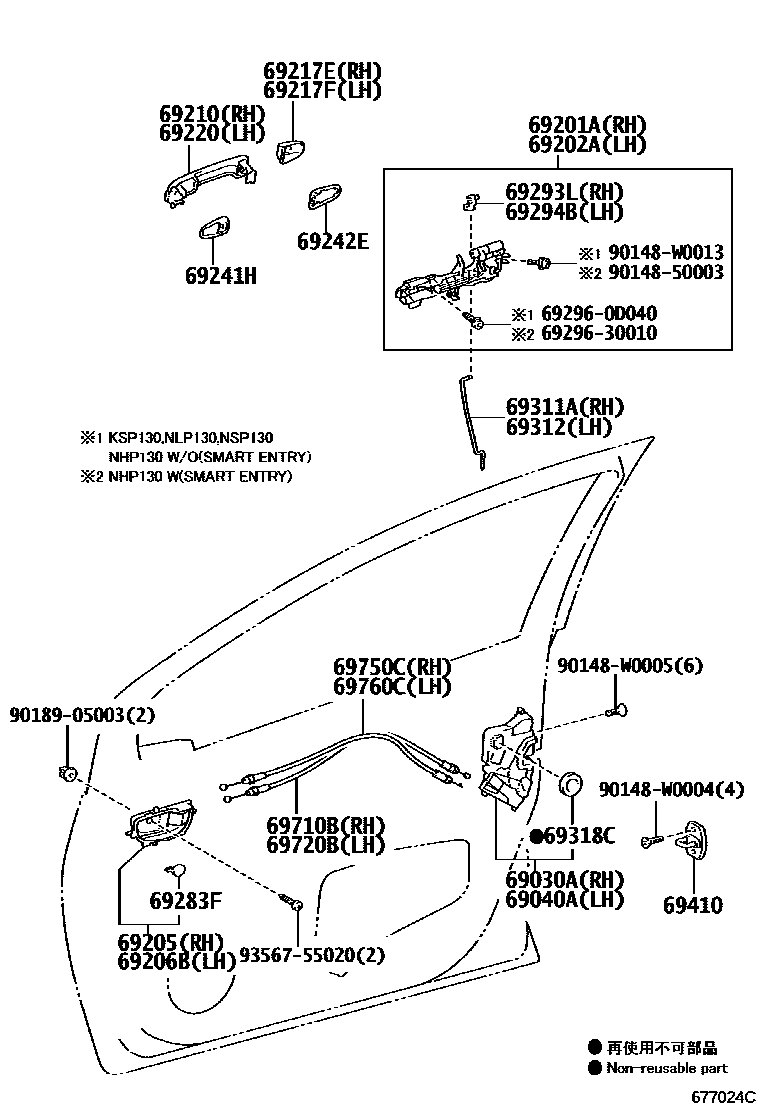

FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)
POWER DOOR LOCK-WITH(DRIVER:DOUBLE LOCK)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
POWER DOOR LOCK-WITH(DRIVER:DOUBLE LOCK)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
main69201-0D050iNHP130;NLP130..LHD;NLP130..RHD..STD;KSP130,NSP130..STD;KSP130,NSP130..LHD..(ACTIV,LOUNG,STYLE)201107
WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)
main69201-0D050iNHP130;NLP130..LHD;NLP130..RHD..STD;KSP130,NSP130..STD;KSP130,NSP130..LHD..(ACTIV,LOUNG,STYLE)201107
ENTRY GRADE&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)
POWER DOOR LOCK-WITH(DRIVER:DOUBLE LOCK)&WIRELESS DOOR LOCK-WITH(2 TRANSMITTER)
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM1#
sub69205-0D201
HV ENTRY PACKAGE,BLACK,TRIM1#
BLACK,TRIM1#
ENTRY GRADE,BLACK,TRIM1#
HV SIMPLE PACKAGE,BLACK,TRIM1#
BLACK,TRIM1#
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
HV SIMPLE PACKAGE,BLACK,TRIM1#
BLACK,TRIM1#
ENTRY GRADE,BLACK,TRIM1#
HV ENTRY PACKAGE,BLACK,TRIM1#
BLACK,TRIM1#
sub69206-0D281
BLACK,TRIM1#
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
NO PAINT REQ.,ENTRY GRADE
NO PAINT REQ.,ENTRY GRADE&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)
NO PAINT REQ.
PAINT REQ.
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
BLACK,ENTRY GRADE&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)
BLACK
BLACK,ENTRY GRADE
LESS COLOR
LESS COLOR
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
BLACK
BLACK,ENTRY GRADE
LESS COLOR
LESS COLOR
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
NO PAINT REQ.
NO PAINT REQ.,ENTRY GRADE
NO PAINT REQ.,ENTRY GRADE&WIRELESS DOOR LOCK-WITH(1 TRANSMITTER)
PAINT REQ.
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
69283FPLUG, FRONT DOOR INSIDE HANDLE BEZEL
EU BLACK,TRIM1#
69293LSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
692960D040SCREW, DOOR INSIDE HANDLE
main69296-0D040
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
90148W0004
main90148-W0004
90148W0005
main90148-W0005
90148W0013
main90148-W0013
9018905003
main90189-05003
9356755020
main93567-55020
31 parts on this diagram · 1 diagram in section
